Warning
Installation and maintenance of the unit must to be performed only by qualified personnel who have knowledge with
local
codes and regulations, and experience with this type of equipment. Must be avoided the unit installation in places that could
be
considered dangerous for all the maintenance operations.
Handling
Care should be taken to avoid rough handling or shock
due to dropping the unit. Do not push or pull the unit from
anything other than the base frame. Never allow the unit to fall during unloading or moving as this may result in serious dam
age. To
lift the unit, rings are provided in the base frame of the unit
. Spreader bar and cables should be arranged to prevent damage to the
condenser coil or unit cabinet.
Location
The units are produced for outside installation on roofs, floors or below ground level on condition that the area is free fro
m
obstacles for the
installation on roofs or floors, it may be advisable to arrange the use of suitable weight distribution beams. When the units are installed
on the ground, a concrete base at least 250 mm wider and longer than the unit’s footprint should be laid. Furthermore, this b
ase should
withstand the unit weight mentioned in the technical data table.
Space requirements
The units are air-cooled, then it i
s important to respect the minimum distances which guarantee the best
ventilation of the condenser coils. Limitations of space reducing the air flow could cause significant reductions in cooling
capacity and an
increase in electricity consumption.
To deter
minate unit placement, careful consideration must be given to assure a sufficient air flow across the condenser heat transfer
surface. Two conditions must be avoided to achieve the best performance: warm air recirculation and coil starvation.
Both these conditions cause an increase of condensing pressures that results in reductions in unit efficiency and capacity.
Moreover the unique microprocessor has the ability to calculate the operating environment of the air cooled chiller and the c
apacity to
optimize its performance staying on-line during abnormal conditions.

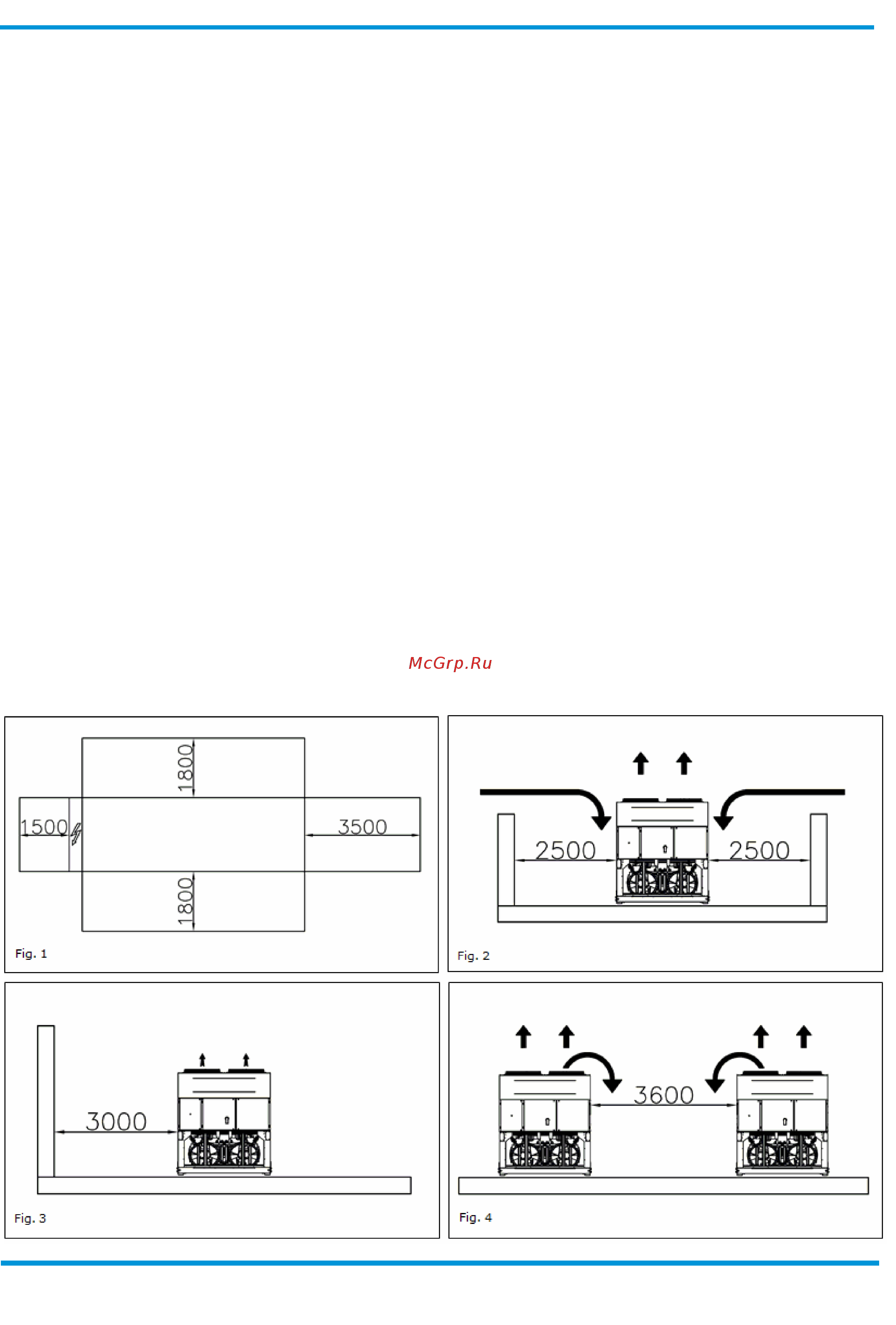

Each side of the unit must be accessible after installation for periodic service. Fig.1 shows you minimum recommended clearan
ce
requirements.
Vertical condenser air discharge must be unobstructed because the unit would have its capacity and efficiency significantly reduced.
If the units are positioned in places surrounded by walls or obstacles of the same height as the units, the units should be a
t least 2500
mm from obstacles (Fig.2). In the eve
nt the obstacles are higher than the units, the units should be at least 3000 mm from the
obstacle (Fig.3). Units installed closer than the minimum recommended distance to a wall or other vertical riser may experien
ce a
combination of coil starvation and w
arm air recirculation, thus causing reduction in unit capacity and efficiency reductions. The
microprocessor control is proactive in response “of design condition”. In the case of single or compounded influences restric
ting airflow
to the unit, the microprocessor will act to keep the compressor(s) running (at reduced capacity) rather than allowing a shut-
off on high
discharge pressure.
When two or more units are positioned side by side it is recommended that the condenser coils are at least 3600 mm distance
from one
another (Fig.4); strong wind could be the cause of air warm recirculation.
For other installation solutions, consult our technicians.
The above recommended information are representative of general installation. A specific evaluation should be d
one by contractor
depending on the case.
