-9-

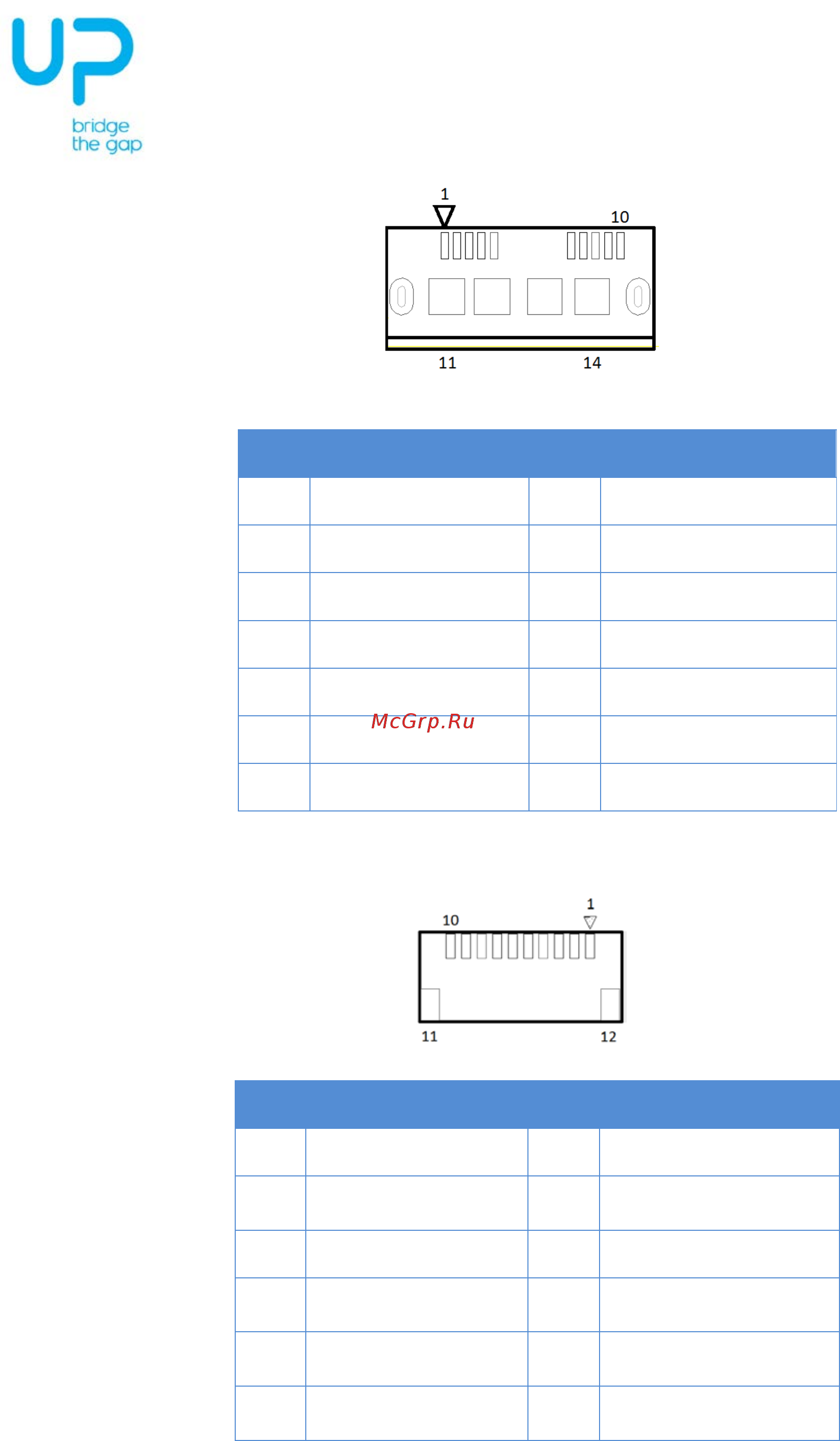

Pin Signal Description Pin Signal Description

1 USB_VCC 8 GND

2 USB2_D- 9 CROSSBAR_TX1_N

3 USB2_D+ 10 CROSSBAR_TX1_P

4 USB2_ID 11

GND

5 GND 12

GND

6 CROSSBAR_RX1_N 13

GND

7 CROSSBAR_RX1_P 14

GND

4.5 CN7: USB 2.0 1x10P Wafer

Pin Signal Description Pin Signal Description

1 USB_VCC 7 USB_HSIC_P4_D+

2 USB_HSIC_P3_D- 8

GND

3 USB_HSIC_P3_D+ 9 UART0_RXD

GND

10 UART0_TXD

5 USB_VCC 11

GND

6 USB_HSIC_P4_D- 12

GND

4.6 CN8: DUAL USB Type A Connector 1
