OLIMEX© 2015 A20-OLinuXino-MICRO user's manual
6.2.2 SD/MMC slot

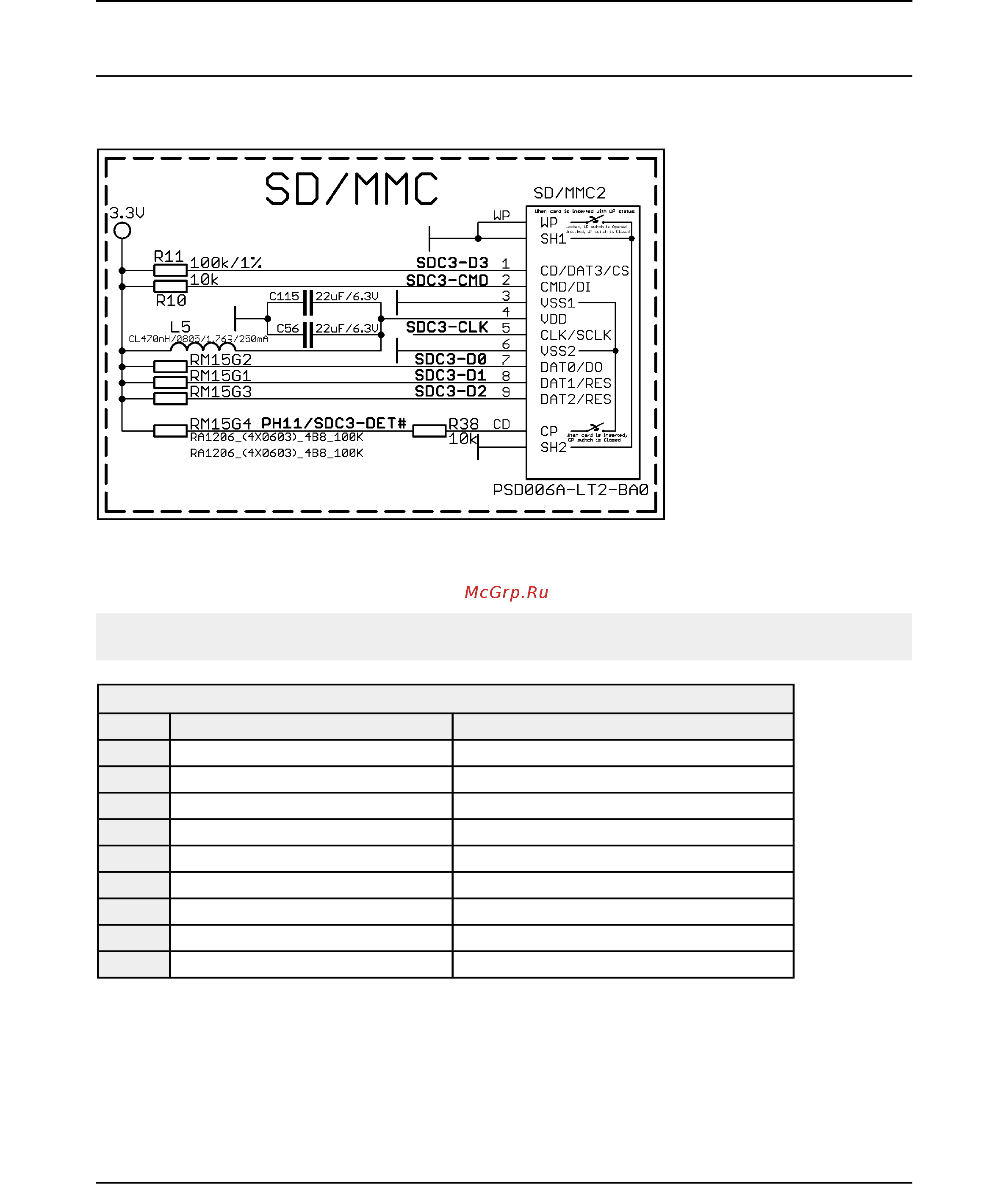

The schematic related to the SD/MMC1 (SD/MMC connector) is shown below:
The SD/MMC2 slot is located on the back of the PCB and works with the “larger” SD and MMC
cards. The connector was placed by a popular demand.
Note that by default this connector is not suitable for booting OS. Such support is possible but not
implemented in the official software releases.
SD/MMC card connector
Pin # Connector signal name Wire name (processor pin)
1 CD/DAT3/CS SDC3-D3 (B16)
2 CMD/DI SDC3-CMD (A18)
3 VSS1 -
4 VDD -
5 CLK/SCLK SDC3-CLK (B18)
6 VSS2 -
7 DAT0/DO SDC1-D0 (A17)
8 DAT1/RES SDC1-D1 (B17)
9 DAT2/RES SDC1-D2 (A16)
Additionally, there are the WP and CP switches that are responsible, respectively, for sensing
whether the card is locked for reading and whether there is a card inserted.
Page 29 of 55
