OLIMEX A20-MICRO-S16 [38/55] Sata connector and power

6.10 SATA connector and power

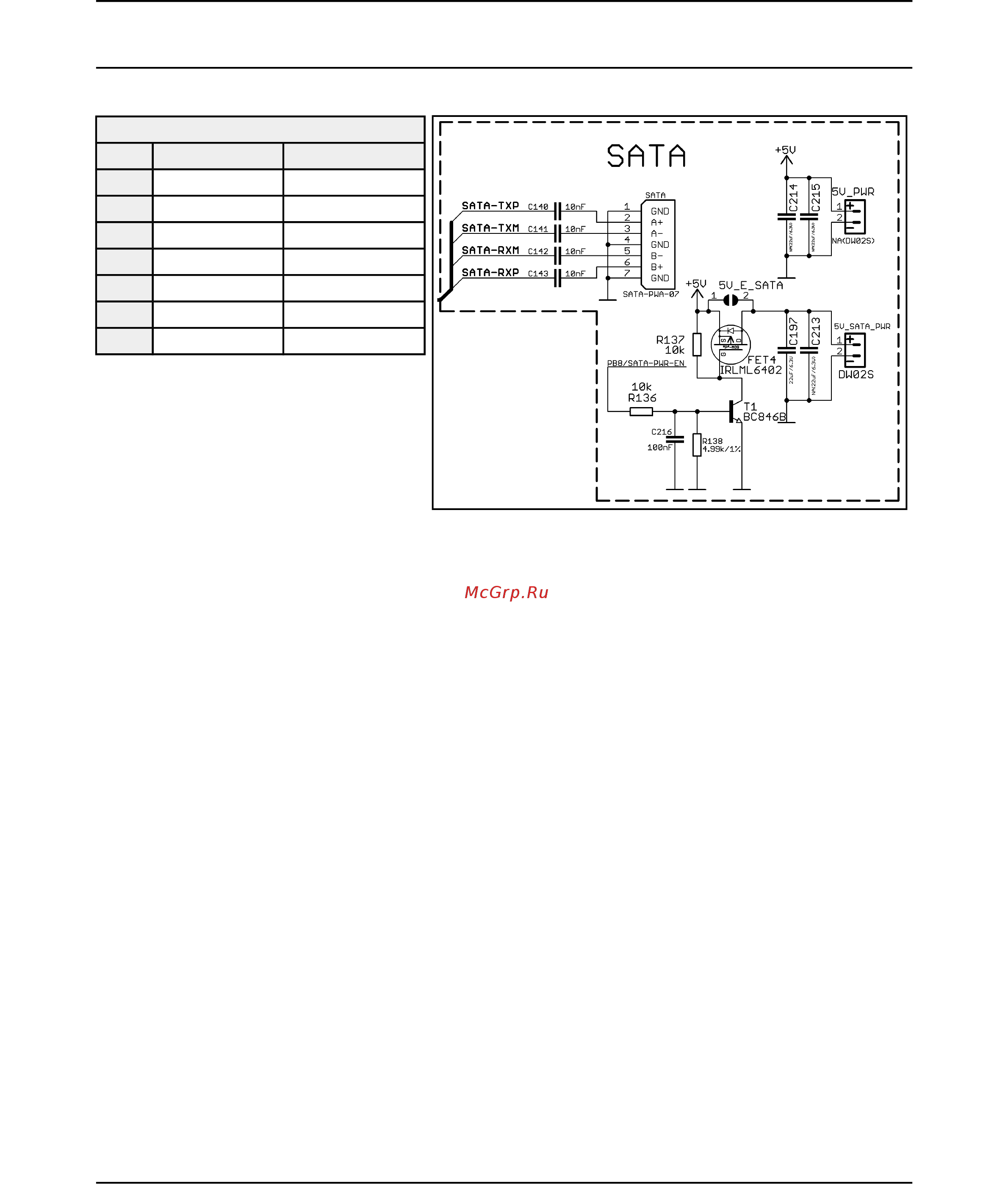

The part of the schematic describing the SATA module is shown below:

SATA connector

Pin # Signal name Processor pin

1 GND -

2 SATA-TXP T20

3 SATA-TXM T21

4 GND -

5 SATA-RXM U21

6 SATA-RXP U20

7 GND -

Page 38 of 55
