Fluke FLK-87VMAX-E2KIT [67/84] Automotive multimeter

Automotive Multimeter

MIN MAX

RANGE

REL

Hz %

AutoHOLD

COM

400mA

FUSED

10A MAX

FUSED

ayg20f.eps

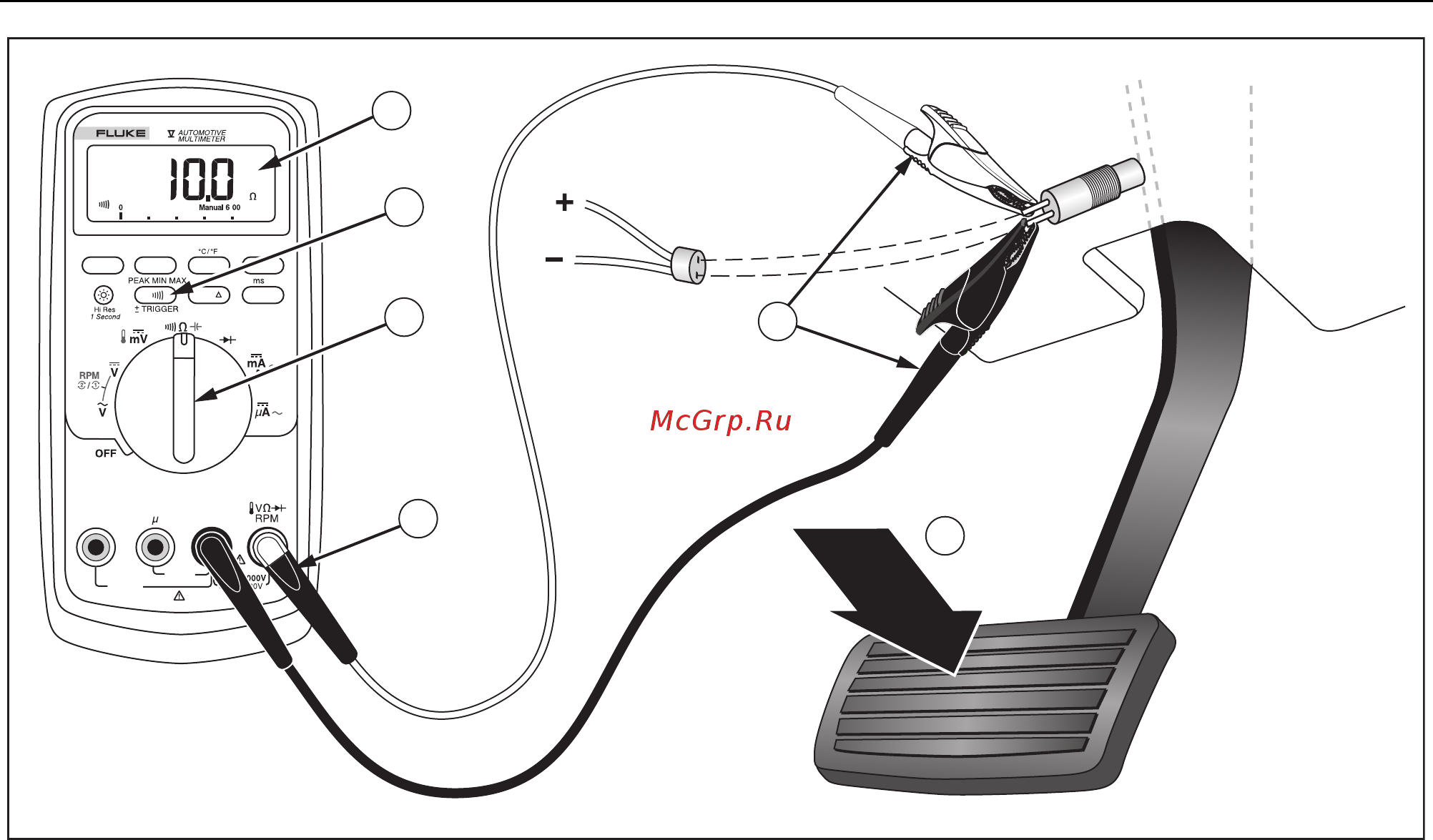

Figure 19. Testing for Continuity in a Switch

Using the Meter for Automotive Applications
