Daikin EUWY035BZ6Y [31/52] Piping diagram
![Daikin EUWY030BZ6Y [31/52] Piping diagram](/views2/1665096/page31/bg1f.png)
1
7
• Applied Systems • Chillers
33
• Chillers • R-407C • EUWY-BZ6Y

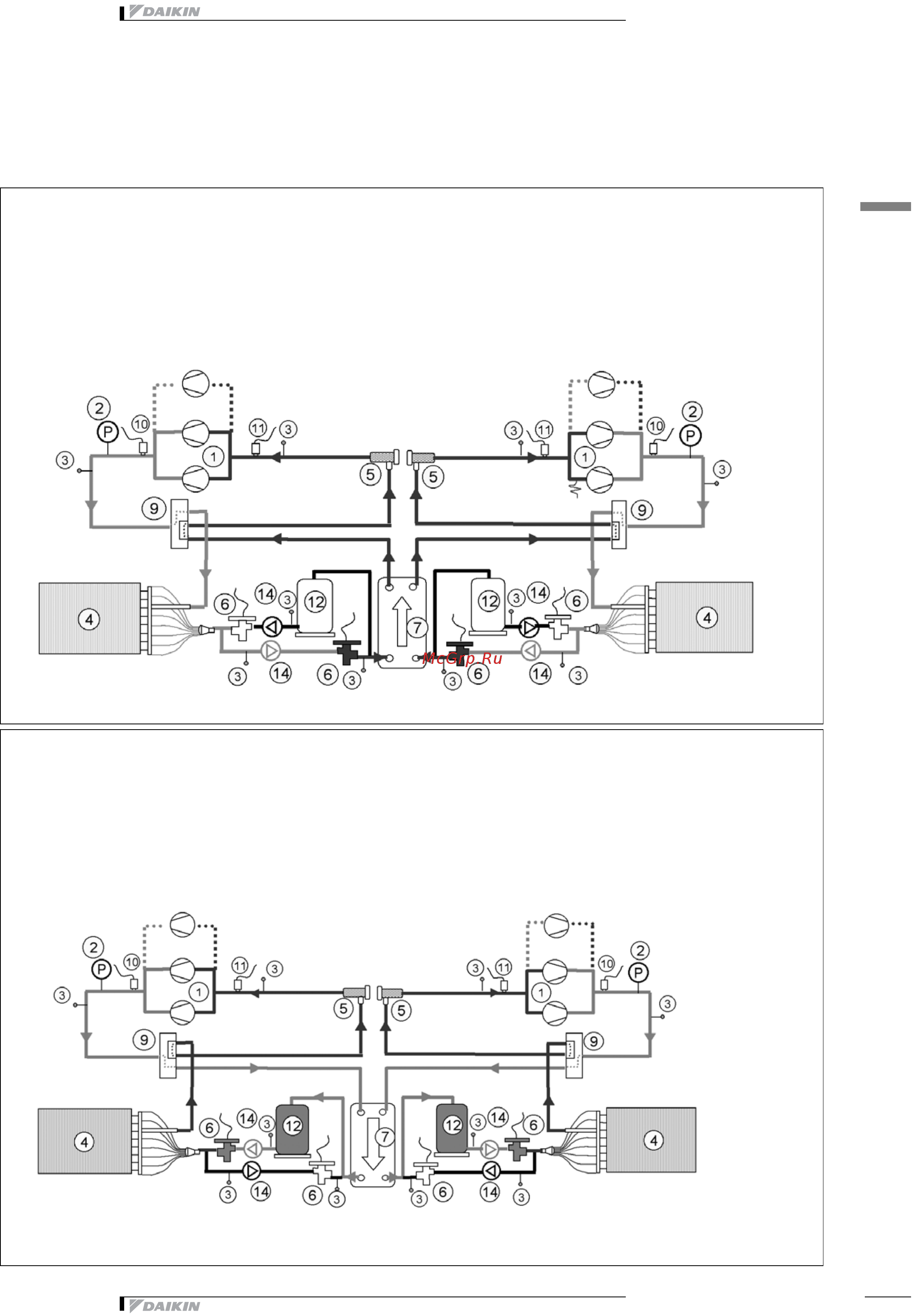

7 Piping diagram
EUWY*050-090BZ6Y
Cooling mode
j
1
Compressor
j
2
High pressure pressostat
j
3
Schraeder valve
j
4
Heat exchanger
j
5
Filter drier
j
6
Expansion valve
j
7
Brased plate heat exchanger
j
8
j
9
4 way valve
j
10
High pressure transducer
j
11
Low pressure transducer
j
12
Liquid receiver with electric heater
j
13
j
14
Check valve
EUWY*050-090BZ6Y
Heating mode
j
1
Compressor
j
2
High pressure pressostat
j
3
Schraeder valve
j
4
Heat exchanger
j
5
Filter drier
j
6
Expansion valve
j
7
Brased plate heat exchanger
j
8
j
9
4 way valve
j
10
High pressure transducer
j
11
Low pressure transducer
j
12
Liquid receiver with electric heater
j
13
j
14
Check valve
