• Chillers • R-407C • EUWY-BZ6Y
• Applied Systems • Chillers
30
1
6

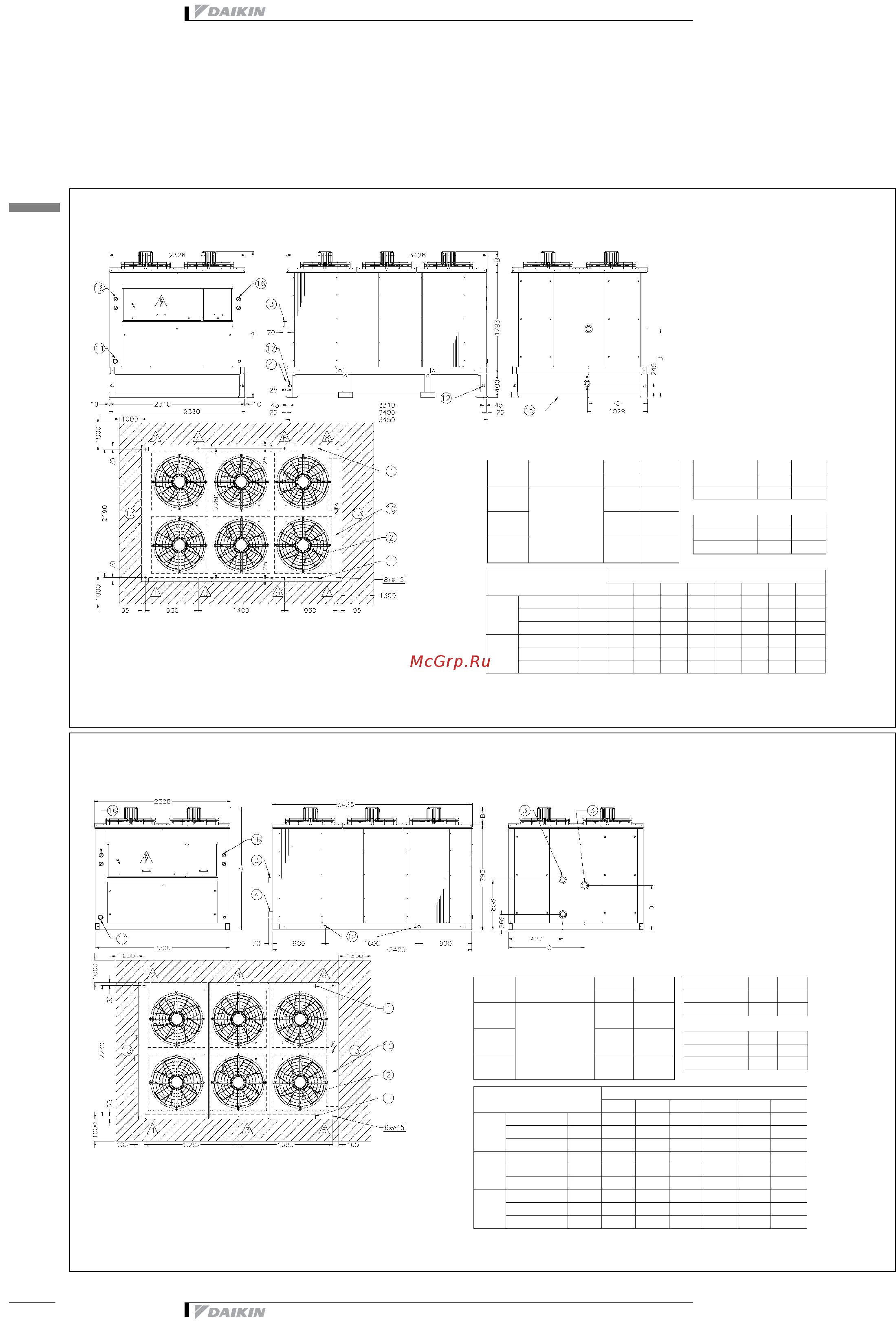

6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
5715-7708B
EUWYB080-090-095BZ6Y
j
1
Condenser
j
2
Fans
j
3
Evaporator water inlet connection
j
4
Evaporator water outlet connection
j
5
Refrigerant charge (Kg)
j
6
Oil charge (!)
j
8
Operating weight with hydraulic module (Kg)
j
9
Shipping weight (Kg)
j
10
Switchbox
j
11
Power supply inlet
j
12
Rigging eyes J35
j
13
Minimum clearance for maintenance
j
14
Weight per point (Kg)
j
15
Buffer tank
j
16
Pressure gauges (option)
j
14
_
1
_
2
_
3
_
4
_
5
_
6
_
7
_
8
j
8
EUWY080 3742 388 372 440 424 512 496 563 547
EUWY090 3995 427 404 476 453 546 522 595 572
EUWY095 4028 442 437 47ç 475 532 528 570 565
j
9
EUWY080 3097 - - - - - - - -
EYWY090 3335 - - - - - - - -
EYWY095 3368 - - - - - - - -
EUWY
j
3
-
j
4
j
5
j
6
R407C
080
3″ (ISO R/7) MALE
30
30
17.0
17.0
090
37
37
19.8
19.8
095
41
41
11.8
11.8
AB
Standard 2499 306
Low noise 2492 299
CD
EUWY080 1003 1161
EUWY090-095 964 1273
5715-7701B
EUWYN/P080-090-095BZ6Y
j
1
Condenser
j
2
Fans
j
3
Evaporator water inlet connection
j
4
Evaporator water outlet connection
j
5
Refrigerant charge (Kg)
j
6
Oil charge (!)
j
7
Operating weight without hydraulic module (Kg)
j
8
Operating weight with hydraulic module (Kg)
j
9
Shipping weight (kg)
j
10
Switchbox
j
11
Power supply inlet
j
12
Rigging eyes J45
j
13
Minimum clearance for maintenance
j
14
Weight per point (Kg)
j
16
Pressure gauges (option)
j
14
_
1
_
2
_
3
_
4
_
5
_
6
j
7
EUWY080 2414 301 290 408 397 514 504
EUWY090 2592 326 313 438 426 551 538
EUWY095 2625 318 305 444 431 570 557
j
8
EUWY080 2529 330 309 432 411 534 513
EUWY090 2781 381 350 479 448 577 546
EUWY095 2815 379 348 485 454 590 559
j
9
EUWY080 2464 - - - - - -
EUWY090 2702 - - - - - -
EUWY095 2735 - - - - - -
Without hydraulic
module
With hydraulic
module
EUWY
j
3
-
j
4
j
5
j
6
R407C
080
3″ (ISOR/7) MALE
30
30
17.0
17.0
090
37
37
19.8
19.8
095
41
41
11.8
11.8
AB
Standard 2099 306
Low noise 2092 299
CD
EUWY080 1297 761
EUWY090-095 1336 873
