10 Installation

10 - 1 Installation method

Foundations

No special foundations are required, provided the supporting surface is flat and level, and can withstand the weight or the unit.

Install a drain hole wide enough to drain away water from the unit in the event of shut-down or repair.

Clearance

Respect recommended clearance around the unit to allow maintenance operation to take place without obstruction and recommended clearance around condenser.

Unit operation is function of the air temperature. Any recycling of the air fed out by the fans will increase the air intake temperature over the condenser fins and can result in high

pressure cut-out. In this case the standard operating conditions are modified. Operation of the unit may be affected by an increase in air temperature on the condenser. When the

units are positioned in a windly area, avoid all the risks of air-cooled recycling. Refer to certified drawings.

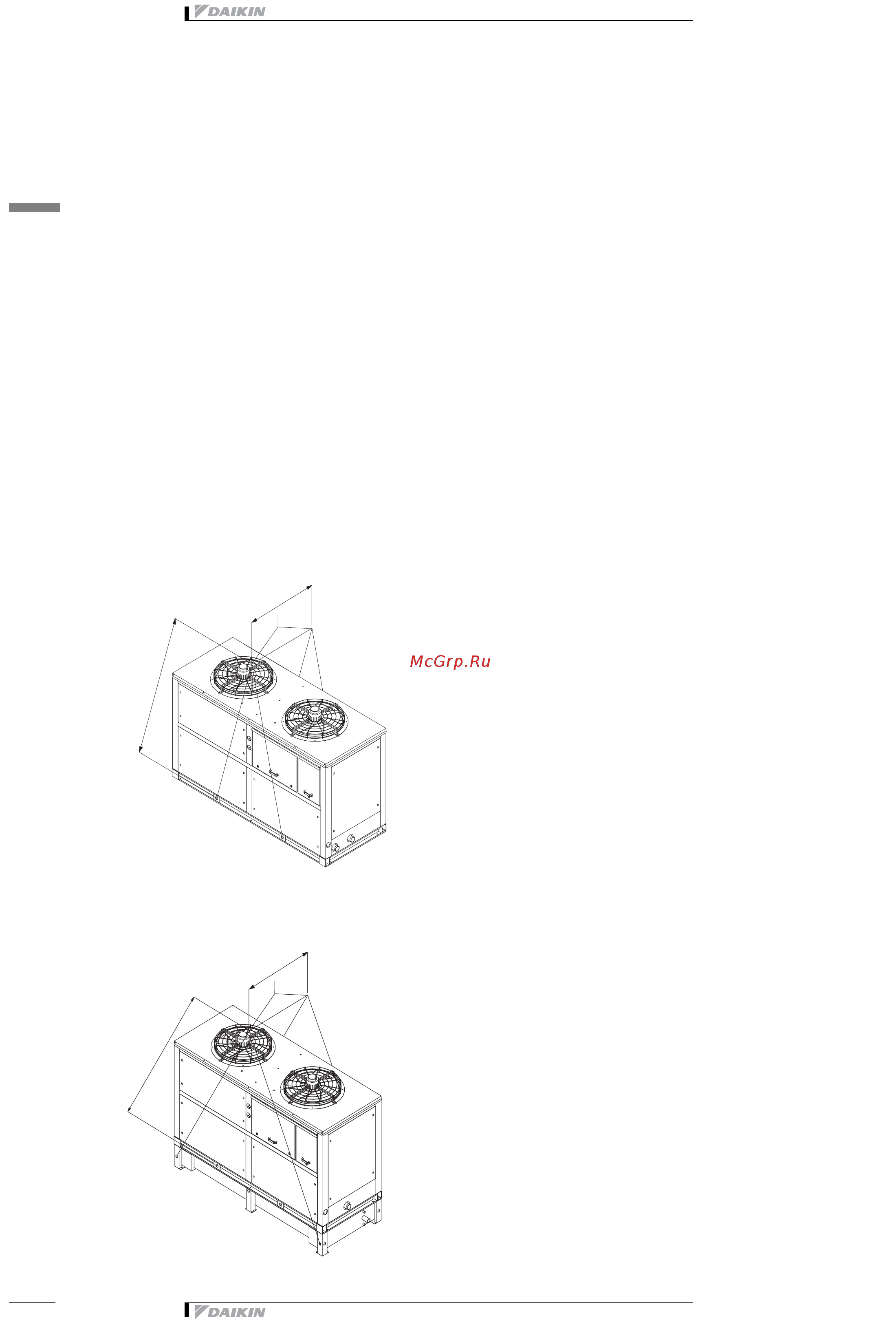

Figure 1 - Handling - Units without buffer tank

Note: The plates welded at the end of the bases must not be used for handling.

Figure 2 - Handling - Units with buffer tank
