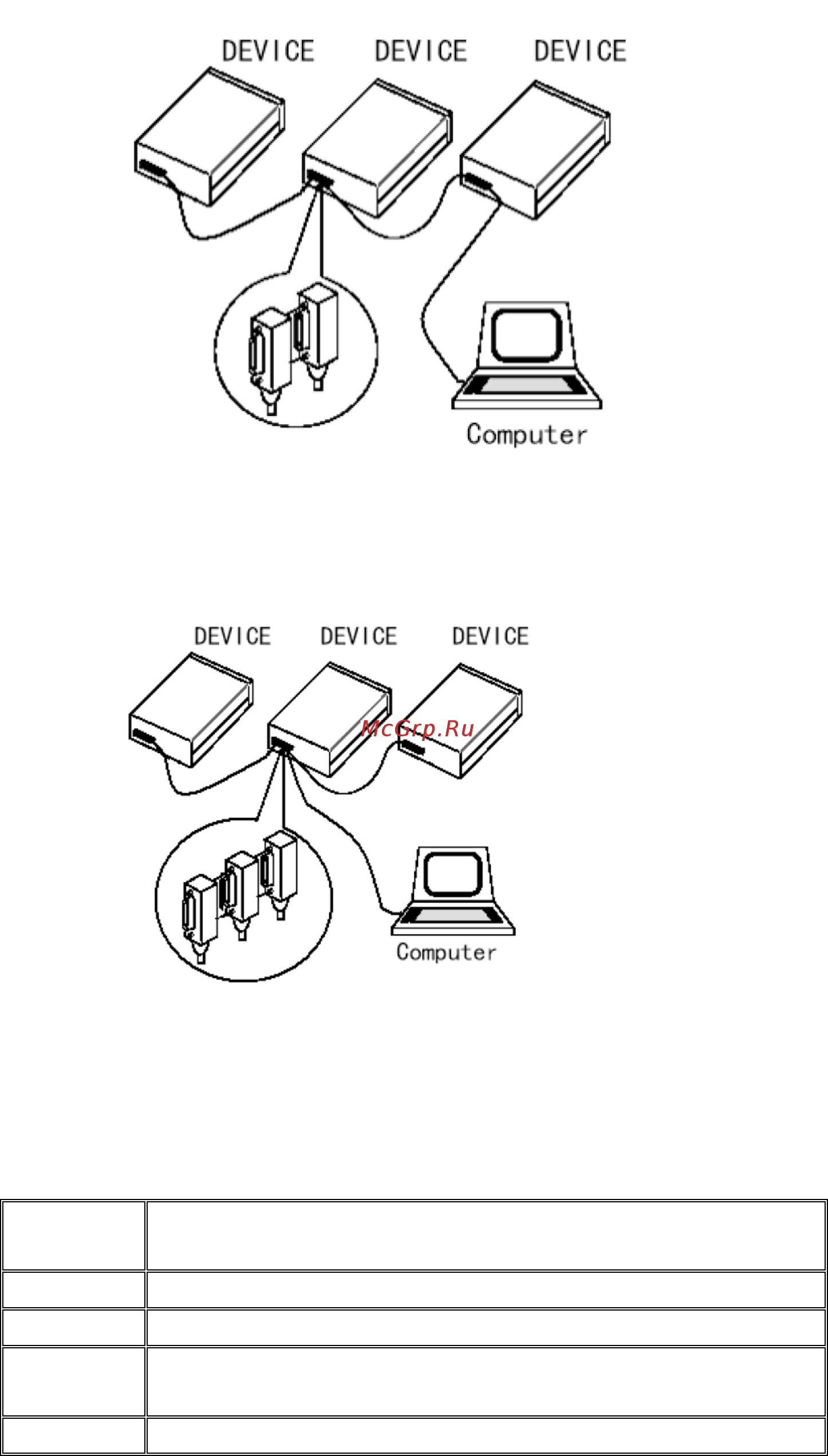

GPIB System Interconnection for Double-piggyback Connector

Method 2 of GPIB cable connection:

GPIB System Interconnection for 3-piggyback Connector

GPIB interface function

This instrument provides most of the general functions of GPIB except the controller, see the following

table:

Code

name

Function

SH1

Support all data source contact function

AH1

Support all receiver contact function

Basic talker function, talk only function, talk is canceled

when in MLA, serial point name is not supported

Basic Listener function, the MTA is canceled, no listening
