DMTA053-01EN, Rev. D, July 2017
Chapter 10112

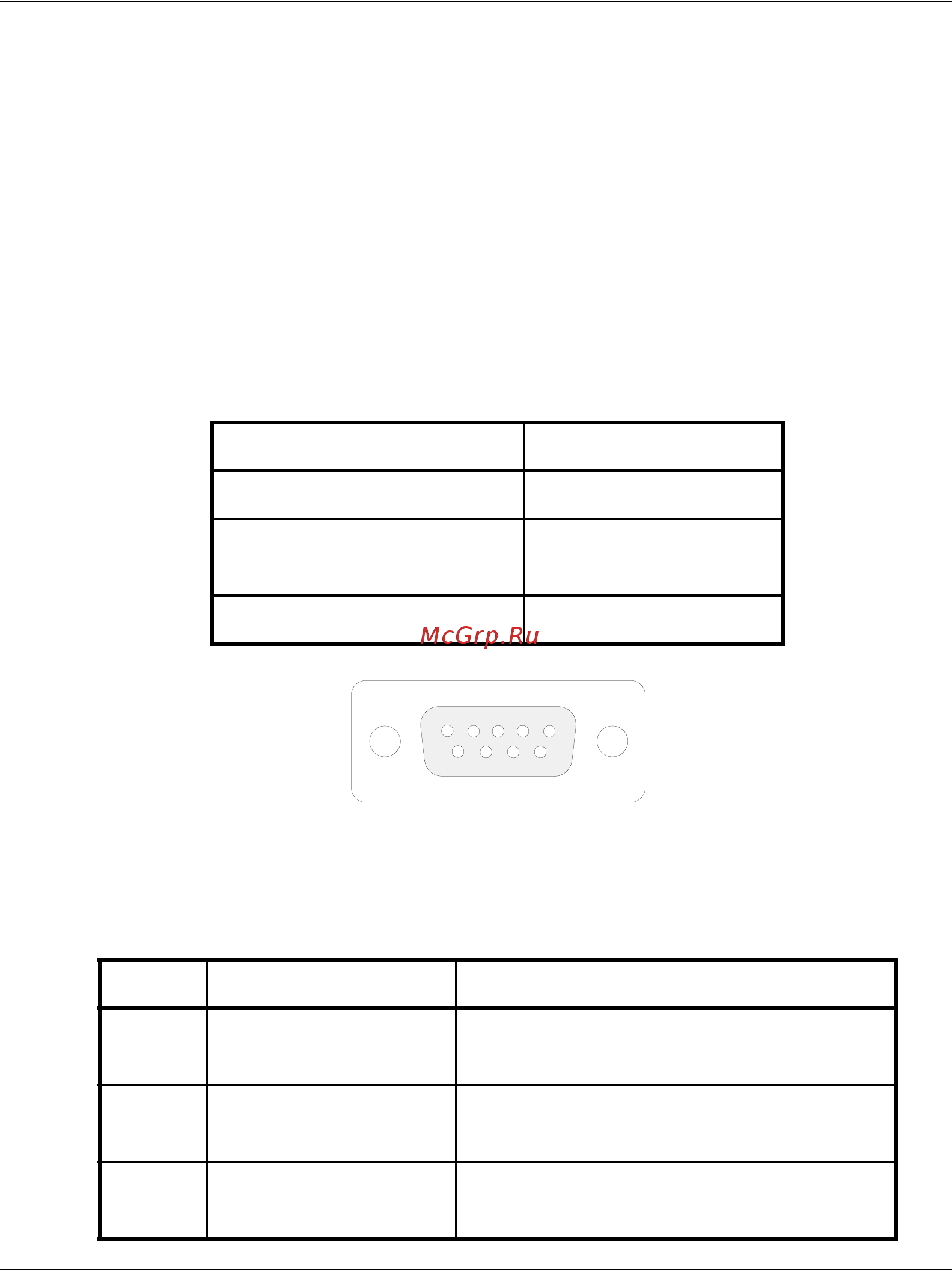

10.1.3 ALARM Connector
The MS5800 ALARM connector is used only to send alarm signals. This connector does
not provide a power supply voltage, it provides only the common that is used as a
reference.
Description DB-9, female connector
Manufacturer, number ITT Cannon, DE-9S
Olympus, 21AE0014
Suggested cable connector ITT Cannon, DE-9P
Olympus, 21AE0015
Figure 10-4 The
ALARM connector
Table 14
ALARM connector parameters and specifications
Parameters Specifications
Analog outputs
Maximum output
voltage
100 V
Maximum current 0.04 A
Table 15 Pinout for the
ALARM connector
Pin Signal Description
1 to 4 Alarm outputs 1 to 4 Alarm condition detected = Open
collector
5 Ground Power supply common of the
instrument and casing
6 to 9 Alarm outputs 5 to 8 Alarm condition detected = Open
collector
5
43
21
98
76
