DMTA053-01EN, Rev. D, July 2017
Theory of Operation: Electromagnetic Techniques 45
5.2.3 Super Multiplexed Mode
The super multiplexed mode of excitation is similar to the frequency multiplexing
mode in that it uses many time slots to produce different frequencies. However, this
mode is much more versatile because it allows simultaneous injection of up to eight
frequencies during the time slots (four frequencies per time slot). With this mode,
time slots become “contexts,” for which the frequency, the amplitude and the phase of
the signals generated by each injector may be modified. Moreover, the acquisition
channels and the kind of processing performed on the eddy current data collected can
be selected for each context. Figure 5-3 shows an example of excitation signal
generated in context switching mode. This signal consists of three contexts. The first
context combines two sinusoidal signals at 10 kHz and 50 kHz; the second one, two
sinusoidal signals at 5 kHz and 10 kHz; and the third one, two sinusoidal signals at
5 kHz and 50 kHz.

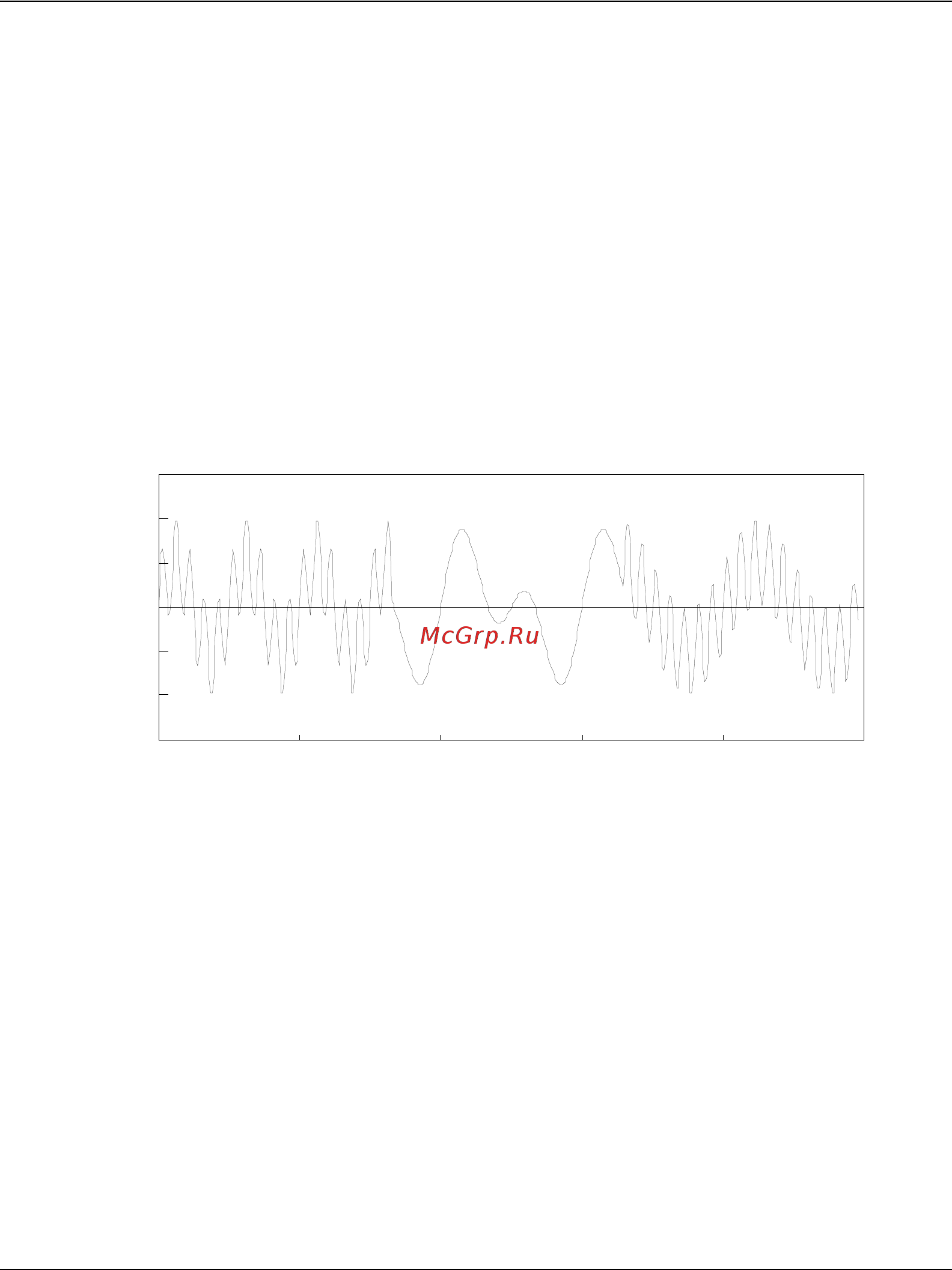

Figure 5-3 Example of probe excitation signal in context switching mode
0 200 400 600 800 1000
-15
-10
-5
0
5
10
15
Voltage (V)
Time (μs)
