CHAUVIN ARNOUX CA-F201 [10/36] The display unit

1.3 THE DISPLAY UNIT

Here is the display unit of the clamp multimeter:

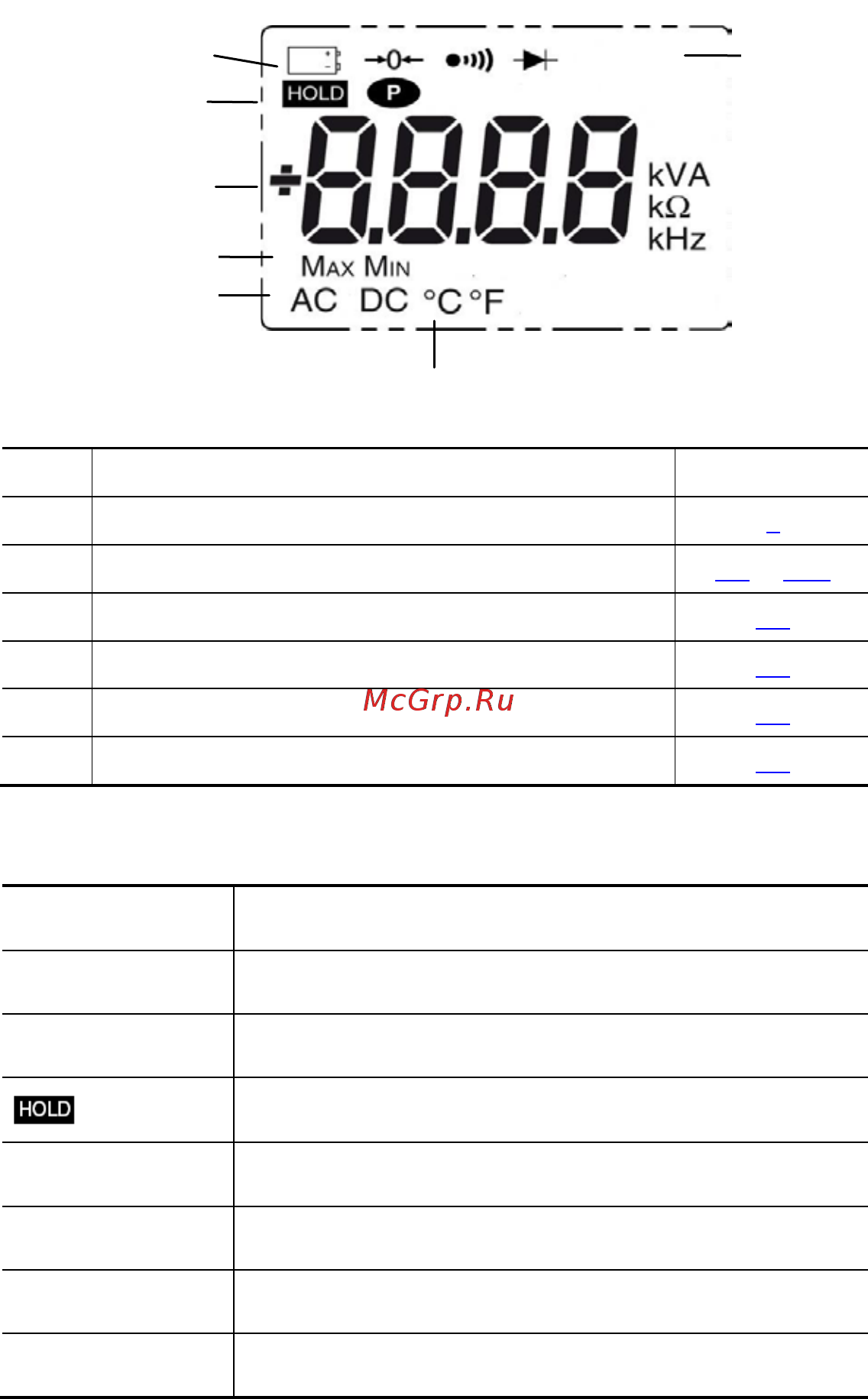

Figure 4 : the display unit

Item Function See §

1 Display of the modes selected (keys) 2

2 Display of the measurement value and unit 3.5 to 3.12

3 Display of the MAX/MIN modes 2.3

4 Type of measurement (AC or DC) 2.2

5 Display of the selected modes (switch) 3.5

6 Spent battery indication 5.2

1.3.1 The symbols of the display unit

Symbol Designation

Alternating current or voltage

Direct voltage

Storage of the values and hold of the display

Max

Maximum RMS value

Min

Minimum RMS value

Volt

Hertz
