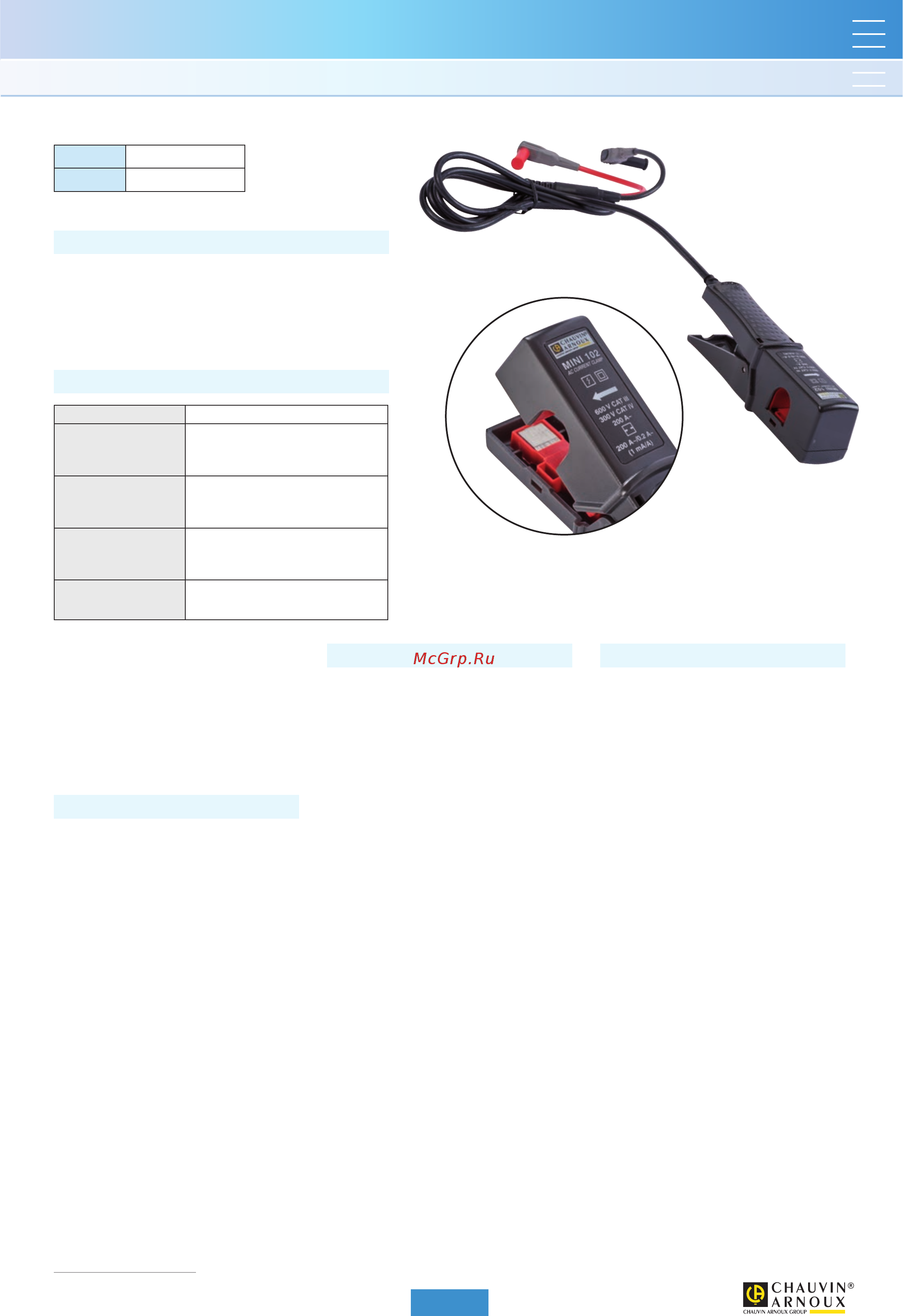

Serie MN

Pinces ampèremetriques pour courant AC

Non-contractual document

906131102A - Ed 1

1.06 (1/4)

Current clamp for AC current

MINI 100 series

•

Output:

Double-insulated cable 1.5 m long, terminated

by 2 insulated elbowed male banana connectors

Ø4mm

•

Bandwidth:

48 Hz .. 10 000 Hz

•

Clamping capacity:

Cable Ømax 16mm

ELECTRICAL SPECIFICATIONS

•

Load impedance:

≤ 100 Ω

•

Inﬂ uence of load impedance:

See curves

•

Maximum currents:

350 A permanent at a frequency ≤ 1 kHz.

200 A permanent at a frequency ≤ 8 kHz

(limitation proportional to the reciprocal of the

frequency beyond that)

•

Inﬂ uence of temperature:

≤ 0.2 % per 10 °K

•

Inﬂ uence of adjacent conductor:

≤ 2 mA / A at 50 Hz

•

Inﬂ uence of conductor position in jaws:

≤ 0.08 % at 50/60 Hz

•

Inﬂ uence of frequency:

≤ 1 % typique

•

Maximum output voltage (secondary open):

≤ 30 V

MECHANICAL SPECIFICATIONS

•

Operating temperature:

-10 °C to +50 °C

•

Storage temperature:

-40 °C to +80°C

•

Relative humidity for operation:

From 0 to 85% RH with a linear decrease above

35°C

•

Operating altitude:

0 to 2,000 m

•

Casing protection rating (leakprooﬁ ng):

IP20

(2)

(EN60529 Ed. 2001)

•

Drop test:

1 m (IEC 68-2-32)

•

Dimensions:

130.4 x 46 x 34mm

•

Weight:

approx. 250 g

•

Colour:

Black casing

SAFETY SPECIFICATIONS

•

Electrical safety:

Instrument with double insulation or

reinforced insulation between the primary,

the secondary and the grippable part located

under the guard as per EN 61010-1 Ed.2:2001,

EN 61010-2-031 Ed. 2002 & EN 61010-2-032

Ed.2003

- 600 V categoryIII, pollution degree 2

- 300 V category IV, pollution degree 2

•

Electromagnetic compatibility:

CE-certiﬁ ed equipment compliant with standard

EN61326-1: 2006

- Emission: stipulations for class B equipment

(domestic use).

- Immunity: stipulations for equipment used

intermittently on industrial sites.

Calibre

200 A AC

Sensitivity

1 mA / A (1000 / 1)

DESCRIPTION

The MINI 102 current clamp, whose jaws are equipped with a high-

performance magnetic material and a double coil, offer excellent linearity

and improved performance.

If a current is present in the clamped conductor, the MINI 102 clamp is

protected against voltage surges when it is connected to the measuring

instrument.

MAIN SPECIFICATIONS

(1)

Calibre 200 A

Measurement range

50 mA .. 200 A (load 1 Ω)

50 mA .. 200 A (load 10 Ω)

50 mA .. 20 A (load 100 Ω)

Accuracy in%

≤ 1 % + 0.02 A (load 1 Ω)

≤ 1.5 % + 0.01 A (load 10 Ω)

≤ 4 % + 0.01 A (load 100 Ω)

Phase shift

≤ 3° (load 1 Ω)

≤ 6° (load 10 Ω)

≤ 12° (load 10 0Ω)

Output signal

1 mAAC / AAC (1000 / 1)

(200 mA for 200 A)

Model MINI 102
