CHAUVIN ARNOUX CA-F603 [10/74] The keys of the keypad

1.2 THE KEYS OF THE KEYPAD

Here are the six keys of the keypad :

1 2 3

4 5 6

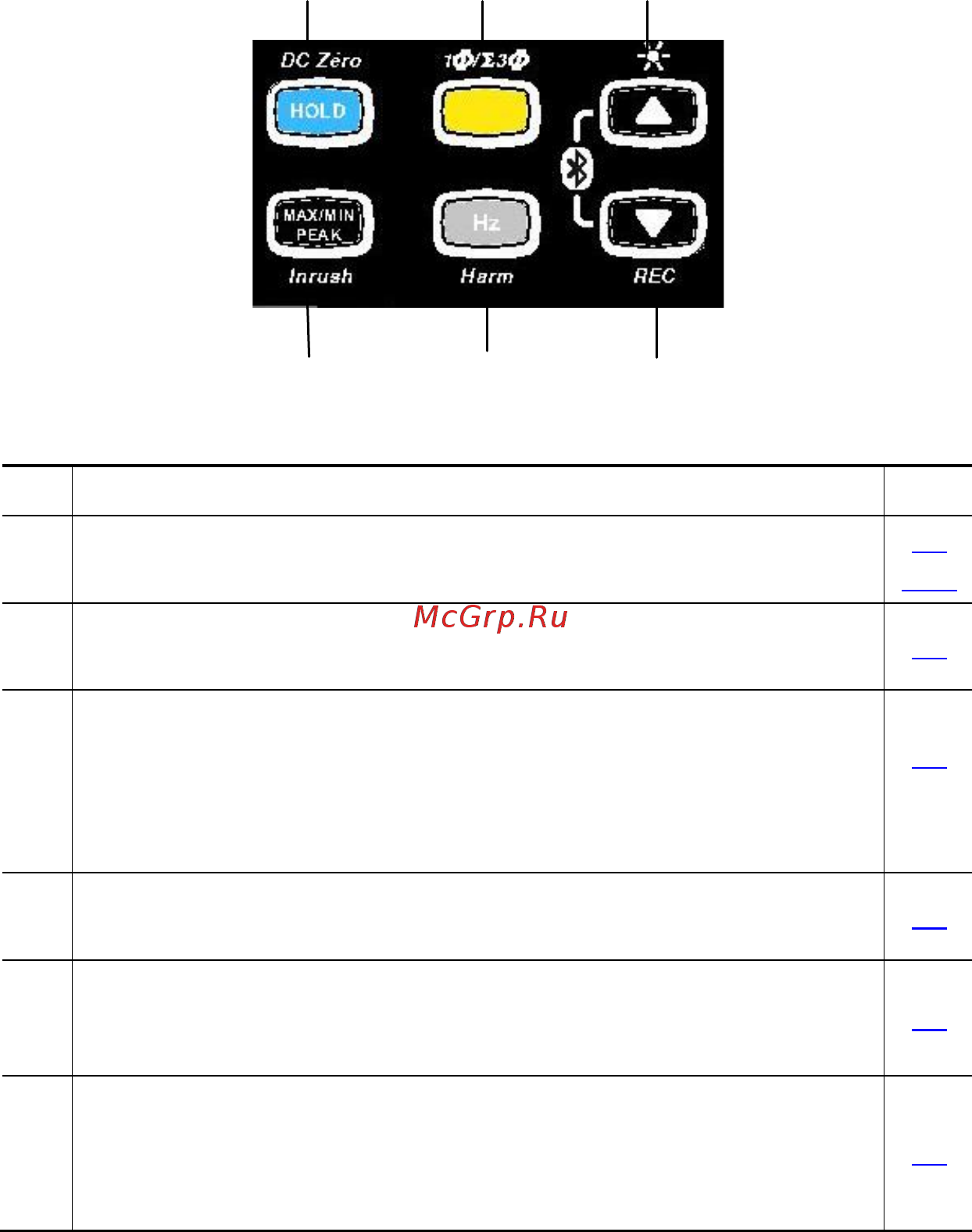

Figure 3 : the keys of the keypad

Item Function See §

1 Storage of values, disabling of display

Zero correction A

AC+DC/

AC+DC

2.1

3.8.2

2 Selection of the type of measurement (AC, DC)

Selection of single-phase or three-phase measurement

2.2

3 Activation or de-activation of the backlighting

of the display unit

Scrolling up of orders of harmonics or of pages of results in W,

MAX/MIN/PEAK

Activation or de-activation of BT wireless transfer (in combination with 6)

2.3

4 Activation or de-activation of the MAX/MIN mode

Activation or de-activation of the INRUSH mode in A

2.5

5 Measurements of frequency (Hz), of total harmonic distortion (THD),

and of orders of harmonics

Activation or de-activation of the energy metering mode

2.6

6 Scrolling down of orders of harmonics or of pages of results in W,

MAX/MIN/PEAK

Activation or de-activation of recording of current data in memory

Activation or de-activation of BT wireless transfer (in combination with 3)

2.4
