1.3 THE DISPLAY UNIT

Here is the display unit of the clamp multimeter:

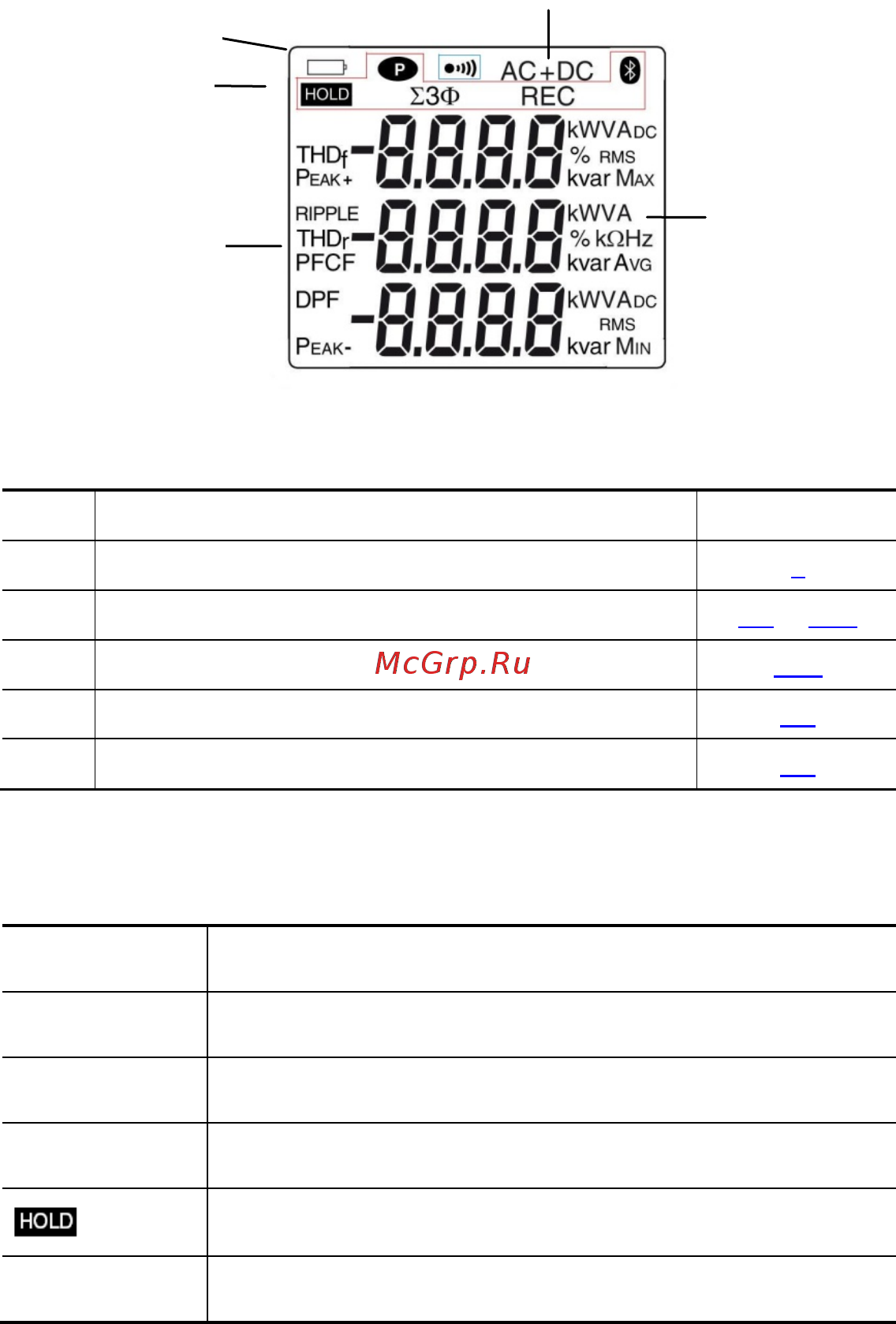

Figure 4 : the display unit

Item Function See §

1 Display of the modes selected (keys) 2

2 Display of the measurement value and unit 3.5 to 3.13

3 Display of the MAX/MIN modes 3.10

4 Type of measurement (AC or DC) 2.2

6 Spent battery indication 5.2

1.3.1 The symbols of the display unit

Symbol Designation

Alternating current or voltage

Direct voltage

AC+DC

Alternating and direct current

Storage of the values and hold of the display

RMS

RMS value
