Série MN
Pinces ampèremétriques pour courant AC
Non-contractual document
906200083 - Ed 1
12.07 (2/4)
PAC Series
AC/DC current clamp
•
Weight:
520 g with battery
•
Operating temperature:
-10 °C to +55 °C
•
Storage temperature:
-40 °C to +80 °C
•
Max. temperature of clamped conductor
(measured):
+90 °C (may spike at +110 °C)
•
Max temperature of jaws:
+80 °C
•
Relative humidity for operation:
0 to 85 % RH with a linear decrease above 35 °C
•
Operating altitude:
0 to 2,000 m
•
Enclosure ingress protection:
IP 40 (IEC 60529)
•
Fall height:
1 m (IEC 60068-2-32)
•
Self-extinguishing capability
UL94 V1
•
Colours:
Casing: dark grey
Jaws: red

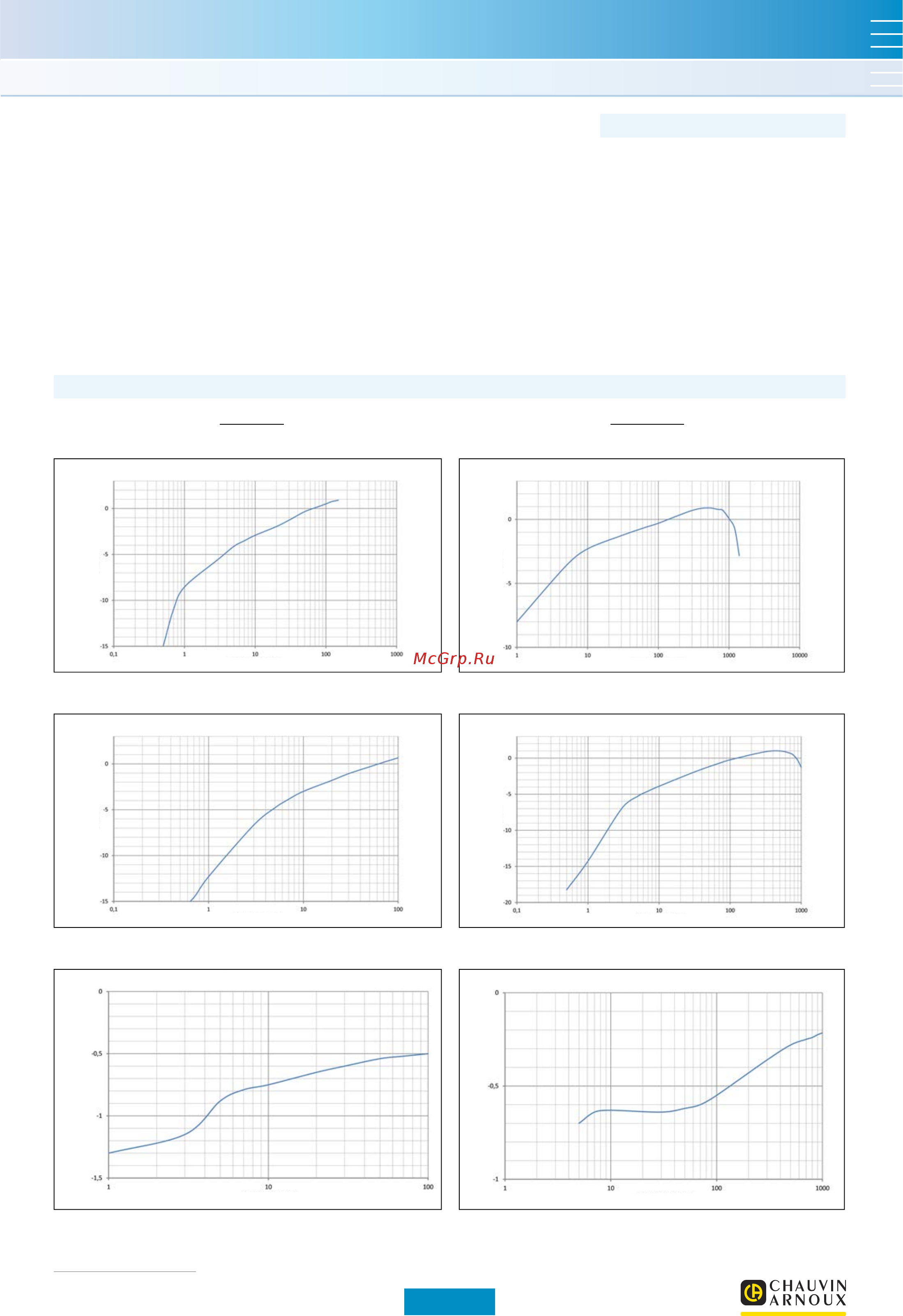

CURVES
150 A calibre 1,400 A calibre
DC linearity
AC linearity
Phase shift
SAFETY SPECIFICATIONS
•
Electrical:
Type A appliance with double or reinforced
insulation between the primary, the secondary
and the grippable part below the guard as per
IEC61010-1 & IEC 61010-2-032
- 600 V category III, pollution degree 2
- 300 V category IV, pollution degree 2
•
Electromagnetic compatibility (EMC):
Complies with IEC 61326-1: 2012 (portable
instrument)
Phase shift (°)
Phase shift (°)
Error (%)Error (%)
Error (%)TError (%)
1 mV/A calibre - Typical phase shift @ 60 Hz10 mV/A calibre - Typical phase shift @ 60 Hz
Derating according to frequency
10 mV/A calibre = DC typical error
10 mV/A calibre - AC typical error @ 60 Hz
1 mV/A calibre = DC typical error
1 mV/A calibre - AC typical error @ 60 Hz
Current on primary (A AC)
Current on primary (A AC)
Current on primary (A AC)
Current on primary (A AC)
Current on primary (A DC) Current on primary (A DC)
PAC27 model (Isolated AC/DC current sensor)
