To order Reference

PAC15 AC/DC current clamp with User's Manual and battery P01120115

Série MN

Pinces ampèremétriques pour courant AC

Non-contractual document

906200083 - Ed 1

12.02 (2/2)

PAC Series

AC/DC current clamp

(1)

Conditions of reference:

- Temperature & humidity: 23 °C ± 5 °K, 20 % to 75 % HR

- Power supply: by 6 V and 9 V battery or µUSB 5 ±0.1 V DC,

- Conductor position centred on the clamp locators

- Magnetic field: DC earth field

- Absence of any external alternating magnetic fields.

- Absence of electric fields

- Measurement for a current from DC to 65 Hz sinusoidal

- Impedance of the measuring instrument: > 1 MΩ ≤ 100 pF.

(2)

Phase shift "absolute value" (unsigned)

(3)

Outside the reference domain

SAFETY SPECIFICATIONS

•

Electrical:

Type A appliance with double or reinforced

insulation between the primary, the secondary

and the grippable part below the guard as per

IEC61010-1 & IEC 61010-2-032

- 600 V category III, pollution degree 2

- 300 V category IV, pollution degree 2

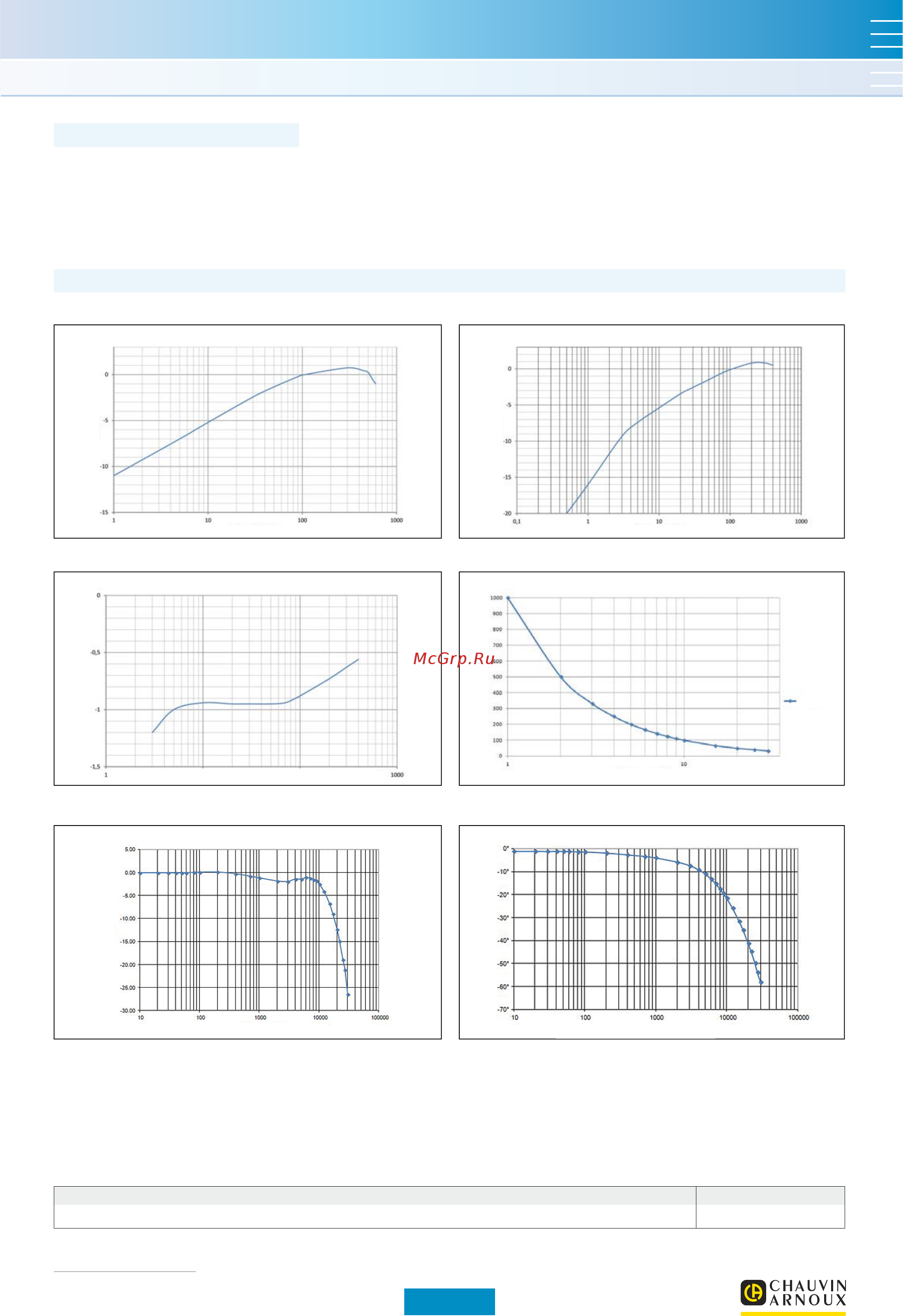

CURVES

DC linearity AC linearity

Phase shift Limitation of measurable current depending on frequency

Frequency response Phase shift according to frequency

Phase shift (°)

Error (%)

Error (%)T

Error (%)

Maximum current (A)

Typical phase shift according to frequency at 100 A - 1 mV/A calibreTypical frequency response at 100 A - 1 mV/A calibre (50 Hz relative error)

Derating according to frequency1 mV/A calibre - Typical phase shift @ 60 Hz

1 mV/A calibre = DC typical error 1 mV/A calibre - AC typical error @ 60 Hz

Frequency (Hz)

Frequency (kHz)

Current on primary (A AC)

Current on primary (A DC) Current on primary (A AC)

Maximum limit

•

Electromagnetic compatibility (EMC):

Complies with IEC 61326-1: 2012 (portable

instrument)

PAC15 model
