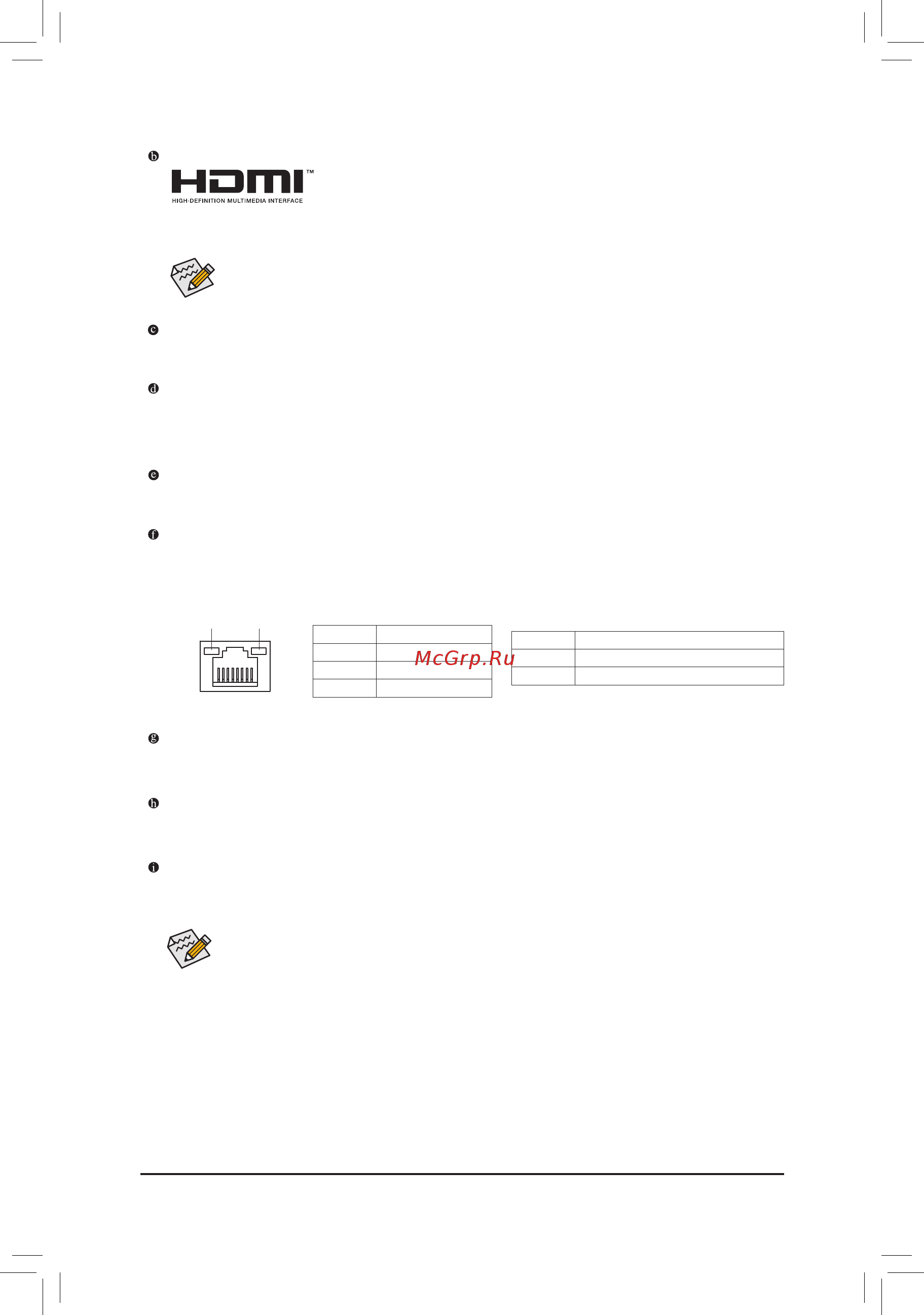

Gigabyte X570 I AORUS PRO WIFI [11/44] Hdmi port
![Gigabyte X570 I AORUS PRO WIFI [11/44] Hdmi port](/views2/1667702/page11/bgb.png)
After installing the DisplayPort/HDMI device, make sure to set the default sound playback device
to DisplayPort/HDMI. (The item name may differ depending on your operating system.)
(Note 1) For 2nd Generation AMD Ryzen
™
with Radeon
™
Vega Graphics processors/AMD Ryzen
™
with Radeon
™
Vega Graphics processors only.
(Note 2) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's
website.
HDMI Port
(Note 1)
The HDMI port supports HDCP 2.2
(Note 1)
and Dolby TrueHD and DTS HD Master
Audio formats. It also supports up to 192 KHz/24bit 8-channel LPCM audio output.
You can use this port to connect your HDMI-supported monitor. The maximum supported resolution is
4096x2160@60 Hz
(Note 1)
, but the actual resolutions supported are dependent on the monitor being used.
USB 3.1 Gen 1 Port
The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
USB 3.1 Gen 1 Port (White)
The USB 3.1 Gen 1 port supports the USB 3.1 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
Before using Q-Flash Plus
(Note 2)
, make sure to insert the USB ash drive into this port rst.
Q-Flash Plus Button
(Note 2)
This button allows you to update the BIOS when the power connector is connected but the system is not
powered on.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
USB 3.1 Gen 2 Type-A Port (Red)
The USB 3.1 Gen 2 Type-A port supports the USB 3.1 Gen 2 specication and is compatible to the USB
3.1 Gen 1 and USB 2.0 specication. Use this port for USB devices.
USB Type-C
™
Port
The reversible USB port supports the USB 3.1 Gen 2 specication and is compatible to the USB 3.1 Gen
1 and USB 2.0 specication. Use this port for USB devices.
SMA Antenna Connectors (2T2R)
Use this connector to connect an antenna.
Tighten the antenna cables to the antenna connectors and then move the antenna to a place
where the signal is good.
- 11 -
