Gigabyte X570 I AORUS PRO WIFI [4/44] X570 i aorus pro wifi motherboard layout

- 4 -

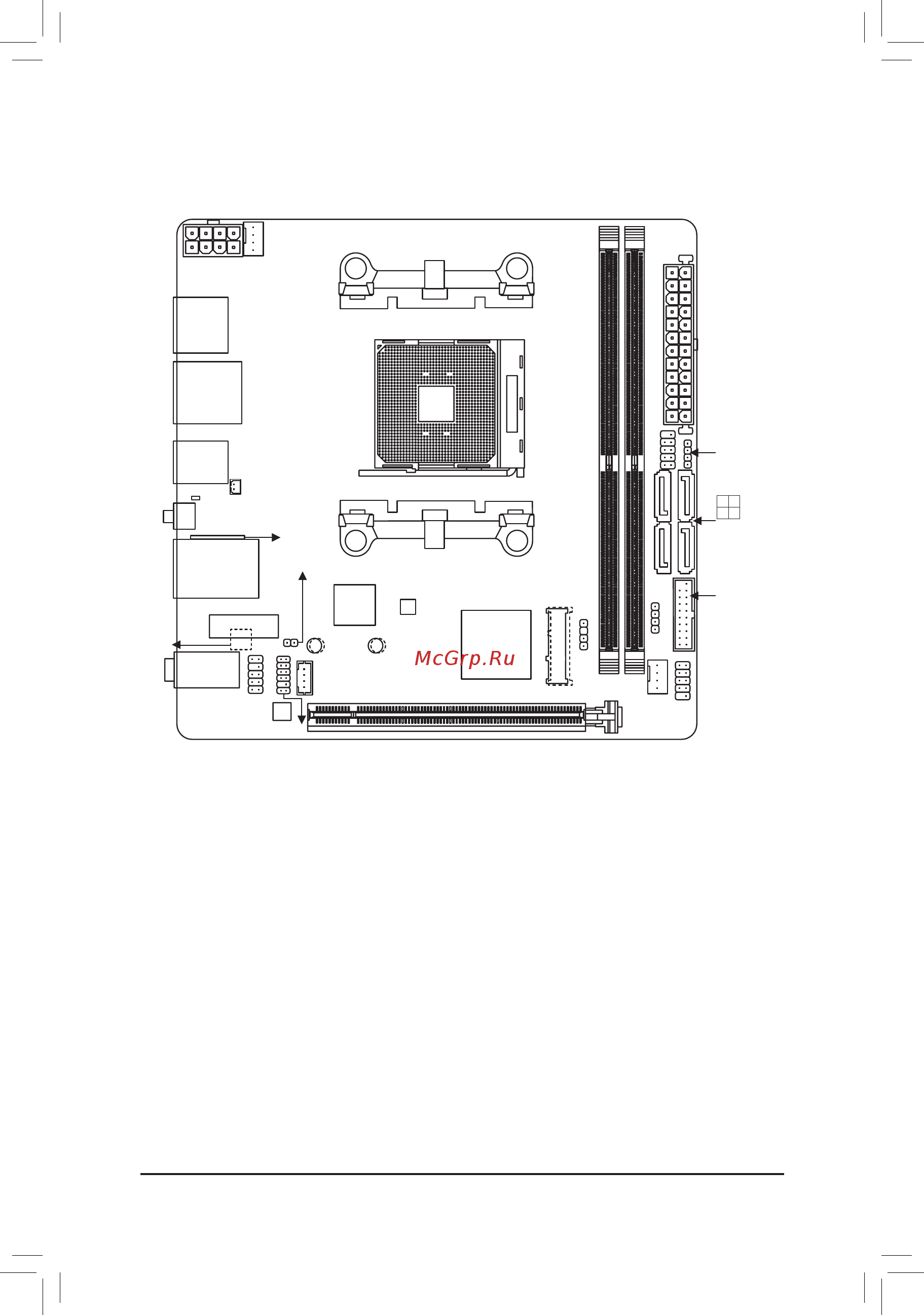

X570 I AORUS PRO WIFI Motherboard Layout

Socket AM4

R_USB30_1

USB31_LAN

HDMI 1

R_USB30_2

HDMI

ATX

AUDIO

M2_WIFI

DDR4_A1

DDR4_B1

ATX_12V

AMD X570

D_LED

M_BIOS

PCIEX16

CODEC

F_PANEL

SPEAKERF_USB30

F_USB1

TPM

CLR_CMOS

SYS_FAN2

F_AUDIO

BAT

SYS_FAN1

CPU_FAN

iTE

Super I/O

6080

SATA3

Intel

GbE

LAN

(Note)

0 2

1 3

X570 I AORUS PRO WIFI

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5 X570 I AORUS PRO WIFI Motherboard

5 Motherboard driver disk 5 One antenna

5 User's Manual 5 Thermal pad kit

5 Two SATA cables 5 One RGB LED strip extension cable

(Note) The chip/connector is on the back of the motherboard.

M2B_SOCKET

(Note)

QFLASH_PLUS

BAT

LED_C

M2A_SOCKET

QFLED

Содержание

Rev 1002 12me x57iapw 1002r 1
User s manual 1
X570 i aorus pro wifi 1
Copyright 2
Disclaimer 2
Identifying your motherboard revision 2
Chapter 1 hardware installation 3
Chapter 2 bios setup 1 3
Chapter 3 appendix 6 3
Table of contents 3
X570 i aorus pro wifi motherboard layout 3
Box contents 4
Motherboard driver disk 5 one antenna 4
Note the chip connector is on the back of the motherboard 4
Two sata cables 5 one rgb led strip extension cable 4
User s manual 5 thermal pad kit 4
X570 i aorus pro wifi 4
X570 i aorus pro wifi motherboard 4
X570 i aorus pro wifi motherboard layout 4
1 installation precautions 5
Chapter 1 hardware installation 5
2 product specifications 6
2 productspecifications 6
3 installing the cpu 9
Installing the cpu 9
4 installing the memory 10
5 installing an expansion card 10
6 back panel connectors 10
Displayport 10
Dualchannelmemoryconfiguration 10
Hdmi port 11
Q flash plus butto 11
Rj 45 lan port 11
Sma antenna connectors 2t2r 11
Usb 3 gen 1 port 11
Usb 3 gen 1 port white 11
Usb 3 gen 2 type a port red 11
Usb type 11
Audio jack configurations 12
Line in rear speaker out 12
Line out front speaker out 12
Mic in center subwoofer speaker out 12
Please visit gigabyte s website for details on configuring the audio software 12
Prevent an electrical short inside the cable connector 12
The line in jack use this audio jack for line in devices such as an optical drive walkman etc 12
The line out jack this jack supports audio amplifying function for better sound quality it is recommended that you connect your headphone speaker to this jack actual effects may vary by the device being used use this audio jack for a headphone or 2 channel speaker 12
The mic in jack 12
To configure 7 channel audio you have to use an hd front panel audio module and enable the multi channel audio feature through the audio driver 12
When removing the cable connected to a back panel connector first remove the cable from 12
When removing the cable pull it straight out from the connector do not rock it side to side to 12
Your device and then remove it from the motherboard 12
7 internal connectors 13
12v 22 5v 14
12v only for 2x12 pin atx 14
2 atx_12v atx 2x4 12v power connector and 2x12 main power connector 14
3 v 13 3 v 14
3 v 14 12v 14
3 v only for 2x12 pin atx 14
4 cpu_fan sys_fan1 sys_fan2 fan headers 14
5v 16 ps_on soft on off 14
5v 18 gnd 14
5v only for 2x12 pin atx 14
5vsb stand by 5v 21 5v 14
All fan headers on this motherboard are 4 pin most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the speed control function requires the use of a fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 14
Atx_12v 14
Be sure to connect fan cables to the fan headers to prevent your cpu and system from 14
Gnd 15 gnd 14
Gnd 17 gnd 14
Gnd 19 gnd 14
Gnd 7 12v 14
Gnd 8 12v 14
Gnd only for 2x12 pin atx 14
Gnd only for 2x4 pin 12v 5 12v only for 2x4 pin 12v 14
Gnd only for 2x4 pin 12v 6 12v only for 2x4 pin 12v 14
Header to prevent the chip or m device from overheating 14
Overheating overheating may result in damage to the cpu or the system may hang 14
Pin no definition 14
Pin no definition pin no definition 14
Power good 20 nc 14
Pwm speed control 14
The 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 14
These fan headers are not configuration jumper blocks do not place a jumper cap on the headers make sure the fan power cable of the pch heatsink module is connected to the sys_fan2 14
To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 14
Voltage speed control 14
With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector first make sure the power supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation 14
Before installing the devices be sure to turn off the devices and your computer unplug the power cord from the power outlet to prevent damage to the devices 15
Connect one end of the rgb led strip extension cable to the header and the other end to your rgb led strip the black wire marked with a triangle on the plug of the extension cable must be connected to pin 1 12v of this header the 12v pin marked with an arrow on the other end of the extension cable must be lined up with the 12v of the led strip be careful with the connection orientation of the led strip incorrect connection may lead to the damage of the led strip 15
Connect your addressable led strip to the header the power pin marked with a triangle on the plug of the led strip must be connected to pin 1 of the addressable led strip header incorrect connection may lead to the damage of the led strip 15
D_led addressable led strip header 15
For how to turn on off the lights of the led strip please visit the unique features webpage of gigabyte s website 15
Led_c rgb led strip header 15
No pin 15
Pin no definition 15
The header can be used to connect a standard 5050 addressable led strip with maximum power rating of 5a 5v and maximum number of 1000 leds 15
The headers can be used to connect a standard 5050 rgb led strip 12v g r b with maximum power rating of 2a 12v and maximum length of 2m 15
Follow the steps below to correctly install an m ssd in the m2a_socket connector step 1 before installing the m ssd loosen the screws from the pch heatsink module and remove the pch heatsink module then unfasten the m ssd screw and standoff from the motherboard select the proper hole for the m ssd to be installed and refasten the screw and standoff step 2 slide the m ssd into the connector at an angle 16
M socket 3 connectors 16
M2a_socket m2b_socke 16
Note the connector is on the back of the motherboard 16
Pin no definition 16
Sata3 0 1 2 3 sata 6gb s connectors 16
Step 3 press the m ssd down and then secure it with the screw make sure to refasten the pch heatsink module and connect the fan power cable to the sys_fan2 header to prevent the chip or m device from overheating 16
Sys_fan2 16
The m connectors support m sata ssds or m pcie ssds and support raid configuration please note that an m pcie ssd cannot be used to create a raid set with a sata hard drive refer to chapter 3 configuring a raid set for instructions on configuring a raid array 16
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and sata 1 gb s standard each sata connector supports a single sata device the sata connectors support raid 0 raid 1 and raid 10 refer to chapter 3 configuring a raid set for instructions on configuring a raid array 16
Connect the power switch reset switch and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables 17
Connects to the power status indicator on the chassis front panel the led is on when the system is operating the led is off when the system is in s3 s4 sleep state or powered off s5 17
F_panel front panel header 17
Follow the steps below to correctly install an m ssd in the m2b_socket connector step 1 use a screw driver to unfasten the screw and standoff from the motherboard locate the proper mounting hole for the m ssd to be installed and then screw the standoff first step 2 slide the m ssd into the connector at an angle step 3 press the m ssd down and then secure it with the screw then tear off the protective film from the included m thermal pad and then stick the thermal pad to the m ssd for heat dissipation 17
Hd hard drive activity led blue connects to the hard drive activity led on the chassis front panel the led is on when the hard drive is reading or writing data 17
Nc purple no connection 17
Note the connector is on the back of the motherboard 17
Pled power led yellow 17
Pw power switch red connects to the power switch on the chassis front panel you may configure the way to turn off your system using the power switch refer to chapter 2 bios setup settings platform power for more information 17
Res reset switch green connects to the reset switch on the chassis front panel press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart 17
S3 s4 s5 off 17
System status led 17
The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led and etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly 17
Connects to the speaker on the chassis front panel the system reports system startup status by issuing a beep code one single short beep will be heard if no problem is detected at system startup 18
F_audio front panel audio header 18
Gnd 7 faudio_jd 18
Lad0 7 lad3 18
Lad1 9 lframe 18
Lad2 11 serirq 18
Lclk 12 lreset 18
Line2_r 10 sense 18
Mic2_l 6 sense 18
Mic2_r 8 no pin 18
Nc 9 line2_l 18
No pin 10 nc 18
Pin no definition 18
Pin no definition pin no definition 18
Some chassis provide a front panel audio module that has separated connectors on each wire instead of a single plug for information about connecting the front panel audio module that has different wire assignments please contact the chassis manufacturer 18
Speaker speaker header 18
The front panel audio header supports high definition audio hd you may connect your chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 18
Tpm trusted platform module header 18
Vcc3 8 gnd 18
You may connect a tpm trusted platform module to this header 18
Do not plug the ieee 1394 bracket 2x5 pin cable into the usb 2 1 header prior to installing the usb bracket be sure to turn off your computer and unplug the power cord 19
F_usb1 usb 2 1 header 19
F_usb30 usb 3 gen 1 header 19
From the power outlet to prevent damage to the usb bracket 19
Gnd 11 d2 18 ssrx2 19
Gnd 14 sstx2 19
Pin no definition pin no definition 19
Pin no definition pin no definition pin no definition 19
Power 5v 6 usb dy 19
Power 5v 7 gnd 19
Ssrx1 10 nc 17 ssrx2 19
Ssrx1 9 d1 16 gnd 19
Sstx1 12 d2 19 vbus 19
Sstx1 13 gnd 20 no pin 19
The header conforms to usb 2 1 specification each usb header can provide two usb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer 19
The header conforms to usb 3 gen 1 and usb 2 specification and can provide two usb ports for purchasing the optional 3 front panel that provides two usb 3 gen 1 ports please contact the local dealer 19
Usb dx 10 nc 19
Usb dx 8 gnd 19
Usb dy 9 no pin 19
Vbus 8 d1 15 sstx2 19
After system restart go to bios setup to load factory defaults select load optimized defaults or 20
Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one damage to your devices may occur if the battery is 20
Always turn off your computer and unplug the power cord from the power outlet before clearing 20
Bat battery 20
Clr_cmos clear cmos jumper 20
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself 20
Manually configure the bios settings refer to chapter 2 bios setup for bios configurations 20
Of the battery the positive side should face up 20
Open normal 20
Or uncertain about the battery model 20
Pin no definition 20
Replaced with an incorrect model 20
Rtc power 20
Short clear cmos values 20
The battery provides power to keep the values such as bios configurations date and time information in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 20
The cmos values 20
Use this jumper to clear the bios configuration and reset the cmos values to factory defaults to clear the cmos values use a metal object like a screwdriver to touch the two pins for a few seconds 20
Used batteries must be handled in accordance with local environmental regulations 20
When installing the battery note the orientation of the positive side and the negative side 20
You may clear the cmos values by removing the battery 1 turn off your computer and unplug the power cord 2 unplug the the battery cable from the battery cable header and wait for one minute 3 plug in the battery cable 4 plug in the power cord and restart your computer 20
1 startup screen 21
Chapter 2 bios setup 21
2 the main menu 22
Advanced mode function keys 22
3 favorites f11 23
4 tweaker 24
Advanced cpu settings 24
Ccd contro 24
Core performance boos 24
Cpu clock control 24
Cpu clock ratio 24
Global c state contro 24
Power supply idle control 24
Svm mode 24
Advanced memory settings 25
Advanced voltage settings 25
Amd cpu ftpm 25
Cpu vcore dynamic vcore dvid vcore soc dynamic vcore soc dvid cpu vdd18 25
Cpu vddp dram voltage ch a b 25
D d standard timing control advanced timing control cad bus setup timing cad bus 25
Drivestrength databusconfiguration 25
Extremememoryprofile x m p 25
Memory subtimings 25
Smt mode 25
Spd info 25
System memory multiplier 25
Xmp high frequency support 25
5 settings 26
Ac back 26
High precision event timer 26
Platform power 26
Power loading 26
Resume by alarm 26
Soft off by pwr bttn 26
Wake on lan 26
Above 4g decoding 27
Display resolutio 27
Hd audio controller 27
Initial display output 27
Integrated graphic 27
Io ports 27
Onboard lan controller 27
Pciex16 bifurcation 27
Uma frame buffer siz 27
Uma mod 27
Chipset sata port 0 1 2 3 sata3 0 1 2 3 connectors 28
Ipv4 http support 28
Ipv4 pxe support 28
Ipv6 http support 28
Ipv6 pxe support 28
Legacy usb support 28
Mass storage devices 28
Network stack 28
Networkstackconfiguration 28
Nvme raid mode 28
Nvmeconfiguration 28
Port 60 64 emulation 28
Sata mode 28
Sataconfiguration 28
Usb mass storage driver support 28
Usbconfiguration 28
Xhci hand off 28
3dmark01 enhancement 29
Amd cbs 29
Cpu vcore cpu vddp dram channel a b voltage 3 v 5v 12v vcore soc 29
Intel r i211 gigabit network connection 29
Ipseccertificate 29
Leds in sleep hibernation and soft off states 29
Leds in system power on state 29
Media detect count 29
Miscellaneous 29
Pc health 29
Pcieslotconfiguration 29
Pxe boot wait time 29
Trusted computing 29
Fan control mode 30
Fan control use temperature input 30
Fan fail warning 30
Fan speed 30
Fan speed control 30
Fan stop 30
Monitor 30
Smart fan 5 30
Temperature 30
Temperature interval 30
Temperature warning 30
6 system info 31
Access level 31
Plug in devices info 31
Q flash 31
System date 31
System language 31
System time 31
7 boot 32
Boot option priorities 32
Bootup numlock state 32
Fast boot 32
Full screen logo show 32
Hard drive cd dvd rom drive floppy drive network device bbs priorities 32
Sata support 32
Security option 32
Csm support 33
Lan pxe boot option rom 33
Network stack driver support 33
Nvme support 33
Other pci device rom priority 33
Storage boot option control 33
Usb support 33
Vga support 33
Administrator password 34
Preferred operating mode 34
Secure boot 34
User password 34
8 save exit 35
Boot override 35
Exit without saving 35
Load optimized defaults 35
Loadprofiles 35
Save exit setup 35
Saveprofiles 35
1 configuring a raid set 36
1 configuringaraidset 36
A installing sata hard drive s in your computer 36
B configuringsatacontrollermodeinbiossetup 36
Before you begin please prepare the following items 36
C uefiraidconfiguration 36
Chapter 3 appendix 36
Configuringtheonboardsatacontroller 36
Raid levels 36
Install the sata raid ahci driver and operating system 37
Installing the operating system 37
2 drivers installation 38
Regulatory notices 39
United states of america federal communications commission statement 39
Contact us 44
Gigabyte esupport 44
To submit a technical or non technical sales marketing question please link to https esupport gigabyte com 44

Gigabyte X570 I AORUS PRO WIFI [4/44] X570 i aorus pro wifi motherboard layout

Содержание

Похожие устройства
