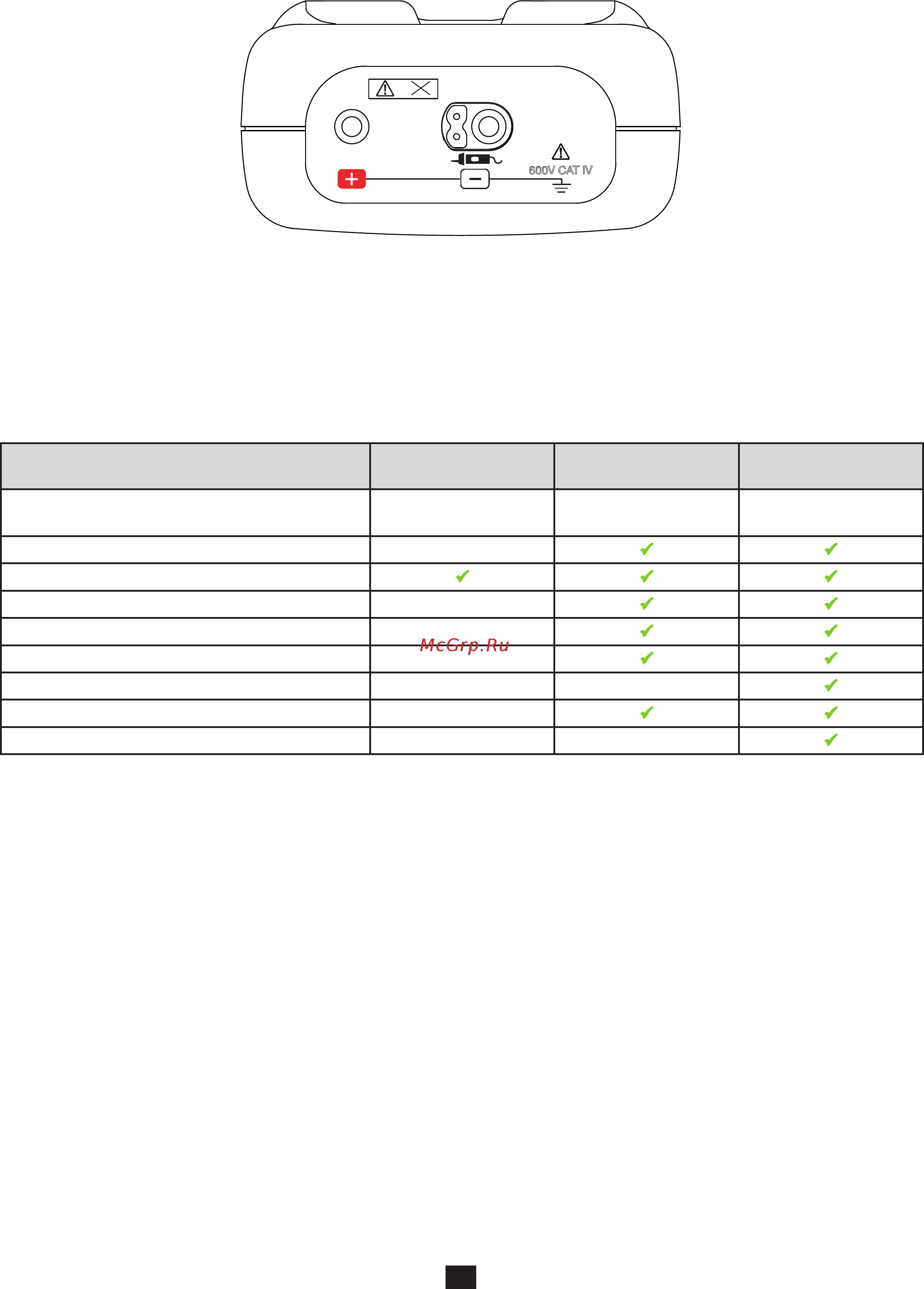

1.5. TERMINAL BLOCK

The terminal block has one + terminal and one - terminal that can be used to connect the remote control probe (optional accessory).

> 700V

600V CAT IV

1.6. FUNCTIONS OF THE INSTRUMENT

C.A 6522, C.A 6524, and C.A 6526 megohmmeters are portable measuring instruments with digital displays. They are powered

by batteries.

These instruments are used to check the safety of electrical installations. They are used to test new installations before they are

powered up, to check an existing installation in a power-off condition, or again to troubleshoot an installation.

C.A 6522 C.A 6524 C.A 6526

Test voltages for insulation measurements 250V - 500V - 1,000V 50V - 100V - 250V -

500V - 1,000V

50V - 100V - 250V -

500V - 1,000V

Calculation of ratios PI and DAR

  

Continuity measurement

  

Resistance measurement

  

Programmable alarms

  

Frequency measurement

  

Capacitance measurement

  

Storage of the measurements

  

Bluetooth

  

In continuity testing, the instruments are protected against external voltages without a fuse.

1.7. TEST BUTTON

The TEST button is used to make insulation measurements.
