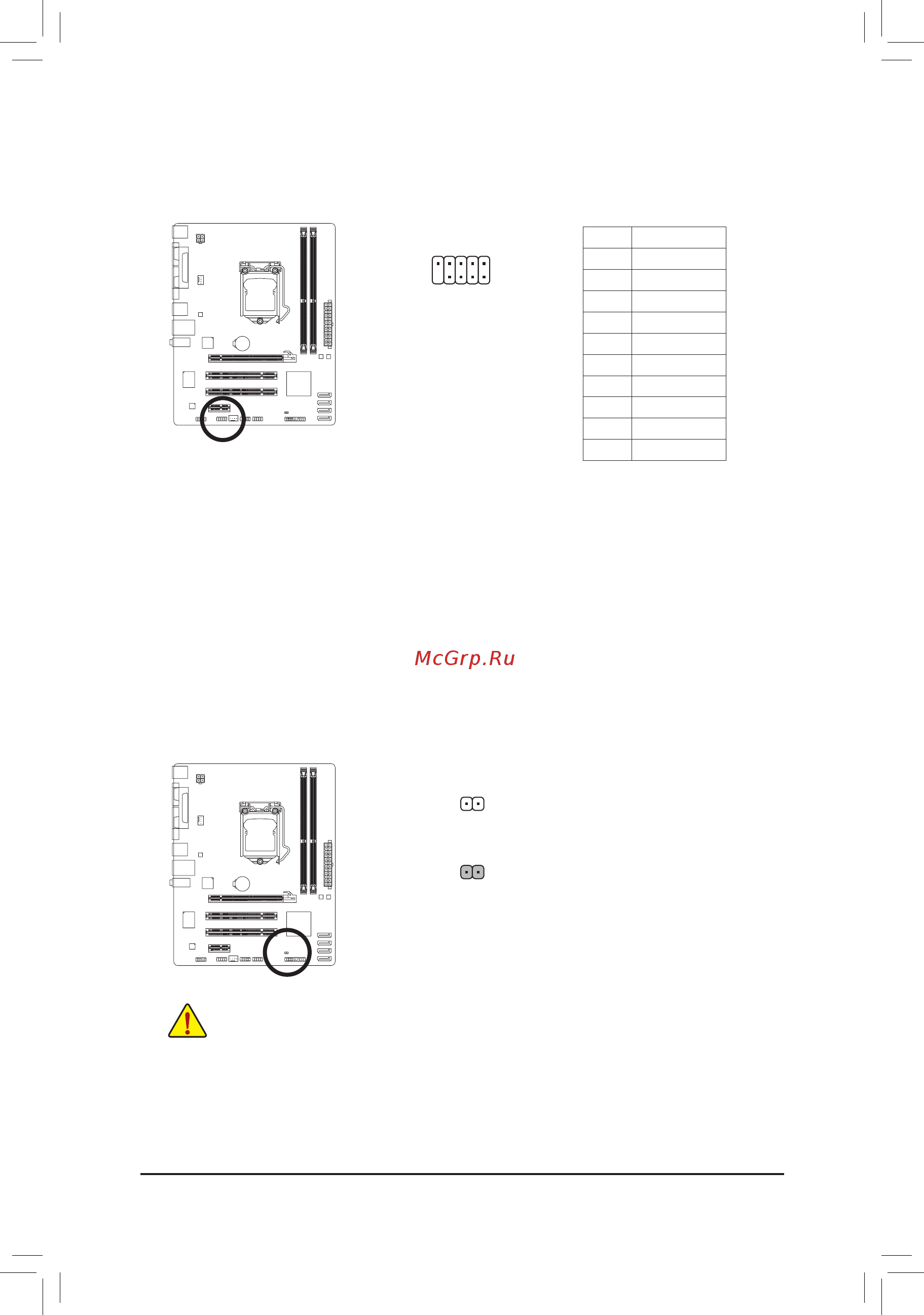

9) COM (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the op-

tional COM port cable, please contact the local dealer.

Pin No. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

10

9

2

1

10) CLR_CMOS (Clear CMOS Jumper)

Use this jumper to clear the CMOS values (e.g. date information and BIOS congurations) and reset the

CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to

touch the two pins for a few seconds.

Always turn off your computer and unplug the power cord from the power outlet before clear- •

ing the CMOS values.

After system restart, go to BIOS Setup to load factory defaults (select Load Optimized De- •

faults) or manually congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS

congurations).

Open: Normal

Short: Clear CMOS Values
