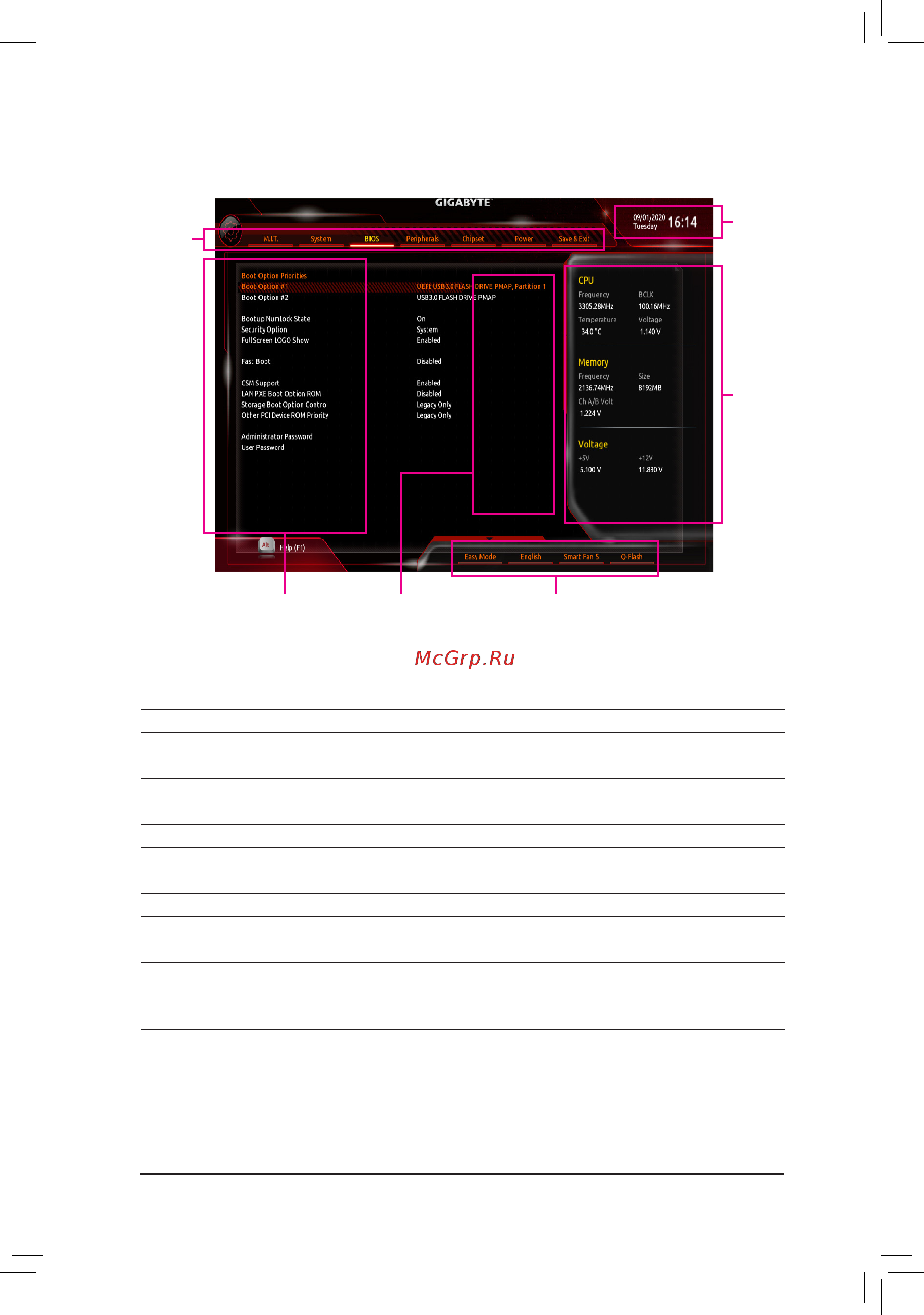

2-2 The Main Menu
Hardware Infor-
mation
Conguration Items
Current Settings
Setup Menus
System Time
Quick Access Bar allows you to enter Easy Mode, select
BIOS default language, congure fan settings, or enter
Q-Flash.
Classic Setup Function Keys
<
f
><
g
> Move the selection bar to select a setup menu
<
h
><
i
> Move the selection bar to select an conguration item on a menu
<Enter> Execute command or enter a menu
<
+
>/<Page Up> Increase the numeric value or make changes
<
-
>/<Page Down> Decrease the numeric value or make changes
<F1> Show descriptions of the function keys
<F2> Switch to Easy Mode
<F5> Restore the previous BIOS settings for the current submenus
<F7> Load the Optimized BIOS default settings for the current submenus
<F8> Access the Q-Flash utility
<F9> Display system information
<F10> Save all the changes and exit the BIOS Setup program
<F12> Capture the current screen as an image and save it to your USB drive
<Esc> Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
- 21 -
