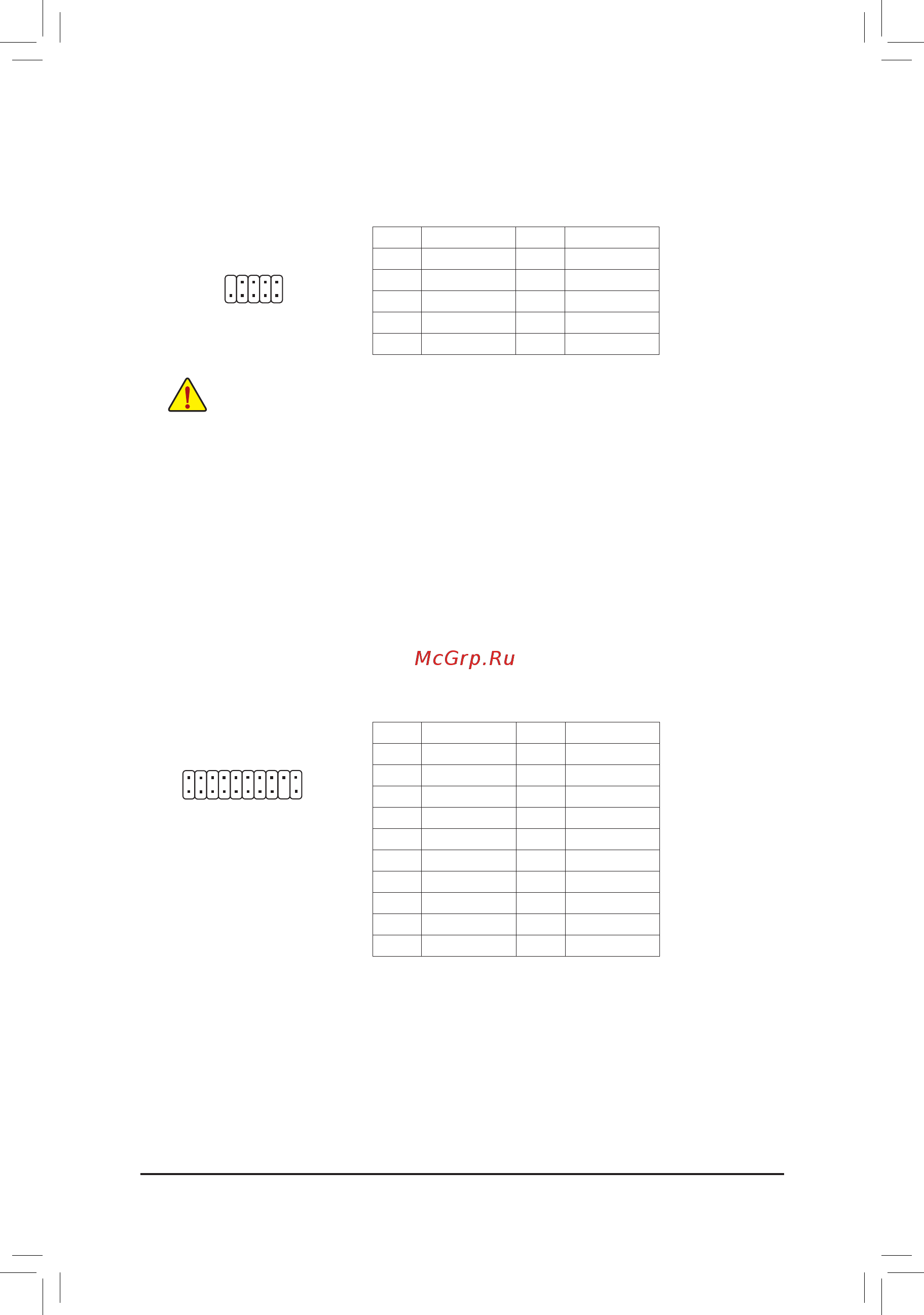

13) TPM (Trusted Platform Module Header)

You may connect a TPM (Trusted Platform Module) to this header.

20

19

2

1

DEBUG

PORT

G.QBOFM

Pin No. Denition Pin No. Denition

1 LCLK 11 LAD0

2 GND 12 GND

3 LFRAME 13 NC

4 No Pin 14 NC

5 LRESET 15 SB3V

6 NC 16 SERIRQ

7 LAD3 17 GND

8 LAD2 18 NC

9 VCC3 19 NC

10 LAD1 20 NC

12) F_USB1/F_USB2 (USB 2.0/1.1 Headers)

 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Pin No. Denition Pin No. Denition

1 Power (5V) 6 USB DY+

2 Power (5V) 7 GND

3 USB DX- 8 GND

4 USB DY- 9 No Pin

5 USB DX+ 10 NC

• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.

• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord

from the power outlet to prevent damage to the USB bracket.

10

9

2

1

- 17 -
