Gigabyte GA-AB350M-DS3H V2 [39/42] 2 drivers installation
![Gigabyte GA-AB350M-DS3H V2 [39/42] 2 drivers installation](/views2/1669300/page39/bg27.png)
• Beforeinstallingthedrivers,rst install the operating system. (The following instructions use
Windows 10 as the example operating system.)
• After installing the operating system, insert the motherboard driver disk into your optical drive. Click
on the message "Tap to choose what happens with this disc" on the top-right corner of the screen
andselect"RunRun.exe." (Or go to My Computer, double-click the optical drive and execute the
Run.exeprogram.)
3-2 Drivers Installation

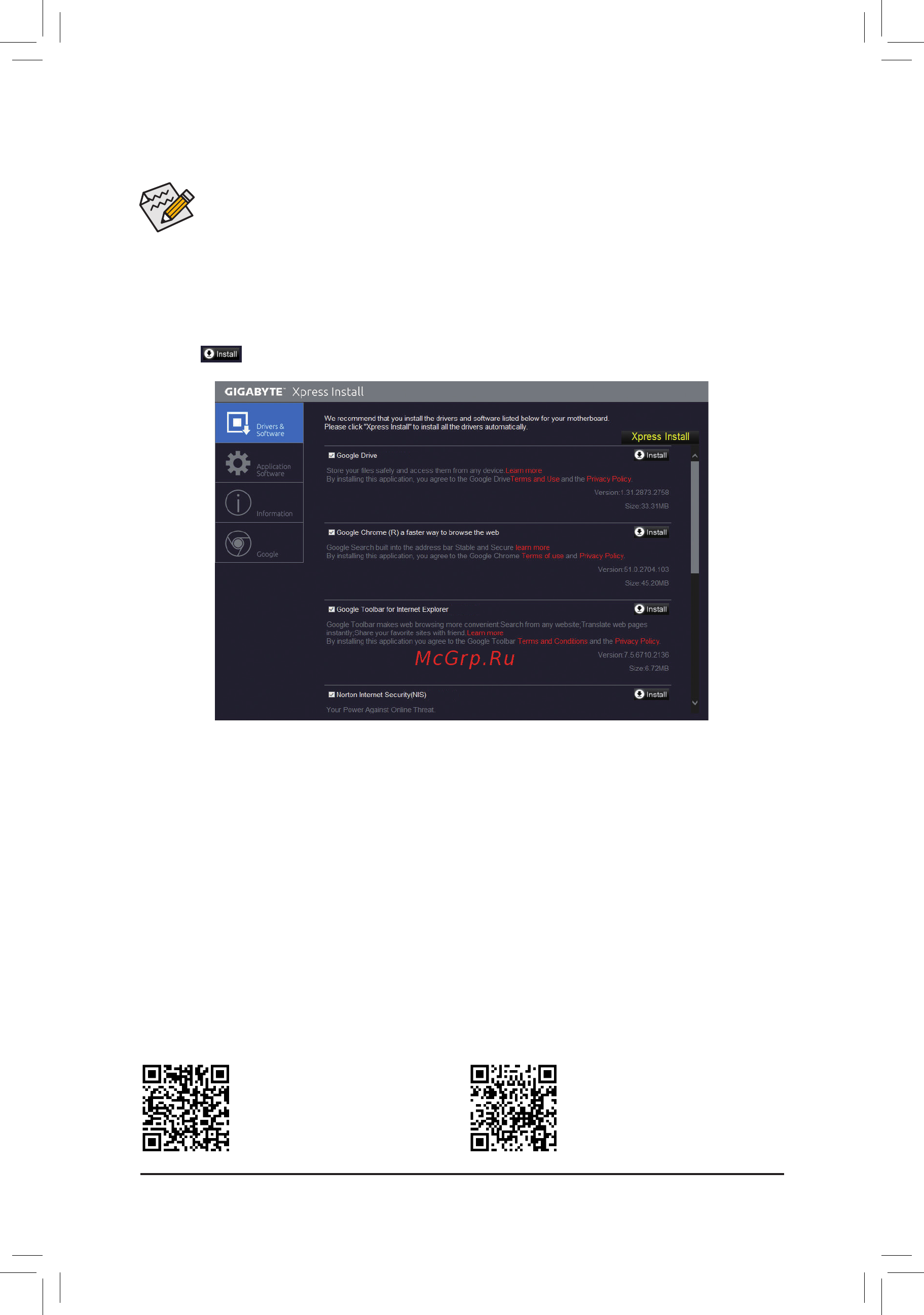

"Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to
install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click
the arrow
icon to individually install the drivers you need.
Please visit GIGABYTE's website for
more software information.
Please visit GIGABYTE's website for
more troubleshooting information.
- 39 -
