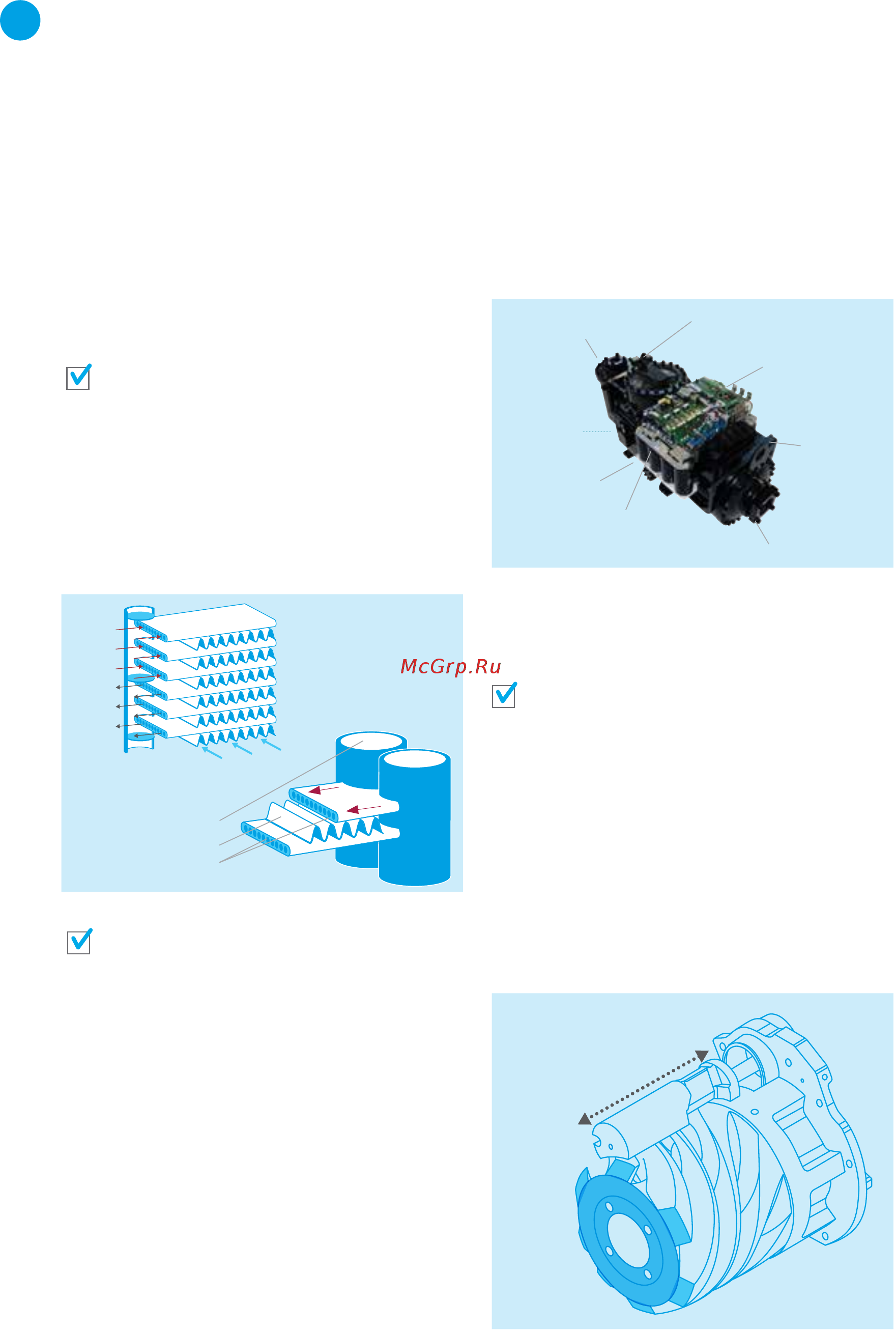

![Daikin EWAD440TZ-XLB2 [3/8] Ewad tzb chiller series](/views2/1670363/page3/bg3.png)
3
Desuperheat
+
Condensing phase
+
Condensing phase
+
Subcooling
Why choose
EWAD-TZB chiller series?
Suction port
Aluminium
cooling plate
Variable Volume Ratio (VVR)
Discharge port
Economizer
& Liquid
injection ports
Capacitors
Inverter
Liquid inlet
(VFD cooling)
VVR (Variable Volume Ratio)
The operating conditions of a chiller are subjected
to sensible changes due to the variation of ambient
temperature and load request from the plant.
Screw compressors increase the pressure of the
refrigerant by forcing it into a progressive smaller
volume, from the suction to the discharge port.
Once that the geometry of the compressor is defined
the volume ratio is also defined.
Daikin compressors can modify their own geometry
thanks to variable volume ratio (VVR).
The volume ratio will change by moving the sliding
valves. VVR changes the point at which the gas leaves
the compressor, and therefore changes the pressures
at discharge which will be optimal at any condition.
Top class efficiency:
EER up to 3.6
ESEER up to 5.5
Best choice for every application
Rapid payback: 1 year for process cooling and 3 years for comfort cooling applications
New generation
of Daikin inverter screw
compressors
› Integrated inverter, refrigerant cooled
› Variable volume ratio technology
Microchannel condenser coils
› High thermal efficiency
› Small volume, resulting in a small refrigerant charge
› Light & durable design
› Easy cleaned
1
Refrigerant manifolds
Enhanced aluminium fins
Flat microchannel tubes
Refrigerant
Refrigerant
Air flow
Max.
compression
ratio
Min.
compression
ratio
