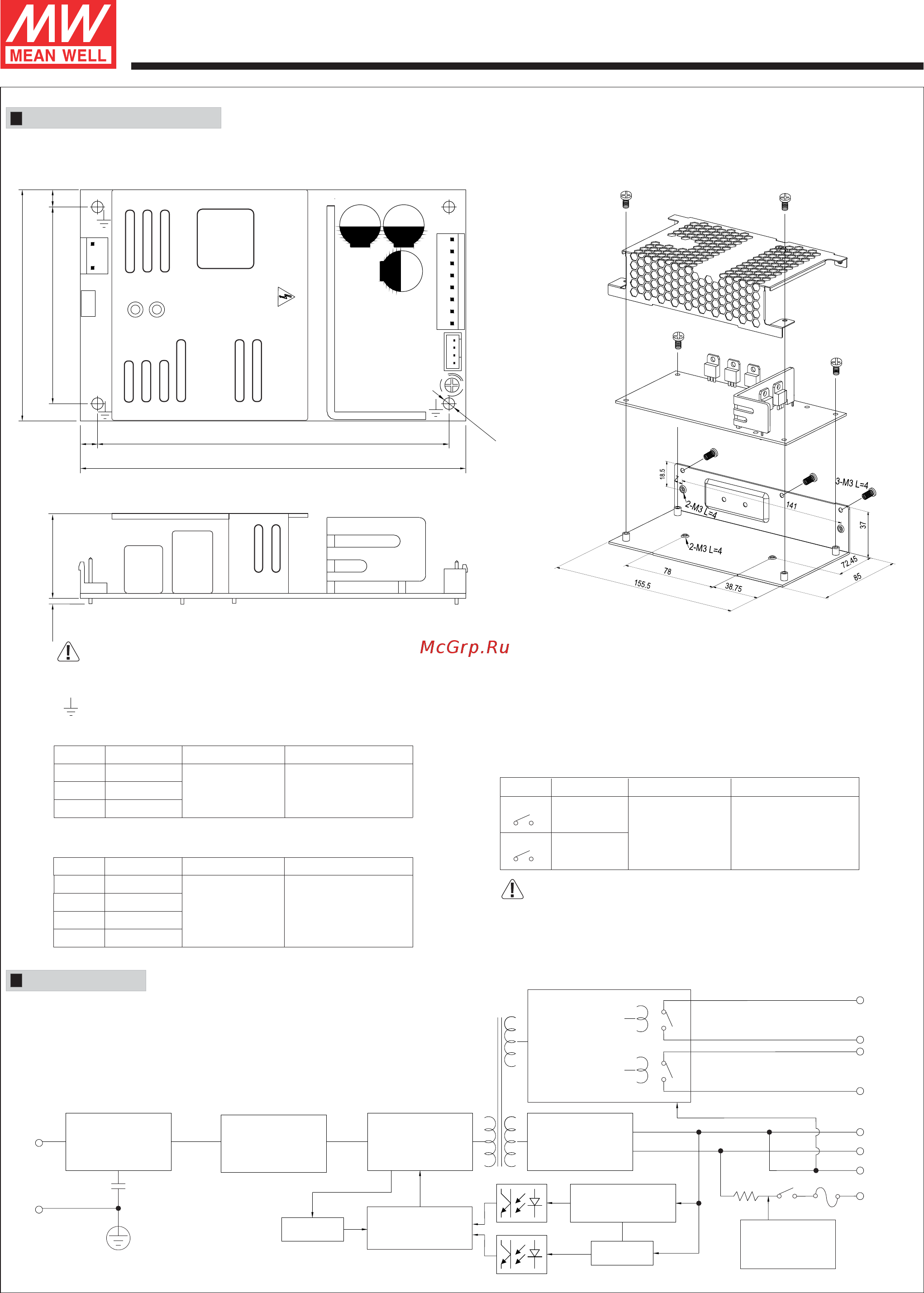

Mechanical SpecificationMechanical Specification
Block Diagram
CIRCUIT
CIRCUIT
DETECTION
ALARM
RL1
RL2
O.L.P.
EMI FILTER
&
RECTIFIER
POWER
SWITCHING
FILTER
&
RECTIFIERS
+V
Bat. +
Battery Charger
&
Back up Control
AC OK
-V
Bat. -
Bat. Low
CONTROL
PWM
O.V.P.
DC Output Connector (CN2) : JST B8P-VH or equivalent
Pin No.
1,2
3,4
5,6
7,8
Assignment
-V
+V
Bat+
Bat-
Mating Housing
JST VHR
or equivalent
Terminal
JST SVH-21T-P1.1
or equivalent
AC Input Connector (CN1) : JST B3P-VH or equivalent
Pin No.
1
2
3
Assignment
AC/N
No Pin
AC/L
Mating Housing
JST VHR JST SVH-21T-P1.1
or equivalent or equivalent
Terminal
JST XHP
JST SXH-001T-P0.6
Alarm Output Connector(CN3) : JST B4B-XH or equivalent
Pin No.
1
3
2
4
Mating Housing
or equivalent
Terminal
or equivalent
Assignment
AC OK
Bat. Low
1.-V and Bat- can not be shorted.
160W Single Output with Battery Charger(UPS Function)
PSC-160 series
File Name:PSC-160-SPEC 2014-07-01
5.6
141.2
152.4
3max.
CN2
1
CN1
FS1
3
2
1
8
7
6
4
3
2
5
CN3
4- 3.8ψ
1
2
3
4
5.6
64.75
76.2
32max.
SVR1
AC FUSE
T 4.0A/250V
HS3
PFC
CIRCUIT
I/P
FG
Cover:
No.231A-T
L-Bracket:
No.231A-D
1.HS1,HS3 can not be shorted.
2.HS1,HS3 must have safety isolation distance with system case.
HS1
:Grounding required
Unit:mm
