Features
MPM-05/10
MPM-15/20
MPM-30 MPM-30-xST
UL/CUL/TUV/CB/CE pending
35
Green Open Frame

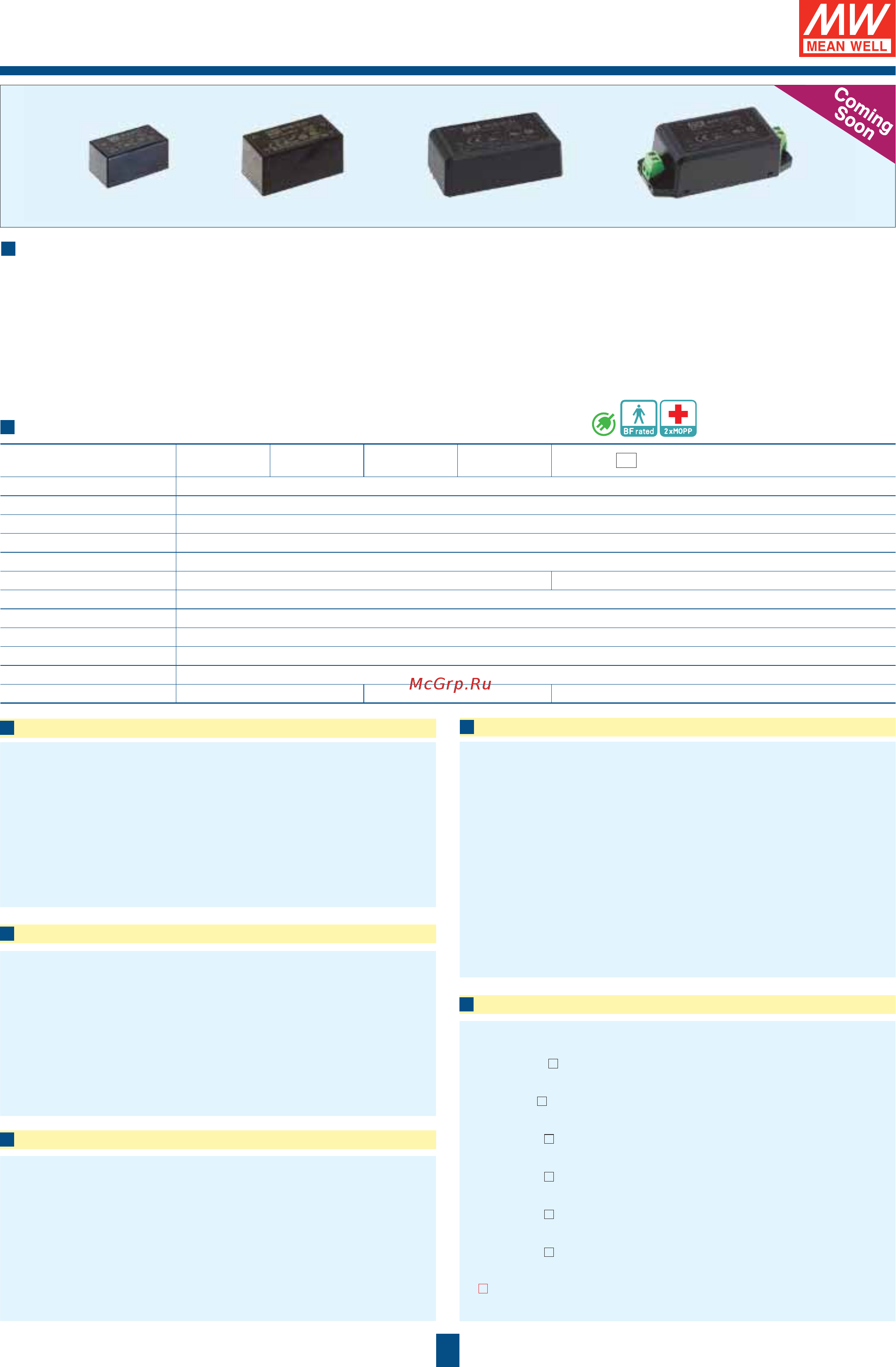

5~30W Medical Miniature Encapsulated Type
• Universal AC input / Full range
• Medical safety (2xMOPP)
• Suitable for BF application with appropriate system consideration
• Protections: Short circuit / Overload / Over voltage / Over temp.
• Extremely low leakage current
• No load power consumption <0.075W
• Isolation Class II
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. MPM-05 MPM-10 MPM-15 MPM-20 MPM-30-x ST
AC input voltage range 80~264VAC
Leakage current <80ȝ$DW9$&
AC inrush current (max.) Cold start, 25A at 115VAC, 45A at 230VAC
Overload protection 105%~160% hiccup mode, auto-recovery
Over voltage protection 105%~135% shut down o/p voltage
Setup, rise, hole up time 1000ms, 30ms, 40ms at 230VAC 500ms, 30ms, 40ms at 230VAC
Withstand voltage I/P-O/P: 4kVAC
Working temperature
-30~+80°C (refer to output derating curve)
Safety standards Design refer to ANSI/AAMI ES60601-1, TUV EN60601-1
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 4 pins
Dimension (LxWxH)(mm) 45.7x 25.4x 21.5 52.4x 27.2x 24 PCB mounting: 69.5x 39x 24; Screw I/O: 91x 39.5x 28.5
20W MPM-20
5W MPM-05
10W MPM-10
15W MPM-15
30W MPM-30
Model No. Output Tol. R&N Effi.
MPM-05-3.3 3.3V, 0~1.25A ±2.5% 200mV 70%
MPM-05-5 5V, 0~1A ±2.5% 200mV 76%
MPM-05-12 12V, 0~0.42A ±2.5% 200mV 80%
MPM-05-15 15V, 0~0.33A ±2.5% 200mV 81%
MPM-05-24 24V, 0~0.23A ±2.5% 200mV 82%
Model No. Output Tol. R&N Effi.
MPM-20-3.3 3.3V, 0~4.5A ±2.5% 200mV 76%
MPM-20-5 5V, 0~4A ±2.5% 200mV 79%
MPM-20-12 12V, 0~1.8A ±2.5% 200mV 84%
MPM-20-15 15V, 0~1.4A ±2.5% 200mV 84%
MPM-20-24 24V, 0~0.9A ±2.5% 200mV 85%
Model No. Output Tol. R&N Effi.
MPM-30-3.3
3.3V, 0~6A ±2% 80mV 80%
MPM-30-5
5V, 0~6A ±2% 80mV 83%
MPM-30-12
12V, 0~2.5A ±2% 120mV 88%
MPM-30-15
15V, 0~2A ±2% 150mV 89%
MPM-30-24
24V, 0~1.3A ±2% 240mV 89%
MPM-30-48
48V, 0~0.625A ±2% 300mV 91%
= Blank, ST;
= Blank: PCB mounting, ST: Screw terminal style
Model No. Output Tol. R&N Effi.
MPM-10-3.3 3.3V, 0~2.5A ±2.5% 200mV 75%
MPM-10-5 5V, 0~2A ±2.5% 200mV 78%
MPM-10-12 12V, 0~0.85A ±2.5% 200mV 82%
MPM-10-15 15V, 0~0.67A ±2.5% 200mV 82%
MPM-10-24 24V, 0~0.42A ±2.5% 200mV 83%
Model No. Output Tol. R&N Effi.
MPM-15-3.3 3.3V, 0~3.5A ±2.5% 200mV 75%
MPM-15-5 5V, 0~3A ±2.5% 200mV 79%
MPM-15-12 12V, 0~1.25A ±2.5% 200mV 84%
MPM-15-15 15V, 0~1A ±2.5% 200mV 84%
MPM-15-24 24V, 0~0.63A ±2.5% 200mV 85%
• -30~+80
o
C wide range working temperature
• Withstand 5G vibration test
• Miniature size, high power density
• Fully isolated plastic case
• Pass LPS
• 3 years warranty
