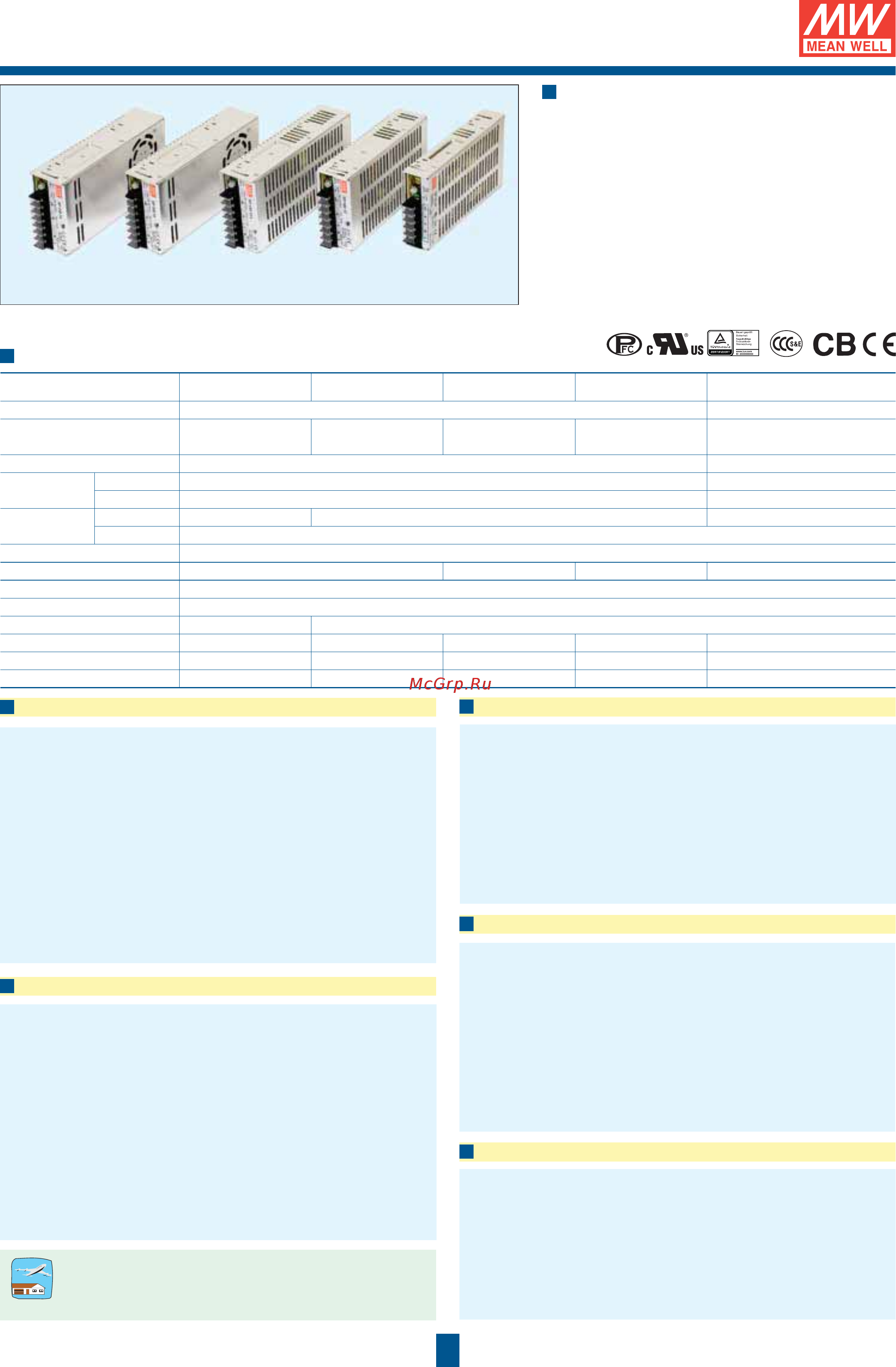

Enclosed-PFC
75~240W Single Output
Features
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage /
Over temperature (SP-150 / 200 / 240)
• Cooling by free air convection (SP-75 / 100 / 150)
• Forced air cooling by built-in DC fan (SP-200 / 240)
• Optional remote ON/OFF control (SP-75~200)
• Built-in fan speed control (SP-200)
• Built-in fan ON/OFF control (SP-240)
• 3 years warranty
SP-75SP-100SP-150SP-200
SP-240
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. SP-75 SP-100 SP-150 SP-200 SP-240
AC input voltage range 85~264VAC; 120~370VDC 88~264VAC; 124~370VDC
AC inrush current (max.)
Cold start,
45A at 230VAC
Cold start,
35A at 230VAC
Cold start,
45A at 230VAC
Cold start,
50A at 230VAC
Cold start, 40A at 230VAC
DC adjustment range -5%~+10% rated output voltage ±15% rated output voltage
Overload
protection
Range 105%~150% 105%~135%
Type Constant current limiting, auto-recovery Hiccup mode, auto-recovery
Over voltage
protection
Range 115%~135% 110%~135% 120%~150%
Type Shut off, AC recycle to re-start
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature -10~+60°C -10~+55°C -10~+60°C -20~+70°C
Safety standards UL60950-1, TUV EN60950-1, GB4943(SP-200 only) approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, GB9254(SP-200 only)
Connection 5P / 9.5mm pitch 7P / 9.5mm pitch terminal block with cover
Dimension (LxWxH)(mm) 179x 97x 33 179x 99x 45 199x 99x 50 199x 99x 50 190x 93x 50
Case No. 920A 915A 916A 916B 987A
Packing 20pcs/12.0kg 20pcs/14.3kg 20pcs/16.4kg 20pcs/17.9kg 18pcs/15.4kg
75W SP-75
100W SP-100
Model No. Output Tol. R&N Effi.
SP-75-3.3 3.3V, 0~15A ±2% 80mV 70.0%
SP-75-5 5V, 0~15A ±2% 80mV 76.0%
SP-75-7.5 7.5V, 0~10A ±2% 80mV 79.0%
SP-75-12 12V, 0~6.3A ±2% 80mV 81.0%
SP-75-13.5 13.5V, 0~5.6A ±2% 80mV 82.0%
SP-75-15 15V, 0~5.0A ±2% 80mV 82.0%
SP-75-24 24V, 0~3.2A ±1% 100mV 83.0%
SP-75-27 27V, 0~2.8A ±1% 100mV 83.0%
SP-75-48 48V, 0~1.6A ±1% 100mV 83.0%
Model No. Output Tol. R&N Effi.
SP-100-3.3 3.3V, 0~20.0A ±2% 100mV 75.0%
SP-100-5 5V, 0~20.0A ±2% 100mV 79.0%
SP-100-7.5 7.5V, 0~13.5A ±2% 100mV 82.0%
SP-100-12 12V, 0~8.50A ±2% 100mV 82.5%
SP-100-13.5 13.5V, 0~7.50A ±2% 100mV 83.0%
SP-100-15 15V, 0~6.70A ±2% 100mV 84.0%
SP-100-24 24V, 0~4.20A ±1% 150mV 87.0%
SP-100-27 27V, 0~3.80A ±1% 150mV 86.0%
SP-100-48 48V, 0~2.10A ±1% 250mV 84.0%
200W SP-200
Model No. Output Tol. R&N Effi.
SP-200-3.3 3.3V, 0~40.0A ±2% 100mV 69.0%
SP-200-5 5V, 0~40.0A ±2% 100mV 76.0%
SP-200-7.5 7.5V, 0~26.7A ±2% 100mV 78.5%
SP-200-12 12V, 0~16.7A ±2% 100mV 84.0%
SP-200-13.5 13.5V, 0~14.9A ±2% 100mV 84.0%
SP-200-15 15V, 0~13.4A ±2% 100mV 84.0%
SP-200-24 24V, 0~8.40A ±1% 150mV 85.0%
SP-200-27 27V, 0~7.50A ±1% 150mV 85.0%
SP-200-48 48V, 0~4.20A ±1% 250mV 85.0%
240W SP-240
Model No. Output Tol. R&N Effi.
SP-240-5 5V, 0~45A ±2% 150mV 79.0%
SP-240-7.5 7.5V, 0~32A ±2% 150mV 83.0%
SP-240-12 12V, 0~20A ±1% 150mV 86.0%
SP-240-15 15V, 0~16A ±1% 150mV 86.0%
SP-240-24 24V, 0~10A ±1% 150mV 87.0%
SP-240-30 30V, 0~8.0A ±1% 150mV 88.0%
SP-240-48 48V, 0~5.0A ±1% 150mV 89.0%
150W SP-150
Model No. Output Tol. R&N Effi.
SP-150-3.3 3.3V, 0~30.0A ±2% 100mV 73.0%
SP-150-5 5V, 0~30.0A ±2% 100mV 77.5%
SP-150-7.5 7.5V, 0~20.0A ±2% 100mV 81.0%
SP-150-12 12V, 0~12.5A ±2% 100mV 84.0%
SP-150-13.5 13.5V, 0~11.2A ±2% 100mV 84.0%
SP-150-15 15V, 0~10.0A ±2% 100mV 85.0%
SP-150-24 24V, 0~6.30A ±1% 150mV 85.0%
SP-150-27 27V, 0~5.60A ±1% 150mV 85.0%
SP-150-48 48V, 0~3.20A ±1% 250mV 85.0%
