Q.A.
Who can provide you the best services and be a trustworthy
partner in the power industry?
— "MEAN WELL" tries to be —
8

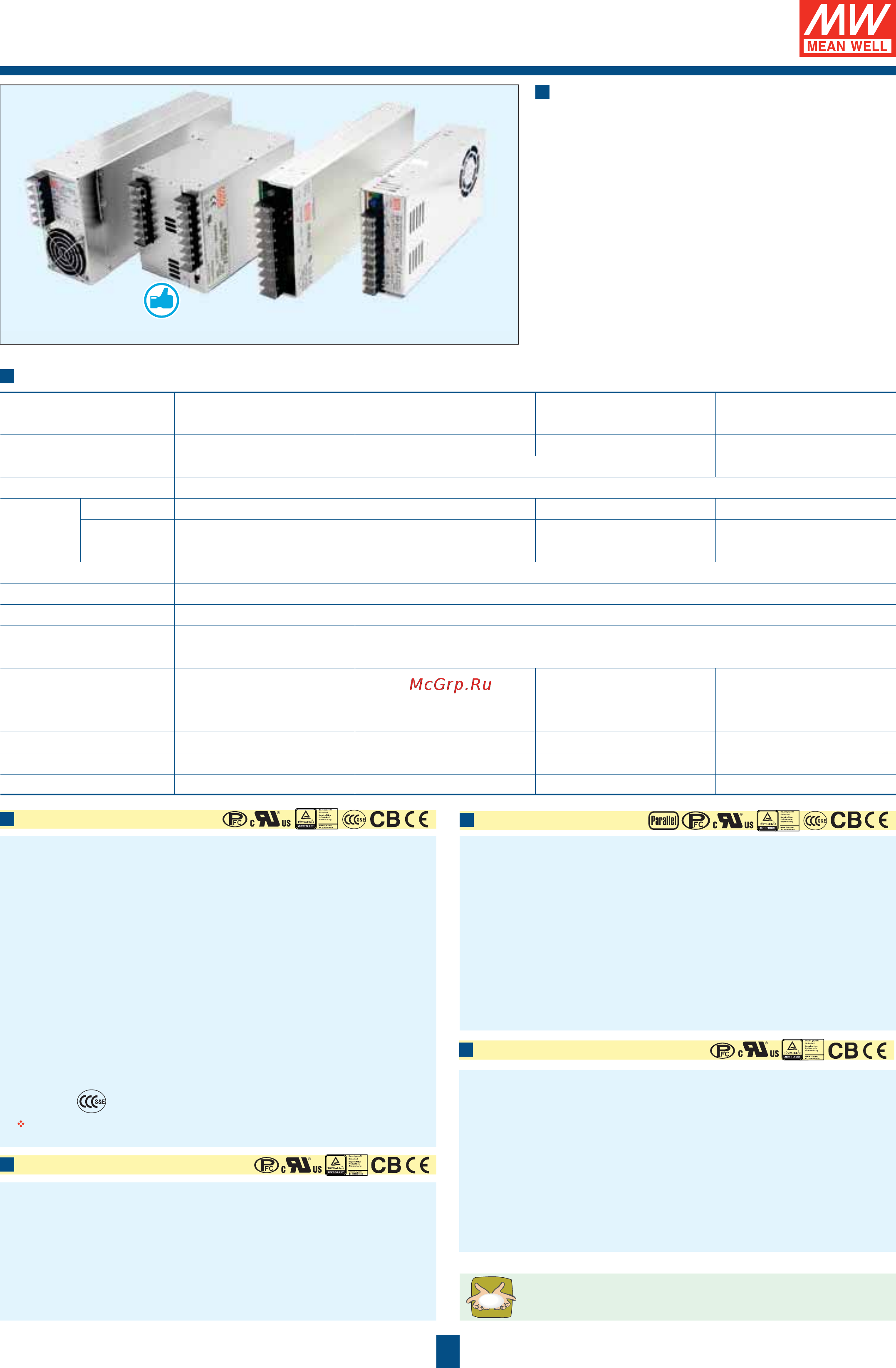

Features
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage /
Over temperature
• Forced air cooling by built-in DC fan
• Built-in fan speed control (SP-320)
• Built-in remote sense function and ON/OFF control
(SP-480/750 & PSP-600)
• Current sharing up to 2400W (3+1) (PSP-600)
• With DC OK signal output (PSP-600)
• With PG/PF signal output (SP-750)
• 3 years warranty
SP-480PSP-600SP-750
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. SP-320 SP-480 PSP-600 SP-750
AC input voltage range 88~264VAC 85~264VAC 88~264VAC 90~264VAC
AC inrush current (max.) Cold start, 40A at 230VAC Cold Start, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Overload
protection
Range 105%~135% 105%~145% 105%~135% 105%~125%
Type
Hiccup mode,
auto-recovery
Constant current limiting,
auto-recovery
Constant current limiting,
auto-recovery
Constant current limiting,
hiccup after 3sec.
Over voltage protection 115%~145% 115%~140%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute
Working temperature -20~+65°C -20~+60°C
Safety standards UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2(SP-480/750), GB9254 (SP-320 only)
Connection
9P / 9.5mm pitch terminal
block with cover
9P / 11mm pitch terminal
block with cover
7+8P / 9.5mm pitch
terminal block with cover
5P / 10mm pitch terminal
block with cover for input;
copper pillars for output
Dimension (LxWxH)(mm) 215x115x50 278x127x43 170x120x93 278x127x63.5
Case No. 912G 929A 910A 919A
Packing 12pcs / 14.0kg 6pcs / 11.3kg 8pcs / 15.5kg 6pcs / 18.4kg
Enclosed-PFC
320~750W Single Output
SP-480 Series
Model No. Output Tol. R&N Effi.
SP-480-3.3 3.3V, 0~85A ±2.0% 80mV 73%
SP-480-5 5V, 0~85A ±2.0% 80mV 79%
SP-480-12 12V, 0~43A ±1.5% 120mV 85%
SP-480-15 15V, 0~35A ±1.5% 150mV 85%
SP-480-24 24V, 0~22A ±1.0% 150mV 87%
SP-480-48 48V, 0~11A ±1.0% 240mV 89%
PSP-600 Series
SP-750 Series
Model No. Output Tol. R&N Effi.
SP-750-5 5V, 0~120A ±2% 120mV 80%
SP-750-12 12V, 0~62.5A ±1% 120mV 85%
SP-750-15 15V, 0~50.0A ±1% 120mV 87%
SP-750-24 24V, 0~31.3A ±1% 120mV 89%
SP-750-27 27V, 0~27.8A ±1% 120mV 89%
SP-750-48 48V, 0~15.7A ±1% 120mV 90%
SP-320 Series
Model No. Output Tol. R&N Effi.
*SP-320-3.3 3.3V, 0~60.0A ±1% 150mV 74%
SP-320-5 5V, 0~55.0A ±2% 150mV 79%
*SP-320-5PNC 5V, 0~55.0A ±2% 150mV 80%
SP-320-7.5 7.5V, 0~40.0A ±2% 150mV 83%
SP-320-12 12V, 0~25.0A ±1% 150mV 86%
SP-320-13.5 13.5V, 0~22.0A ±1% 150mV 86%
SP-320-15 15V, 0~20.0A ±1% 150mV 86%
SP-320-24 24V, 0~13.0A ±1% 150mV 87%
SP-320-27 27V, 0~11.7A ±1% 200mV 88%
*SP-320-36 36V, 0~8.80A ±1% 220mV 87%
SP-320-48 48V, 0~6.70A ±1% 240mV 89%
* Without models
SP-320-5PNC with conformal coating and high ambient temperature operation
ability is suitable for LED moving sign applications, MOQ required.
SP-320
Model No. Output Tol. R&N Effi.
PSP-600-5 5V, 0~80A ±2% 180mV 79%
PSP-600-12 12V, 0~50A ±1% 240mV 84%
PSP-600-13.5 13.5V, 0~44.5A ±1% 240mV 85%
PSP-600-15 15V, 0~40A ±1% 240mV 85%
PSP-600-24 24V, 0~25A ±1% 240mV 86%
PSP-600-27 27V, 0~22.2A ±1% 240mV 86%
PSP-600-48 48V, 0~12.5A ±1% 300mV 87%
