![MEAN WELL HEP-100-36A [17/112] Enclosed pfc](/img/pdf.png)

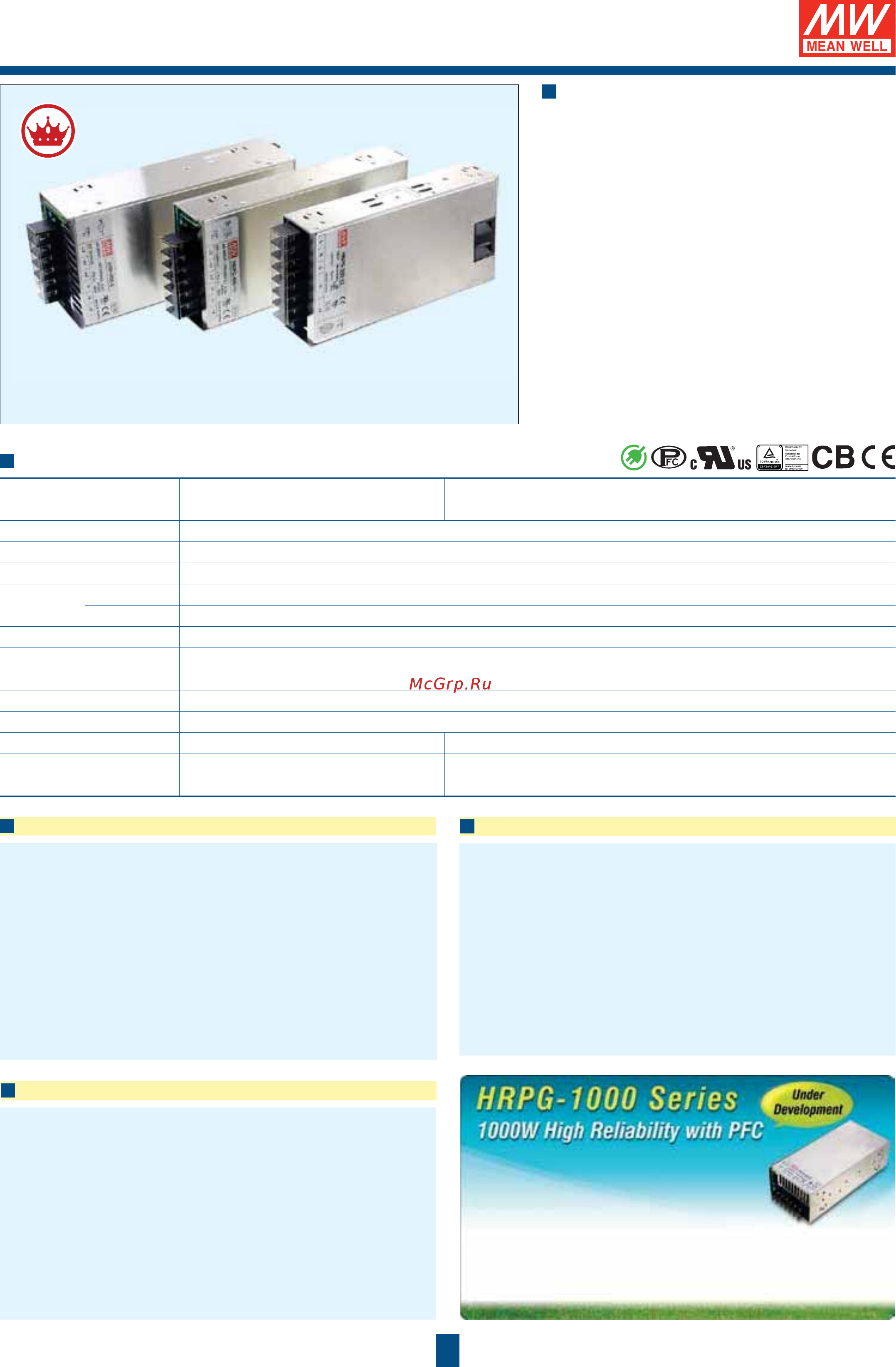

MEAN WELL HEP-100-36A [17/112] Enclosed pfc
![MEAN WELL RPS-400-36-SF [17/112] Enclosed pfc](/views2/1669843/page17/bg11.png)
14
Features
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage /
Over temperature
• Built-in constant current limiting circuit
• Built-in remote sense function
• Built-in DC OK signal
• No load power consumption<0.5W (HRPG-300 / 450)
• No load power consumption<0.75W (HRPG-600)
• Built-in remote ON/OFF control & 5V / 0.3A standby
output (HRPG series)
• Built-in current sharing (HRPG-600-24 / 36 / 48)
• Forced air cooling by built-in DC fan
• 1U low profile (HRP
ƒ-300 / 450)
• 5 years warranty
HRP-600
HRPG-600
HRP-300
HRPG-300
HRP-450
HRPG-450
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No.
HRP
ƒ-300 HRPƒ-450 HRPƒ-600
AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range ±15% rated output voltage
Overload
Protection
Range 105%~135%
Type Constant current limiting, auto-recovery
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature
-40~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection 7P/11mm pitch terminal block with cover 3+6P/10&11mm pitch terminal block with cover
Dimension (LxWxH)(mm) 199x105x41 218x105x41 218x105x63.5
Case No. 980A 995A 977A
Enclosed-PFC
300~600W High Reliability
450W HRPƒ-450
600W HRP
ƒ-600
300W HRP
ƒ-300
Model No. Output Tol. R&N Effi.
HRP
ƒ-450-3.3
3.3V, 0~90A
±2% 80mV 80.0%
HRP
ƒ-450-5
5V, 0~90A
±2% 80mV 83.0%
HRP
ƒ-450-7.5
7.5V, 0~60A
±2% 100mV 86.5%
HRP
ƒ-450-12
12V, 0~37.5A
±1% 120mV 88.0%
HRP
ƒ-450-15
15V, 0~30A
±1% 150mV 89.0%
HRP
ƒ-450-24
24V, 0~18.8A
±1% 150mV 88.0%
HRP
ƒ-450-36
36V, 0~12.5A
±1% 240mV 89.0%
HRP
ƒ-450-48
48V, 0~9.5A
±1% 240mV 89.5%
ƒ=blank, G; blank: basic function, G: with 5Vsb & no load <0.5W
Model No. Output Tol. R&N Effi.
HRP
ƒ-600-3.3
3.3V, 0~120A
±2% 100mV 78.5%
HRP
ƒ-600-5
5V, 0~120A
±2% 100mV 82.0%
HRP
ƒ-600-7.5
7.5V, 0~80A
±2% 100mV 87.0%
HRP
ƒ-600-12
12V, 0~53A
±1% 120mV 88.0%
HRP
ƒ-600-15
15V, 0~43A
±1% 150mV 88.0%
HRP
ƒ-600-24
24V, 0~27A
±1% 150mV 88.0%
HRP
ƒ-600-36
36V, 0~17.5A
±1% 200mV 89.0%
HRP
ƒ-600-48
48V, 0~13A
±1% 240mV 89.0%
ƒ=blank, G; blank: basic function, G: with 5Vsb & no load <0.75W
Model No. Output Tol. R&N Effi.
HRP
ƒ-300-3.3
3.3V, 0~60A ±2.5% 80mV 80.0%
HRP
ƒ-300-5
5V, 0~60A ±2.0% 90mV 82.0%
HRP
ƒ-300-7.5
7.5V, 0~40A ±2.0% 100mV 86.0%
HRP
ƒ-300-12
12V, 0~27A ±1.0% 120mV 88.0%
HRP
ƒ-300-15
15V, 0~22A ±1.0% 150mV 88.0%
HRP
ƒ-300-24
24V, 0~14A ±1.0% 150mV 87.0%
HRP
ƒ-300-36
36V, 0~9A ±1.0% 250mV 88.0%
HRP
ƒ-300-48
48V, 0~7A ±1.0% 250mV 89.0%
ƒ=blank, G; blank: basic function, G: with 5Vsb & no load <0.5W
• Universal AC input / Full range
• Withstand 300VAC surge input for 5 seconds
• No load power consumption <0.75W
• Output models: 12V / 24V / 36V / 48V
• Dimension(LxWxH): 218x 105x 63.5 mm
• 5 years warranty
