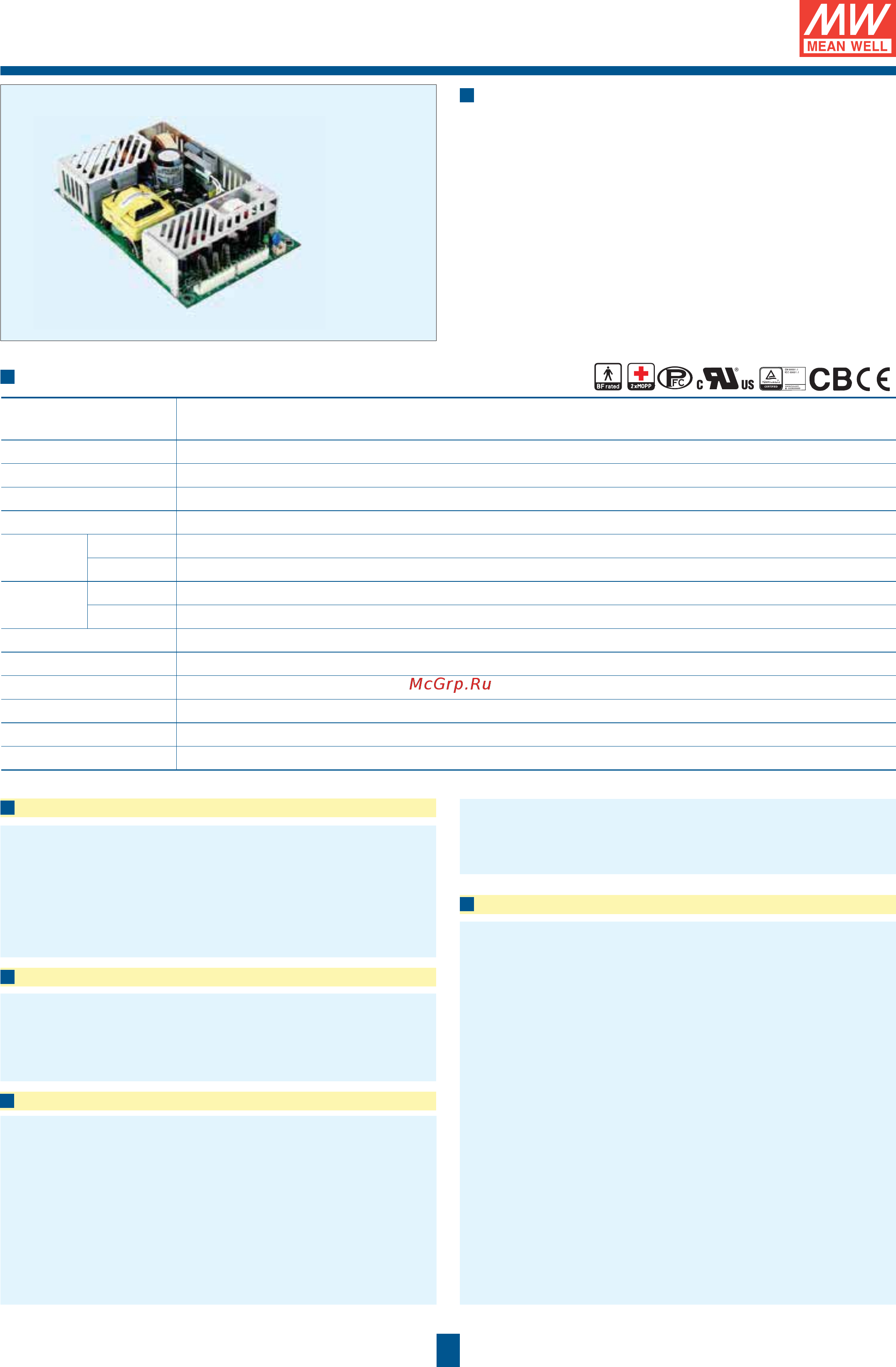

MPS/D/T/Q-200
43
Open Frame
200W 1~4 Output Medical Grade
200W:Single Output—Class I MPS-200
200W:Dual Output—Class I MPD-200
200W:Triple Output—Class I MPT-200
200W:Quad Output—Class I MPQ-200
Features
• Universal AC input / Full range
• Built-in active PFC function
• Medical safety approved (2xMOPP)
• Suitable for BF application with appropriate system consideration
• Extremely low leakage current
• Protections: Short circuit / Overload / Over voltage /
Over temperature
• Built-in remote sense function and remote ON/OFF control
• Free air convection for 140W, 200W with 25CFM forced air
• With P.G and P.F singal output
• 3 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. Output Tol. R&N Effi.
MPS-200-3.3 3.3V, 0~40A ±2% 80mV 77%
MPS-200-5 5V, 0~40A ±2% 80mV 81%
MPS-200-12 12V, 0~16.7A ±2% 100mV 84%
MPS-200-15 15V, 0~13.4A ±2% 100mV 85%
MPS-200-24 24V, 0~8.4A ±1% 150mV 86%
MPS-200-48 48V, 0~4.2A ±1% 200mV 87%
Model No. Output Tol. R&N Effi. Max.
MPD-200A 5V, 4.0~24A ±2% 80mV 82% 196W
12V, 0.8~9.6A +8%,-5% 120mV
MPD-200B 5V, 4.0~24A ±2% 80mV 83% 196W
24V, 0.4~4.8A ±6.5% 180mV
Model No. Output Tol. R&N Effi. Max.
MPT-200A 5V, 4.0~24A ±2% 80mV 80% 200W
12V, 0.8~9.0A ±8% 120mV
-5V, 0.0~2.4A ±5% 80mV
MPT-200B 5V, 4.0~24A ±2% 80mV 80% 196W
12V, 0.6~7.2A ±8% 120mV
-12V, 0.0~2.4A ±5% 80mV
MPT-200C 5V, 4.0~24A ±2% 80mV 80% 201W
15V, 0.5~5.6A ±8% 150mV
-15V, 0.0~2.4A ±5% 80mV
Model No. Output Tol. R&N Effi. Max.
MPT-200D 5V, 4.0~24A ±2% 80mV 81% 196W
24V, 0.3~3.6A ±8% 180mV
12V, 0.0~2.4A ±5% 80mV
Model No. Output Tol. R&N Effi. Max.
MPQ-200B 5V, 3.0~18A ±2% 80mV 78% 193W
12V, 0.7~8.4A ±8% 120mV
-5V, 0.0~2.4A ±5% 80mV
-12V, 0.0~2.4A ±5% 80mV
MPQ-200C 5V, 3.0~18A ±2% 80mV 78% 190W
15V, 0.5~6.0A ±6% 150mV
-5V, 0.0~2.4A ±5% 80mV
-15V, 0.0~2.4A ±5% 80mV
MPQ-200D 5V, 3.0~18A ±2% 80mV 79% 195W
24V, 0.3~3.6A ±8% 180mV
12V, 0.0~2.4A ±5% 80mV
-12V, 0.0~2.4A ±5% 80mV
MPQ-200F 5V, 3.0~18A ±2% 80mV 81% 200W
24V, 0.3~3.3A ±8% 180mV
15V, 0.0~2.4A ±5% 80mV
-15V, 0.0~2.4A ±5% 80mV
Model No. MPS/D/T/Q-200
AC input voltage range 90~264VAC
Leakage current
ȝ$
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range CH1: -5~+10% rated output voltage
Overload
protection
Range 120%~160% rated output power
Type Hiccup mode, auto-recovery
Over voltage
protection
Range CH1: 115%~135% rated output voltage
Type Shut down o/p voltage
Withstand voltage I/P-O/P: 4kVAC, I/P-FG:1.5kVAC, O/P-FG: 1.5kVAC
Working temperature -20~+70°C (refer to output derating curve)
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved; Design refer to UL60950-1, TUV EN60950-1
EMC standards EN55011/EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, EN61000-6-2
Connection 3P, 20P / 3.96mm pitch, JST B3P/VH, Molex 5566-20; 3P, 8Px2 / 3.96mm pitch. JSTB3P / B8Px2-VH
Dimension (LxWxH)(mm) 177.8x 107.2x 35.5
