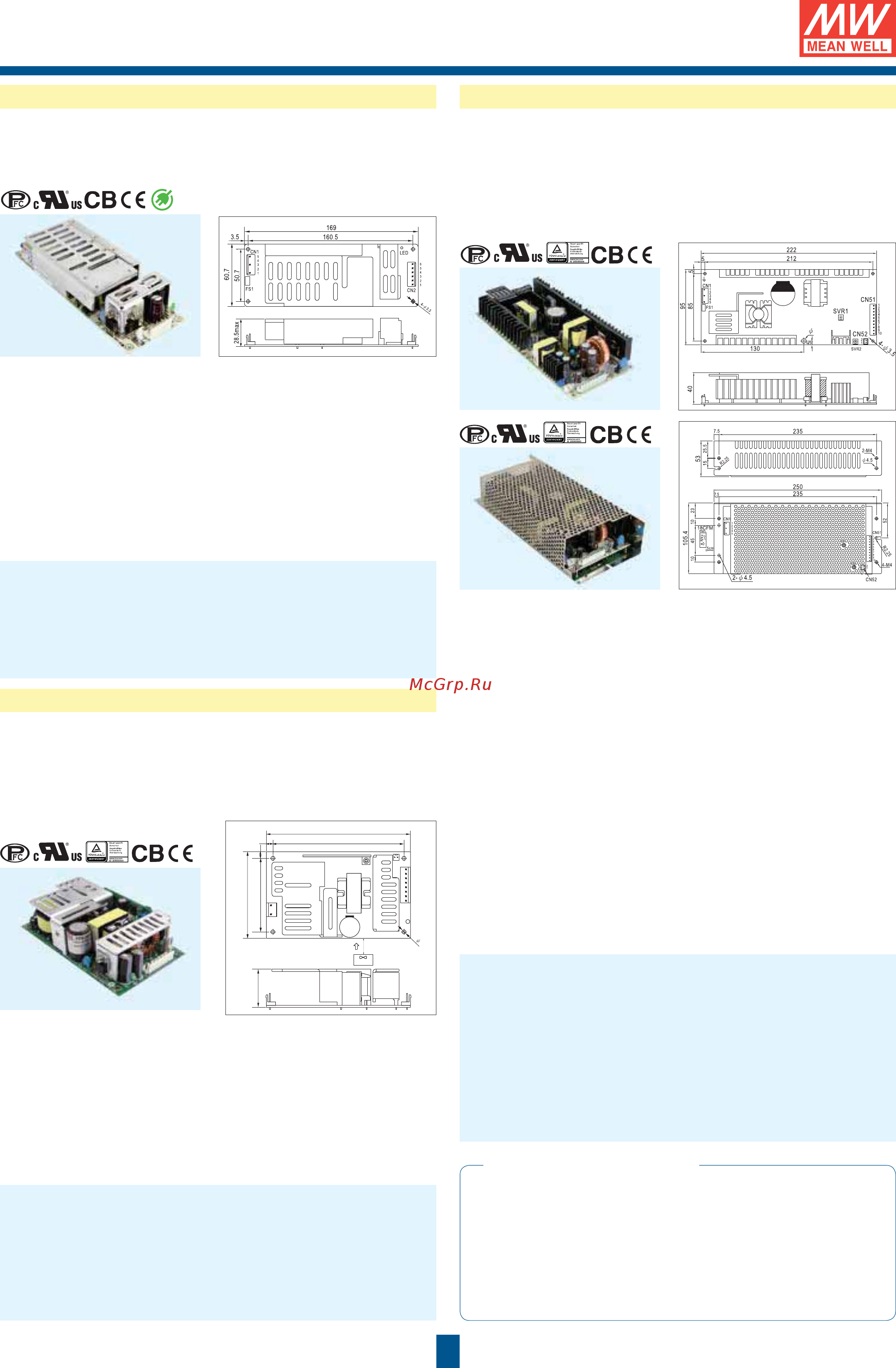

PID-250 series is suitable for motor-based equipment with logic control
circuit. CH1 with high peak power capability can provide the required
surge loading while starting up the motor. The isolated 5V/5A CH2 is
good for logic control usage and can still work properly even CH1 is
malfunction or at any protection modes. The isolated design between
CH1 and CH2 can significantly prevent noise of the motor action from
entering control circuits and hence secure the accurate operation of the
end equipment.
źź
Feature Description
FAN
20.5CFM
direction
Air flow
50mm
4-
3.
5
2
CN3
1
LED1
3
CN1
1
5
2
3
4
6
7
8
CN5
1
2
SVR1
127
115.6
76.2
64.
8
5
6.4
3.5
35.1
48
Open Frame
150~250W Single and Dual Output
150W Single Output with PFC Function
169x 60.7x 28.5 mm
AC input voltage range .......
DC adjustment range .........
Overload protection ...........
Over voltage protection ......
Withstand voltage .............
Working temperature .........
Safety standards ...............
EMC standards .................
Connection .......................
Packing ............................
90~264VAC ; 127~370VDC
Can be modified between ±10% rated output
voltage by factory
105%~135% hiccup mode, auto-recovery
110%~135% rated output voltage
I/P-O/P: 4.25kVDC, I/P-FG:1.5kVAC, 1minute
-20~+60°C (refer to output derating curve)
UL60950-1 approved
EN55032 class B, EN61000-3-2,3,
EN61000-4-2,3,4,5,6,8,11
5+6P/3.96mm pitch, JST P/N :B5P/B6P-VH
0.32kg ; 48pcs / 15.8kg / 0.79CUFT
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Short circuit / Overload /
Over voltage / Over temp.
• Cooling by free air convection
• High power density 8.4W/in
3
• No load power consumption<1W
• 100% full load burn-in test
• 3 years warranty
Model No. Output Tol. R&N Effi.
ASP-150-12 12V, 0~11A ±2% 150mV 88%
ASP-150-15 15V, 0~9.5A ±2% 180mV 88%
ASP-150-20 20V, 0~7.5A ±1% 200mV 90%
ASP-150-24 24V, 0~6.3A ±1% 240mV 90%
ASP-150-48 48V, 0~3.2A ±1% 240mV 89%
200W Single Output with PFC Function
127x 76.2x 35.1 mm
AC input voltage range ..........
DC adjustment range ............
Overload protection ..............
Over voltage protection .........
Withstand voltage .................
Working temperature .............
Safety standards ...................
EMC standards .....................
Connection ...........................
Packing ................................
90~264VAC; 127~370VDC
±10% rated output voltage
105%~135% hiccup mode, auto-recovery
115%~135% rated output voltage
I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute
-20~+70°C (refer to output derating curve)
UL60950-1, TUV EN60950-1 approved
EN55032 class B, EN61000-3-2,3
EN61000-4-2,3,4,5,6,8,11
3+8P/3.96mm pitch, JST B3P/B8P-VH
0.37kg ; 36pcs / 14.3kg / 0.79CUFT
• Universal AC input / Full range
• High efficiency up to 90%
• 3)!#9$&!#9$&
• Protections: Short circuit / Overload /
Over voltage / Over temp.
• High power density 9.78W/in
3
• 5"x3" compact size
• ZVS technology to reduce power
dissipation
• Built-in remote sense function
• Free air convection for 150W and
200W with 20.5 CFM forced air
• 3 years warranty
Model No. Output Tol. R&N Effi.
PPS-200-5 5V, 0~36.0A ±4% 100mV 86%
PPS-200-12 12V, 0~16.6A ±3% 100mV 89%
PPS-200-15 15V, 0~13.3A ±3% 100mV 89%
PPS-200-24 24V, 0~8.30A ±2% 150mV 89%
PPS-200-27 27V, 0~7.40A ±2% 150mV 89%
PPS-200-48 48V, 0~4.167A ±2% 250mV 90%
250W Isolated Dual Output with PFC Function
• Universal AC input / Full range
• Isolated output & GND for CH1,CH2
• Built-in active PFC function
• Protections: Short circuit / Overload /
Over voltage / Over temp.
AC input voltage range .........
AC inrush current ................
Leakage current ..................
DC adjustment range ...........
Overload protection(CH1) .....
(CH2) .....
Over voltage protection ........
Setup, rise, hold up time .......
Withstand voltage ................
Working temperature ............
Safety standards .................
EMC standards ...................
Connection .........................
Packing ..............................
90~264VAC; 127~370VDC
Cold start, 58A at 230VAC
Less than 3.5mA at 240VAC
±10% for CH1; ±5% for CH2
105%~170% normally operation, shut off
after 10 sec.; >180%, constant current, shut
off after 10 sec.
101%~150% hiccup mode, auto-recovery
CH1: 115%~140%, CH2: 110%~135%
1200ms, 60ms, 30ms at full load and 230VAC
I/P-O/P:3.0kVAC, I/P-FG:2kVAC, 1minute
-20~+70°C (refer to output derating curve)
UL60950-1, TUV EN60950-1 approved
EN55032 class B, EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
5+10+2P/3.96mm pitch JST B5P/B10P-VH,
B2B-XH
0.74kg ; 18pcs / 14.3kg / 0.88CUFT (PCB type);
1.6kg ; 9pcs / 15.4kg / 0.61CUFT (Enclosed type)
• Optional case available
• Cooling by free air convection
• Remote control function for CH1
• Peak load 170% for 10 sec. (CH1)
• 100% full load burn-in test
• 3 years warranty
Model No. Output Tol. R&N Effi.
PID-250A 12V, 0~15A ±3% 120mV 83%
5V, 0~5.0A ±2% 50mV
PID-250B 24V, 0~9.4A ±2% 150mV 86%
5V, 0~5.0A ±2% 50mV
PID-250C 36V, 0~6.3A ±2% 200mV 86%
5V, 0~5.0A ±2% 50mV
PID-250D 48V, 0~4.7A ±2% 200mV 86%
5V, 0~5.0A ±2% 50mV
222x 95x 40 mm
250x 105.4x 53 mm
