INSTALLATIONS NOTES
69 | 75

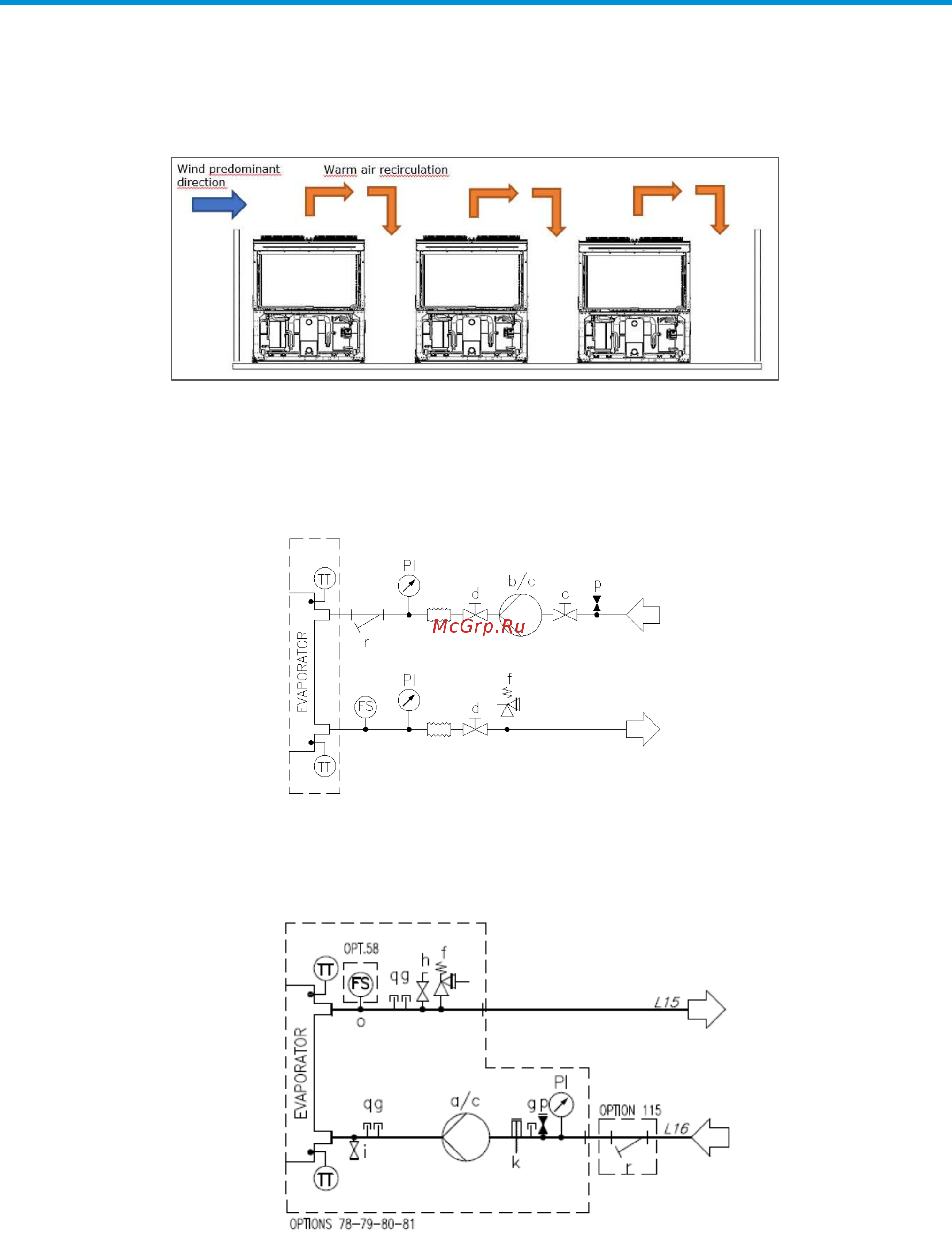

Multiple units installation – closed area with wind prevalent direction
In case of closed area with height equal or higher than the units, installation is the installation is not recommended.
Units 2 and 3 operate at significantly higher temperatures due to the higher recirculation. In this case it is necessary
to adopt special precautions based on the specific installation (for example: walls with grids, installation of the unit
on base to increase its height, duct on fans, high head fans, etc,)
Hydraulic schemes
- Hydraulic scheme without pump(s) on board (max. operating pressure 20 bar)
- Hydraulic scheme of the Parallel Coil unit with Single Pump OP.78-79
(max operating pressure 6 bar)
Unit n.1
Unit n.2
Unit n.3
