Gigabyte C621-SD8 (rev. 1.0) [11/46] Channelmemoryconfiguration

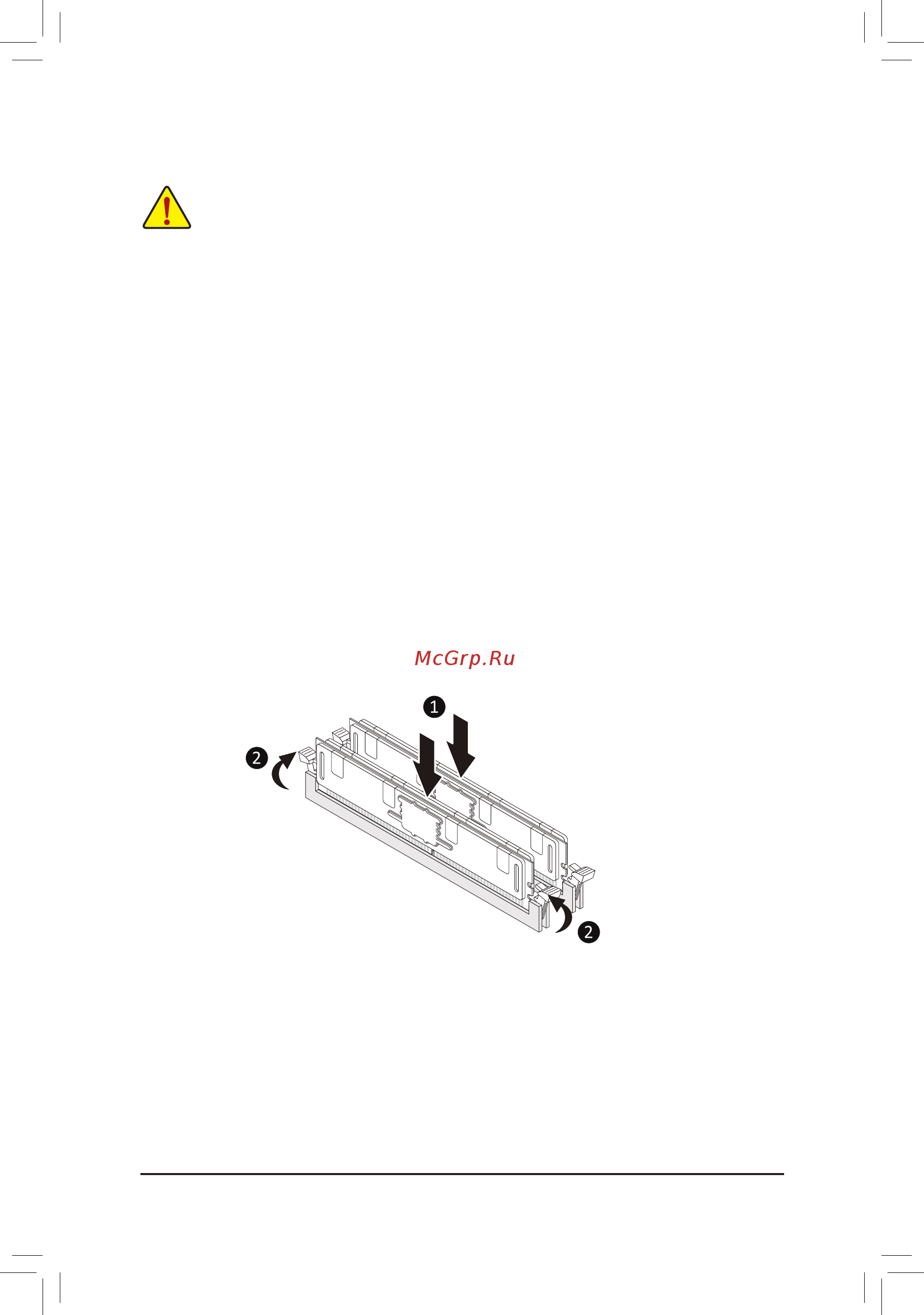

![Gigabyte C621-SD8 (rev. 1.0) [11/46] Channelmemoryconfiguration](/views2/1679935/page11/bgb.png)
Due to CPU limitations, read the following guidelines before installing the memory in 4 Channel mode.
1. 4 Channel mode cannot be enabled if only one memory module is installed.
2. When enabling 4 Channel mode with two or four memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used.
4ChannelMemoryConguration
This motherboard supports 4 Channel Technology. After the memory is installed, the BIOS will automatically
detect the specications and capacity of the memory.
The eight DDR4 memory sockets are divided into four channels and each channel has two memory sockets
as following:
Channel 1: P1-DIMM_A1 (For CPU 1)/P2-DIMM_A1 (For CPU 2)
Channel 2: P1-DIMM_B1 (For CPU 1)/P2-DIMM_B1 (For CPU 2)
Channel 3: P1-DIMM_D1 (For CPU 1)/P2-DIMM_D1 (For CPU 2)
Channel 4: P1-DIMM_E1 (For CPU 1)/P2-DIMM_E1 (For CPU 2)
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
- 11 -
