Hardware Installation - 20 -

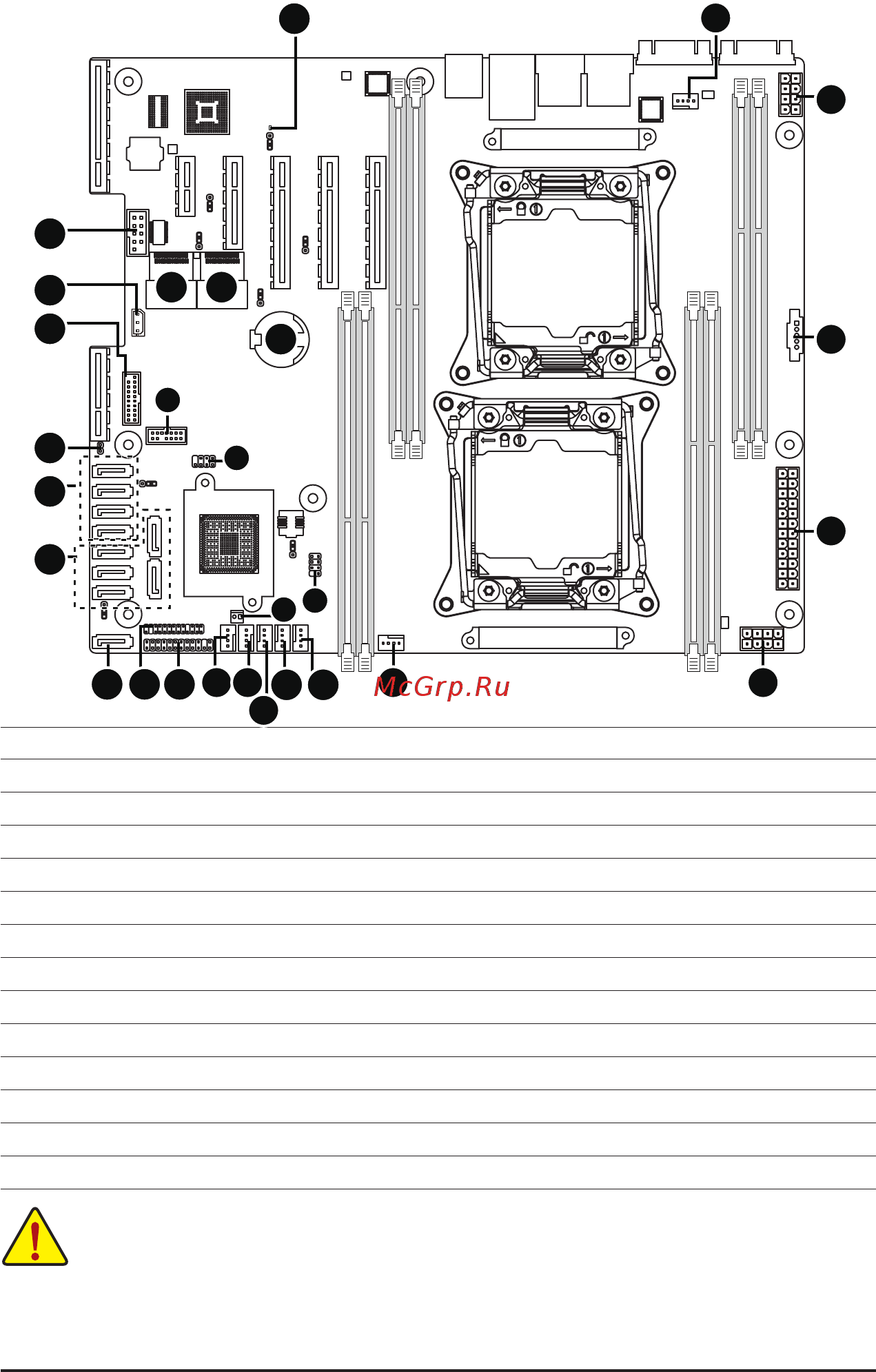

1-6 Internal Connectors
1) ATX1
2) P12V_AUX1
3) P12V_AUX2
4) PMBUS
5) CPU0_FAN (for primary CPU)
6) CPU1_FAN (for seconary CPU)
7) SYS_FAN1 (System Fan)
8) SYS_FAN2 (System Fan)
9) SYS_FAN3 (System Fan)
10) SYS_FAN4 (System Fan)
11) SYS_FAN5 (System Fan)
12) SATA2
13) SATA0/1/3/4/5
14) SSATA0/SSATA1/SSATA2/SSATA3
15) SSATA_SGP
16) SATA_SGP
17) MINI_CN1
18) MINI_CN2
19) F_USB3
20) COM2
21) TPM
22) IPMB
23) FP_1
24) BP_1
25) SW_RAID
26) LED_BMC
27) CASE_OPEN
28) BAT
1
2
3
4
5
6
9
10 11
13
12
14
27
19
22
2324
20
26
28
1817
16
15
21
25
7 8
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
