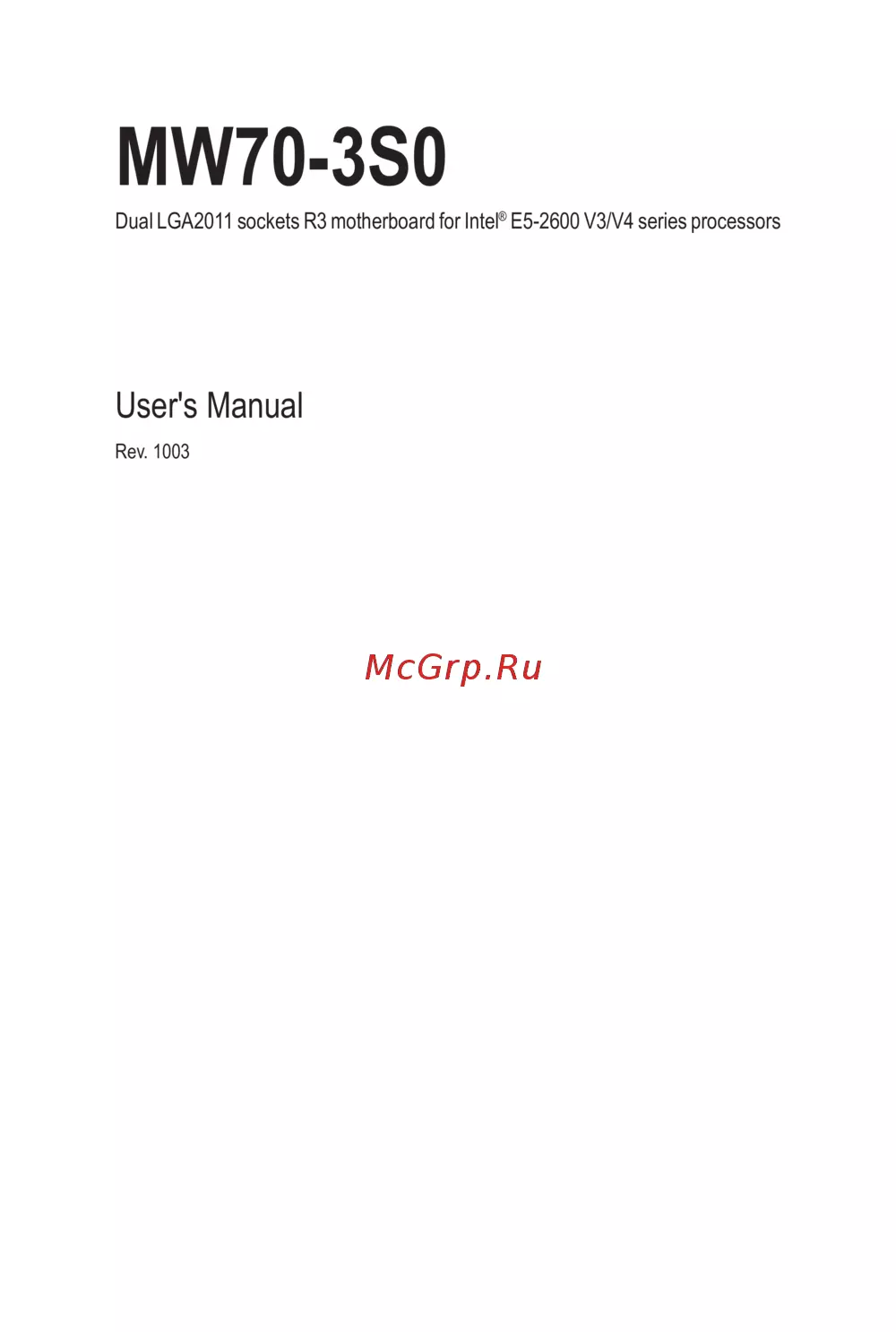

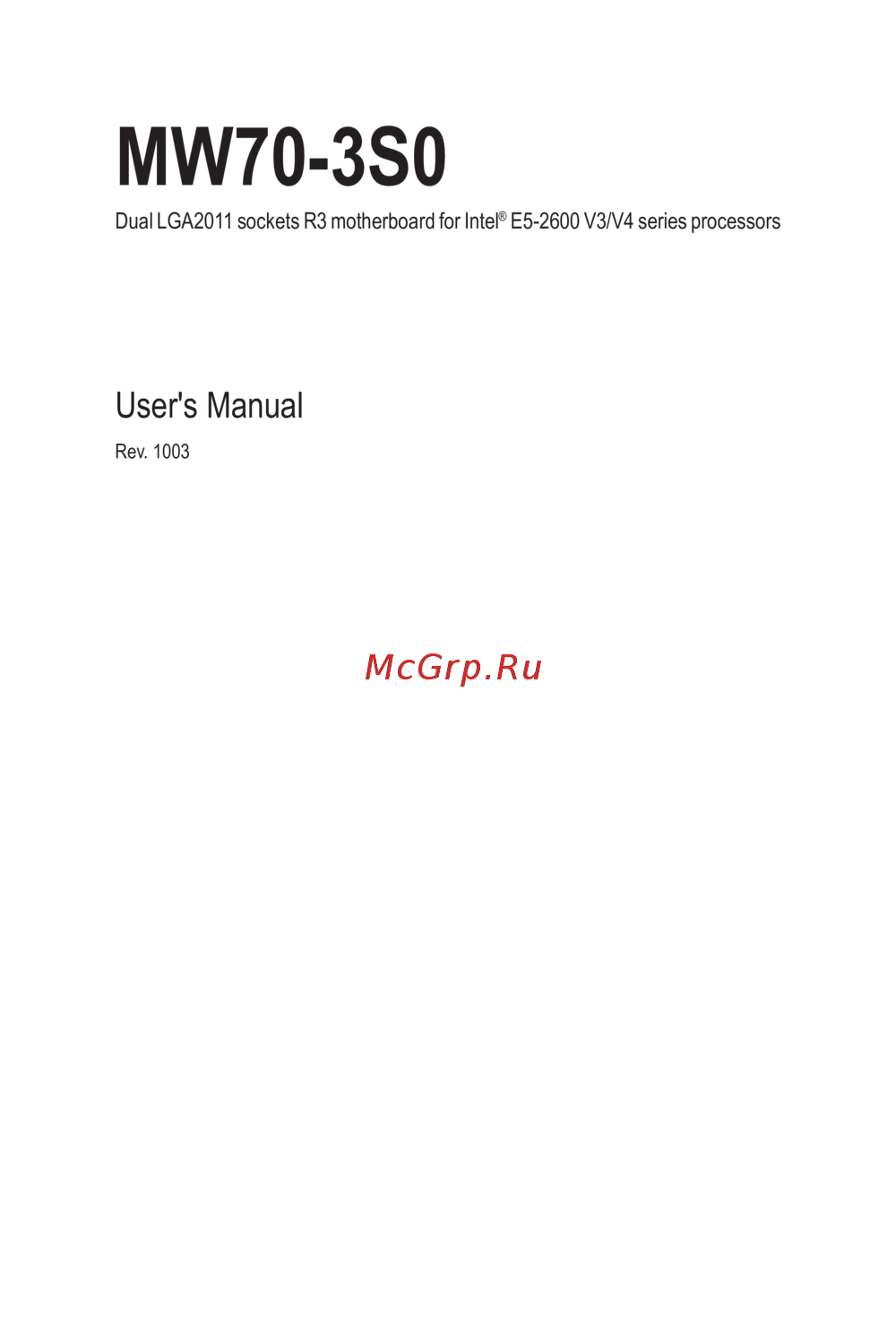

Gigabyte MW70-3S0 (rev. 1.0) Инструкция онлайн

MW70-3S0

Dual LGA2011 sockets R3 motherboard for Intel

E5-2600 V3/V4 series processors

User's Manual

Rev. 1003

Содержание

Mw70 3s0 1
User s manual 1
Copyright 2
Disclaimer 2
Documentation classifications 2
Http b2b gigabyte com 2
Http reseller b2b gigabyte com 2
Https www facebook com gigabyteserver 2
1 installation precautions 11 1 2 productspecifications 12 1 3 installing the cpu and cpu cooler 14 3
1 the main menu 46 2 2 advanced menu 49 3
3 intel rc setup menu 75 3
4 installing the memory 18 3
5 back panel connectors 20 1 6 internal connectors 22 1 7 jumper settings 39 3
Box contents mw70 3s0 motherboard layout block diagram 0 chapter 1 hardware installation 1 3
Chapter 2 bios setup 4 3
Table of contents 3
4 event logs menu 117 4
5 security menu 120 4
6 boot menu 124 2 7 save exit menu 126 2 8 bios post codes 128 2 9 bios post beep code 132 4
Chapter 3 appendix 34 5
Box contents 6
2 3 4 5 7
Mw70 3s0 motherboard layout 7
Block diagram 10
1 installation precautions 11
Chapter 1 hardware installation 11
2 product specifications 12
3 1 installing the cpu 14
3 installing the cpu and cpu cooler 14
3 2 installing the cpu cooler 17
4 1 four channel memory configuration 18
4 installing the memory 18
19 hardware installation 19
4 2 installing a memory 19
4 3 dimm population table 19
Before installing a memory module make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module be sure to install ddr4 dimms on this motherboard 19
Installation step step 1 insert the dimm memory module vertically into the dimm slot and push it down step 2 close the plastic clip at both edges of the dimm slots to lock the dimm module note for dual channel operation dimms must be installed in matched pairs step 3 reverse the installation steps when you wish to remove the dimm module 19
Note ddr4 2400mhz is only available on intel xeon e5 2600 v4 processor 19
Two slots channel rdimm population configuration within a channel 19
5 back panel connectors 20
Center subwoofer speaker out jack orange 20
Line in jack blue 20
Line out jack green 20
Mic in jack pink 20
Optical s pdif out connector 20
Rear speaker out jack black 20
Rj 45 lan ports gigabit ethernet lan ports 20
Serial port 20
Usb 2 port 20
Usb 3 port 20
21 hardware installation 21
Whenremovingthecableconnectedtoabackpanelconnector firstremovethecablefromyour device and then remove it from the motherboard when removing the cable pull it straight out from the connector do not rock it side to side to prevent an electrical short inside the cable connector 21
6 internal connectors 22
2 3 atx1 p12v_aux1 p12v_aux2 2x4 12v power connector and 2x12 main power connector 24
Hardware installation 24 24
To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 24
With the use of the power connector the power supply can supply enough stable power to all the componentsonthemotherboard beforeconnectingthepowerconnector firstmakesurethepower supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 24
25 hardware installation 25
6 7 8 9 10 11 cpu_fan0 cpu_fan1 sys_fan1 sys_fan2 sys_fan3 sys_fan4 sys_fan5 cpu fan system fan headers 25
Be sure to connect fan cables to the fan headers to prevent your cpu and system from overheating overheating may result in damage to the cpu or the system may hang thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercapontheheaders 25
Pmbus pmbus connector 25
The motherboard has two 4 pin cpu fan headers and four 4 pin system fan headers most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the motherboard supports cpu fan speed control which requires the use of a cpu fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 25
13 sata0 sata1 sata 6gb s connectors sata4 5 support sata dom function 26
15 sata 2 3 4 5 ssata0 1 2 3 sata 6gb s connectors 26
Araid0orraid1configurationrequiresatleasttwoharddrives ifmorethantwoharddrives areconfigured thetotalnumberofharddrivesmustbeanevennumber araid10configurationrequiresfourharddrives 26
Hardware installation 26 26
Note whenaraidconfigurationisbuiltacrossthesata6gb schannels thesystemperformanceof theraidconfigurationmayvarydependsonthedevicesareconnected 26
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and 1 gb s standard each sata connector supports a single sata device 26
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s and 1 gb s standard each sata connector supports a single sata device please see page 35 for sata dom jumper setting 26
27 hardware installation 27
Mini sas hd high density sff 8644 is the next generation sas high density and high speed io interface mini sashdisinthesas3 standard meetsthe12gb ssasspecification 27
Msas_hd_1 mini sas hd connectors 27
18 sata_sgp ssata_sgp sas sgpio headers 28
Hardware installation 28 28
Sgpio stands for serial general purpose input output which is a 4 signal or 4 wire bus used between a host bus adapter hba and a backplane out of the 4 signals 3 are driven by the hba and 1 is driven by the backplane typically the hba is a storage controller located inside a server desktop rack or workstation computer that interfaces with hard disk drives hdds to store and retrieve data 28
29 hardware installation 29
Connect the power switch reset switch chassis intrusion switch sensor and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables 29
Fp_1 front panel header 29
The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led speaker and etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly 29
Bp_1 hdd back plane board hearders 30
Hardware installation 30 30
31 hardware installation 31
F_usb3 usb 3 header 31
Ipmb ipmb connector 31
Theheadersconformtousb3 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer 31
F_usb2 front usb header 32
Hardware installation 32 32
Theheaderconformtousb2 specification eachusbheadercanprovidetwousbportsviaan optional usb bracket for purchasing the optional usb bracket please contact the local dealer 32
Tpm tpm module connector 32
27 spdif_out1 spdif_in1 spdif out and spdif in header 33
33 hardware installation 33
Com2 serial port header 33
The com header provides one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer 33
Bat battery 34
F_audio front panel audio header 34
Hardware installation 34 34
The front panel audio header supports hd audio by default if your chassis provides an ac 97 front panel audio module 34
Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 34
Thefrontpanelaudioheadersupportsintelhighdefinitionaudio hd audio youmayconnectyour chassis front panel audio module to this header make sure the wire assignments of the module connector match the pin assignments of the motherboard header incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it 34
31 lan1_led lan2_led lan1 lan2 link active led headers 35
35 hardware installation 35
Led_bmc bmc firmware readiness led 35
Hardware installation 36 36
Lsi_uart1 lsi uart header 36
Sw_raid intel raid key header 36
37 hardware installation 37
Case_open case open intrusion alert header 37
Imr_key lsi raid key header 37
Hardware installation 38 38
Led5 lsi firmware readiness led 38
7 jumper settings 39
2 sata_dom0 sata_dom0 sata port 0 and port 1 dom jumpers 40
Caution if the sata dom power is supplied by the motherboard set the jumper to pin 1 2 if the sata dom power is supplied by external power set the jumper to pin 2 3 if a sata type hard drive is connected to the motherboard please ensure the jumper is closed and set to 2 3 pins default setting in order to reduce any risk of hard disk damage 40
Clr_cmos clearing cmos jumper 40
Hardware installation 40 40
Pleaserefertothepindefinitiontableinthefollowing 40
Usethisjumpertoclearthecmosvalues e g dateinformationandbiosconfigurations andreset the cmos values to factory defaults to clear the cmos values place a jumper cap on the two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few seconds 40
41 hardware installation 41
Me_update me update jumper 41
S3_mask s3 power on select jumper 41
2 close normal operation default setting 42
3 close force to stop frb timer 42
3 close me recovery mode 42
Bmc_frb force to stop frb timer jumper 42
Hardware installation 42 42
Me_rcvr me recovery jumper 42
2 close normal operation default setting 43
3 close bios recovery mode 43
3 close skip supervisor password 43
43 hardware installation 43
Bios_pwd clearing supervisor password jumper 43
Bios_rvcr bios recovery jumper 43
Bios setup program function keys 44
Chapter 2 bios setup 44
Advanced 45
Event logs 45
Intel rc setup 45
Save exit 45
Security 45
1 the main menu 46
Bios build date and time 47
Bios information porject name 47
Ec firmware version 47
Memory frequency 47
Memory information total memory 47
Onboard lan information lan1 lan2 mac address 47
Porject version 47
Processor information cpu brand string max cpu speed cpu signature processors core microcode patch 47
System date 48
System time 48
2 advanced menu 49
2 1 offboard sata controller configuration 50
2 2 serial port console redirection 51
Bits per second 53
Com1 com2 serial over an console redirection settings console redirectio 53
Console redirection settings terminal type 53
Data bits 53
Flow control 53
Parity 53
Recorder mode 53
Resolution 100x31 53
Stop bits 53
Vt utf8 combo key support 53
Legacy os redirection resolution 54
Out of bnad mgmt port 54
Putty keypad 54
Redirection after bios post 54
2 3 pci subsystem settings 55
Above 4g decoding 55
Onboard lan 1 2 controller 55
Onboard lan 1 2 i o rom 55
Pci devices common settings pci latency timer 55
Pci express slot 1 2 3 4 5 6 i o rom 55
Vga palette snoop 55
Pci express settings 56
Pci hot plug settings 56
Sr iov support 56
2 3 1 pci express settings 57
Extended tag 57
Link training retry 57
Maximum payload 57
No snoop 57
Pci express device register settings relaxed ordering 57
Pci express link register settings extended synch 57
Link training timeout us 58
Unpopulated links 58
2 3 2 pci hot plug settings 59
I o resources padding 59
Mmio 32 bit resources padding 59
Pci buses padding 59
Pci hot plug settings bios hot plug support 59
Pfmmio 32 bit resources padding 59
2 4 network stack 60
Ipv4 pxe suppor 60
Ipv6 pxe suppor 60
Media detect tim 60
Network stack 60
Pxe boot wait tim 60
2 5 csm configuration 61
Boot option filter 61
Compatibility support module configuration 61
Csm support 61
Csm16 module version 61
Gate20 active 61
Int19 endless retry 61
Option rom messages 61
Network 62
Option rom execution 62
Other pci devices 62
Storage 62
2 6 post report configuration 63
Post report configuration error message report post error message 63
2 7 nvme configuration 64
Nvme configuration 64
2 8 trusted computing 65
Configuration security device support 65
Current status information 65
2 9 usb configuration 66
Ehci hand off 66
Port 60 64 emulation 66
Usb configuration usb devices 66
Usb mass storage driver suppor 66
Xhci hand off 66
2 10 chipset configuration 67
Chassis opened status 67
Chassis opened warning 67
Deep sleep eup 67
2 11 ast2400 hwm 68
2 12 intel r thunderbolt 69
Aic location group 69
Aic support add in card support 69
Intel r thunderbolt configuration thunderbolt specification intel sample code version intel thunderbolt technolog 69
Security level 69
Wake from thunderbolt devices 69
Aic location 70
Ignore thunderbolt option rom 70
Notify support 70
Reserved mem per phy slot 70
Reserved pmem per phy slot 70
Smi notify support 70
Susmi support 70
Tbt device io resource support 70
Thunderbolt pcie cache line size 70
Thunderbolt swsmi delay 70
2 13 sio configuration 71
Ami sio driver version 72
Logical device settings current 72
Possible 72
Serial port 1 configuration use this device 72
Super io chip logical device s configuration active serial port 1 2 72
Logical device settings current 73
Possible 73
Serial port 2 configuration use this device 73
2 14 iscsi configuration 74
Change attempt order 74
Delete attempts 74
Iscsi initiator name add an attempts 74
3 intel rc setup menu 75
Rc revision 75
3 1 processor configuration 76
Adjacent cache line prefetch 77
Dcu ip prefetch 77
Dcu mode 77
Dcu streamer prefetch 77
Enable intel txt support 77
Enable smx intel safer mode extensions technology 77
Execute disable bit 77
Hardware prefetcher 77
Hyper threading all 77
Processor configuration pre socket configuration 77
Processor socket processor id processor frequency processor max raito processor min raio microcode revision l1 cache ram l2 cache ram l3 cache ram processor 0 1version 77
Vmx vanderpool technology 77
Aes ni 78
Dca prefetch delay 78
Direct cache access dca 78
X2apic 78
3 1 1 pre socket configuration 79
Cores enabled for cpu socket 0 1 80
Cpu socket 0 1 configuration 80
3 2 advanced power management configuration 81
Advanced power management configuration power technology 81
Config tdp 81
Config tdp level 81
Cpu c state control 81
Cpu p state control 81
Cpu t state control 81
3 2 1 cpu p state control 82
Eist p state 82
P state coordination 82
Turbo mode 82
3 2 2 cpu c state control 83
Cpu c3 c6 report 83
Package c state limit 83
3 2 3 cpu t state control 84
Acpi t states 84
3 3 common refcode configuration 85
Common refcode configuration isoc mode 85
Numa non uniform memory access 85
3 4 qpi configuration 86
Link frequency select 87
Link speed mode 87
Qpi general configuration 87
Qpi status 87
3 5 memory configuration 88
Ecc support 88
Integrated memory controller imc enforce por 88
Memory frequency 88
Memory thermal 88
Memory topology 88
Rank margin tool 88
Rmt pattern length 88
Spd write lock 88
Memory map 89
Memory ras configuration 89
3 5 1 memory topology 90
3 5 2 memory thermal 91
Memhot throttling mode 91
Set throttling mode 91
3 5 3 memory map 92
Channel interleaving 92
Rank interleaving 92
Socket interleave below 4gb 92
3 5 4 memory ras configuration 93
Correctable error threshold 93
Lockstep x4 dimms 93
Memory rank sparing 93
Ras mode 93
3 6 iio configuration 94
Iio configuration ev dfx features 94
Intel vt for directed i o vt d 94
Ioat configuration 94
3 6 1 ioat configuration 95
Ioat configuration enable ioat 95
No snoop 95
3 6 2 intel vt for directed i o vt d 96
Coherency support isoch 96
Coherency support non isoch 96
Intel vt for directed i o vt d 96
Intel vt for directed i o vt d vt d azalea vcp optimizations 96
Interrupt remapping 96
3 7 pch configuration 97
Azalia configuration 97
Pch configuration pch devices 97
Pch sata configuration 97
Pch ssata configuration 97
Usb configuration 97
3 7 1 pch devices 98
Pch crid 98
3 7 2 pch ssata configuration 99
Configure ssata as 100
Pch ssata configuration ssata controller s 100
Sata mode option 100
Sata test mode 100
Support aggressive link power man 100
When sata type is set to ide 100
Alternate device id on raid 101
Configured as esat 101
Hot plug for port 0 1 2 3 101
Port 0 1 2 3 101
Spin up device for port 0 1 2 3 101
Ssata device type 101
Ssata port 0 1 2 3 101
3 7 2 1 sata mode options 102
Sata led locate 102
When sata type is set to ide ahci mode 102
Intel rapid recovery technology 103
Irrt only on esata 103
Raid option rom ui banner 103
Raid orom prompt delay 103
Sata led locate 103
Smart response technology 103
When sata type is set to raid mode 103
3 7 3 pch sata configuration 104
Configure ssata as 105
Pch sata configuration sata controller s 105
Sata mode option 105
Sata rste boot inf 105
Sata test mode 105
When sata type is set to ide 105
Alternate device id on raid 106
Configured as esat 106
Hot plug for port 0 1 2 3 4 5 106
Port 0 1 2 3 4 5 106
Spin up device for port 0 1 2 3 4 5 106
Ssata device type 106
Ssata port 0 1 2 3 4 5 106
Support aggressive link power man 106
3 7 3 1 sata mode options 107
Sata led locate 107
When sata type is set to ide ahci mode 107
Intel rapid recovery technology 108
Raid option rom ui banner 108
Raid orom prompt delay 108
Sata led locate 108
Smart response technology 108
When sata type is set to raid mode 108
3 7 4 usb configuration 109
Usb precondition 109
Xhci mode 109
3 7 5 azalia configuration 110
Azalia 110
3 8 miscellaneous configuration 111
Miscellaneous configuration active video 111
3 9 server me configuration 112
Current state for me firmware 112
Error code for me firmware 112
Greneral me configuration operational firmware version 112
Mctp bus owner 112
Me firmware features 112
Me firmware status 1 2 112
Recovery firmware version 112
3 10 runtime error logging 113
Memory error enabling 113
Pci pci error enabling 113
Runtime error logging system errors 113
S w error injection support 113
Whea settings 113
3 10 1 whea setting 114
Whea support windows hardware error architecture 114
3 10 2 memory error enabling 115
Memory corrected errors enabling 115
Memory error enabling un correctable errors disable memory 115
3 10 3 pci pci error enabling 116
Pci ex error enable 116
4 event logs menu 117
Change smbios event log settings 117
View smbios event log 117
4 1 change smbios event log settings 118
Enabling disabling options 118
Erasing event log 118
Erasing settings 118
Log system boot event 118
Smbios event log 118
Smbios event log standard settings 118
When log is full 118
4 2 view smbios event log 119
5 security menu 120
Administrator password 120
Secure boot menu 120
User password 120
5 1 secure boot menu 121
Key managemen 121
Secure boot 121
Secure boot mode 121
Secure mode 121
5 1 1 key management 122
Default key provisioning 122
Delete kek 122
Delete the pk 122
Enroll all factory default keys 122
Key exchange key database kek 122
Platform key pk 122
Save all secure boot variables 122
Set new kek 122
Set new pk file 122
Append avar to db 123
Append var to dbx 123
Append var to kek 123
Authorized signature database db 123
Delete db 123
Delete the dbx 123
Forbidden signature database dbx 123
Set dbx from file 123
Set new db 123
6 boot menu 124
Boot configuration 124
Boot option 1 2 3 4 124
Boot option priorities 124
Bootup numlock state 124
Quiet boot 124
Setup prompt timeout 124
Hard drive bbs priorities 125
Network device bbs priorities 125
7 save exit menu 126
Discard changes 126
Discard changes and exit 126
Restore defaults 126
Save changes 126
Save changes and exit 126
Save options 126
Boot override 127
Uefi built in in efi shell 127
8 bios post codes 128
9 1 pei beep codes 132
9 2 dex beep codes 132
9 bios post beep code 132
10 bios recovery instruction 133
1 regulatory statements 134
Chapter 3 appendix 134
Our commitment to preserving the environment 134
Regulatory notices 134
Restriction of hazardous substances rohs directive statement 134
Waste electrical electronic equipment weee directive statement 134
Weee symbol statement 134

Gigabyte MW70-3S0 (rev. 1.0) Инструкция онлайн

Содержание

Похожие устройства
