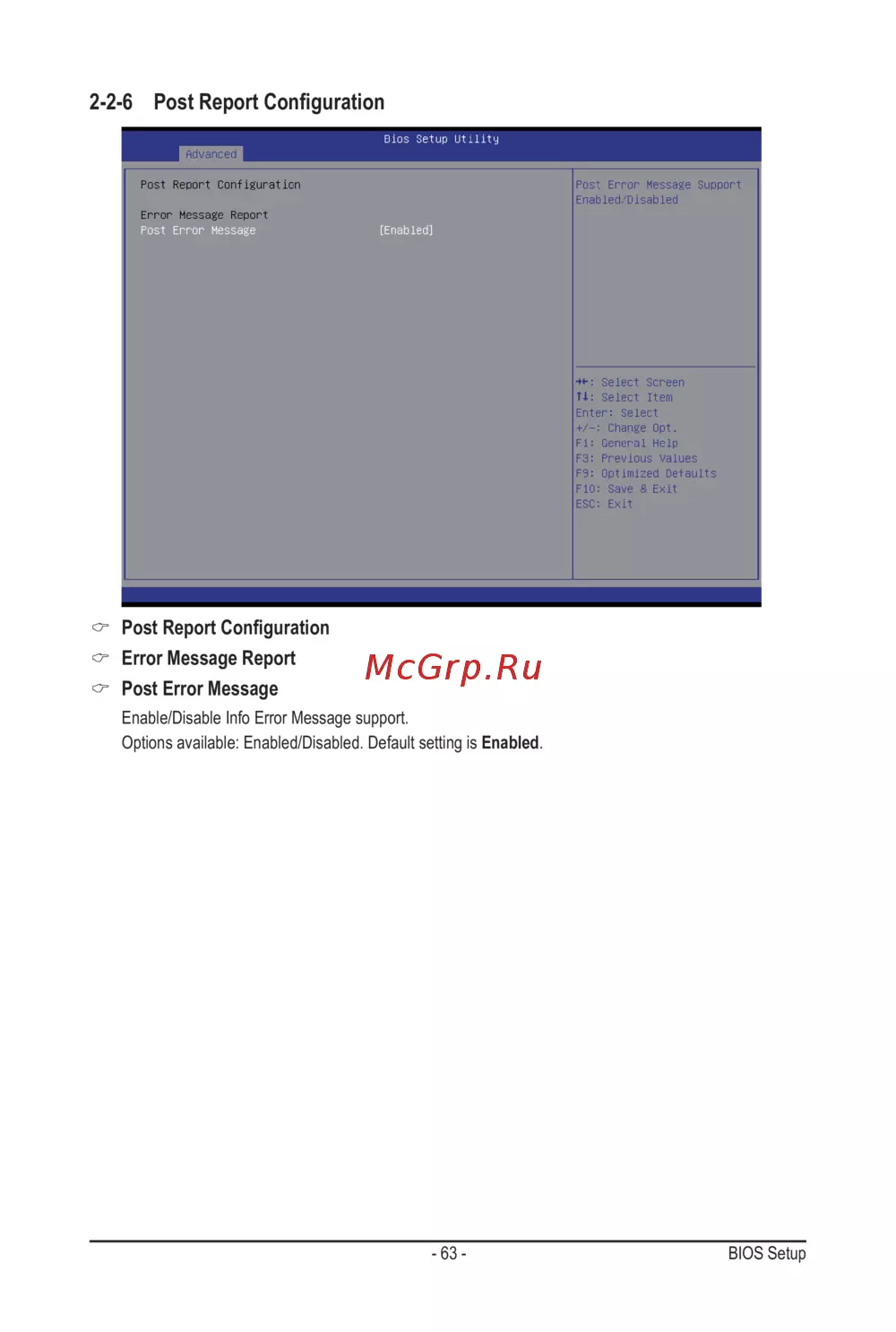

Gigabyte MW70-3S0 (rev. 1.0) [63/135] Post report configuration error message report post error message

- 63 - BIOS Setup

2-2-6 Post Report Conguration

Post Report Conguration

Error Message Report

Post Error Message

Enable/Disable Info Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
