Gigabyte MW70-3S0 (rev. 1.0) [114/135] 3 10 1 whea setting

BIOS Setup - 114 -

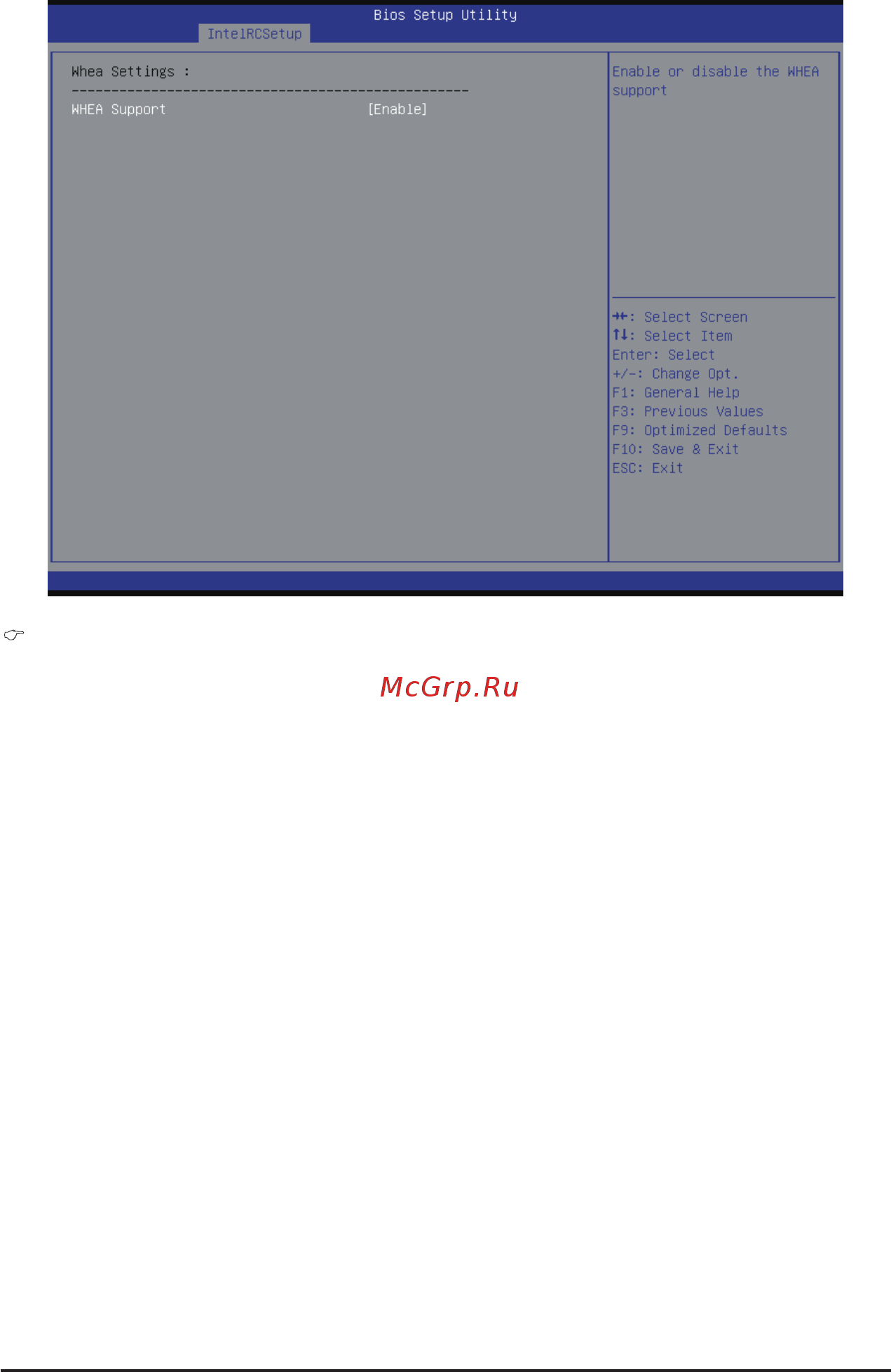

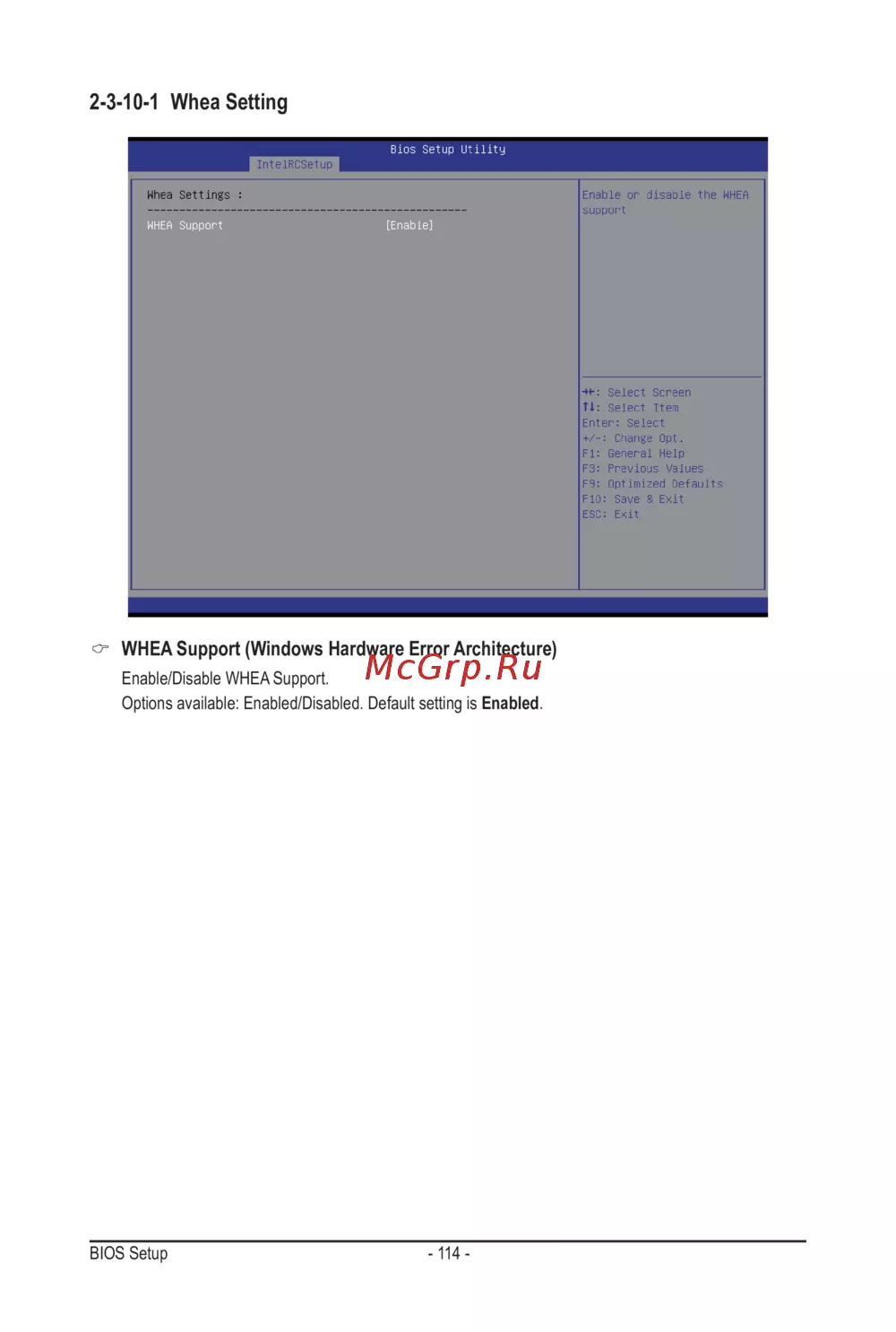

2-3-10-1 Whea Setting

WHEA Support (Windows Hardware Error Architecture)

Enable/Disable WHEA Support.

Options available: Enabled/Disabled. Default setting is Enabled.
