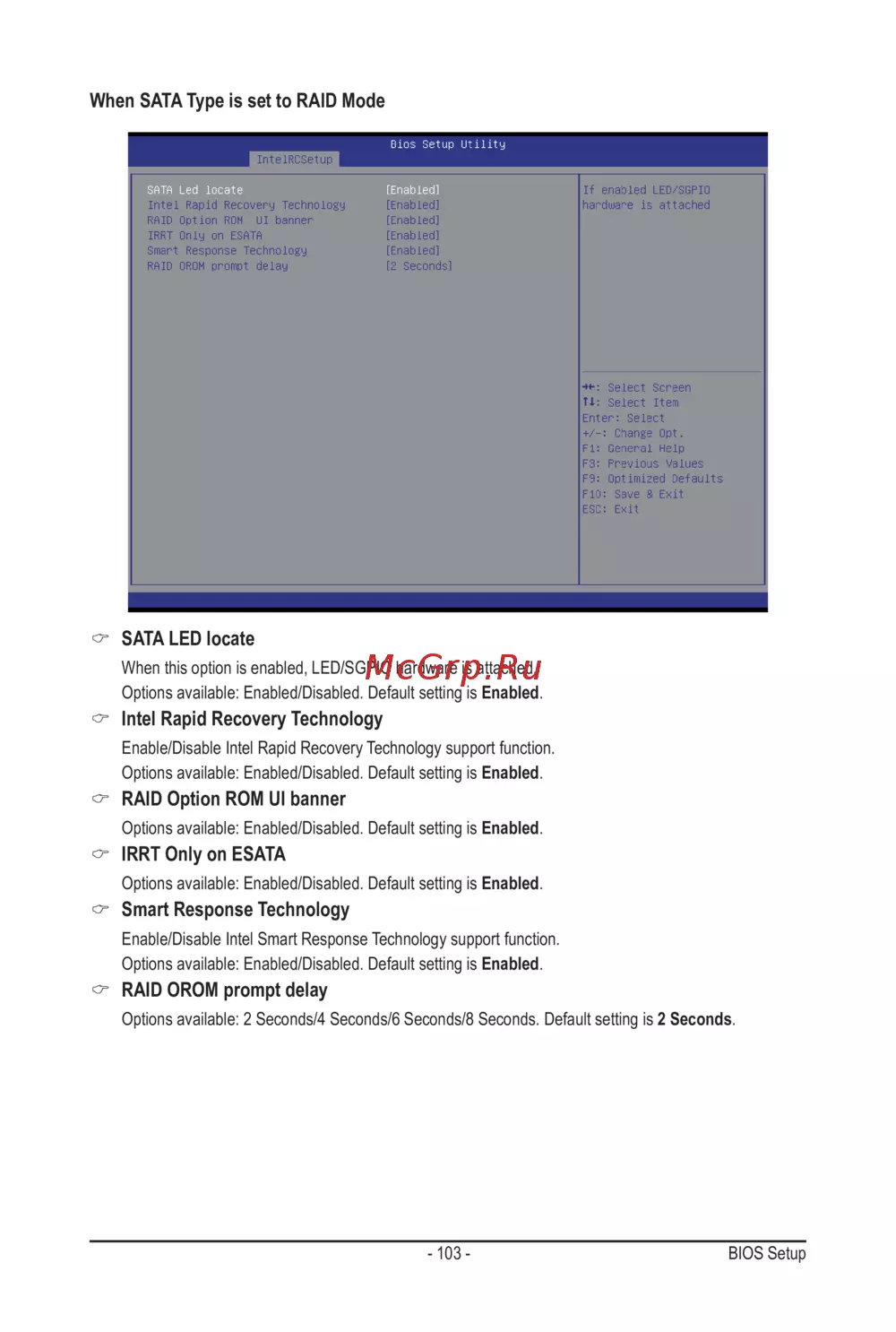

Gigabyte MW70-3S0 (rev. 1.0) [103/135] Irrt only on esata

- 103 - BIOS Setup

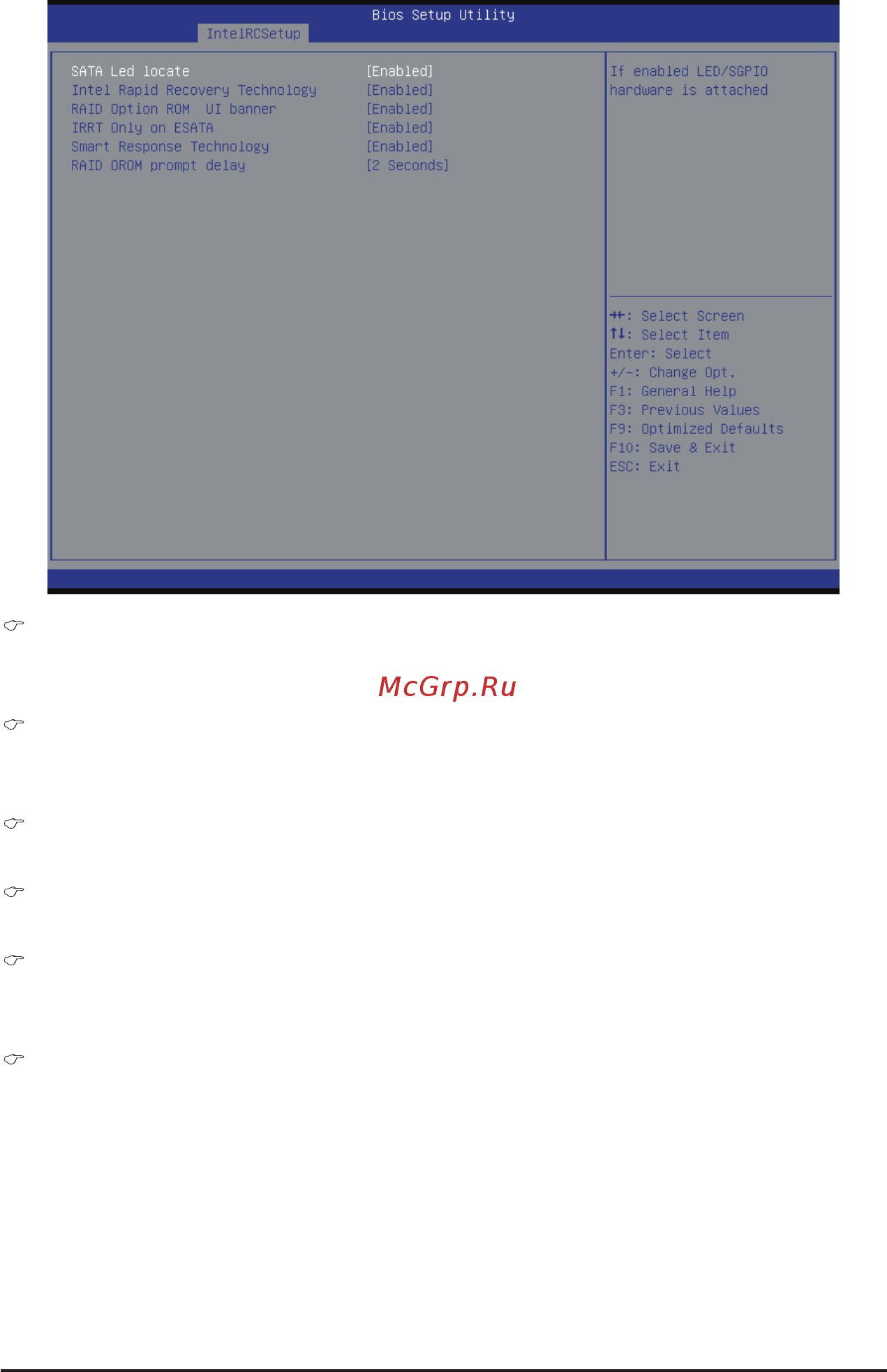

When SATA Type is set to RAID Mode

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

Intel Rapid Recovery Technology

Enable/Disable Intel Rapid Recovery Technology support function.

Options available: Enabled/Disabled. Default setting is Enabled.

RAID Option ROM UI banner

Options available: Enabled/Disabled. Default setting is Enabled.

IRRT Only on ESATA

Options available: Enabled/Disabled. Default setting is Enabled.

Smart Response Technology

Enable/Disable Intel Smart Response Technology support function.

Options available: Enabled/Disabled. Default setting is Enabled.

RAID OROM prompt delay

Options available: 2 Seconds/4 Seconds/6 Seconds/8 Seconds. Default setting is 2 Seconds.
