Gigabyte MW70-3S0 (rev. 1.0) [41/135] S3_mask s3 power on select jumper

- 41 - Hardware Installation

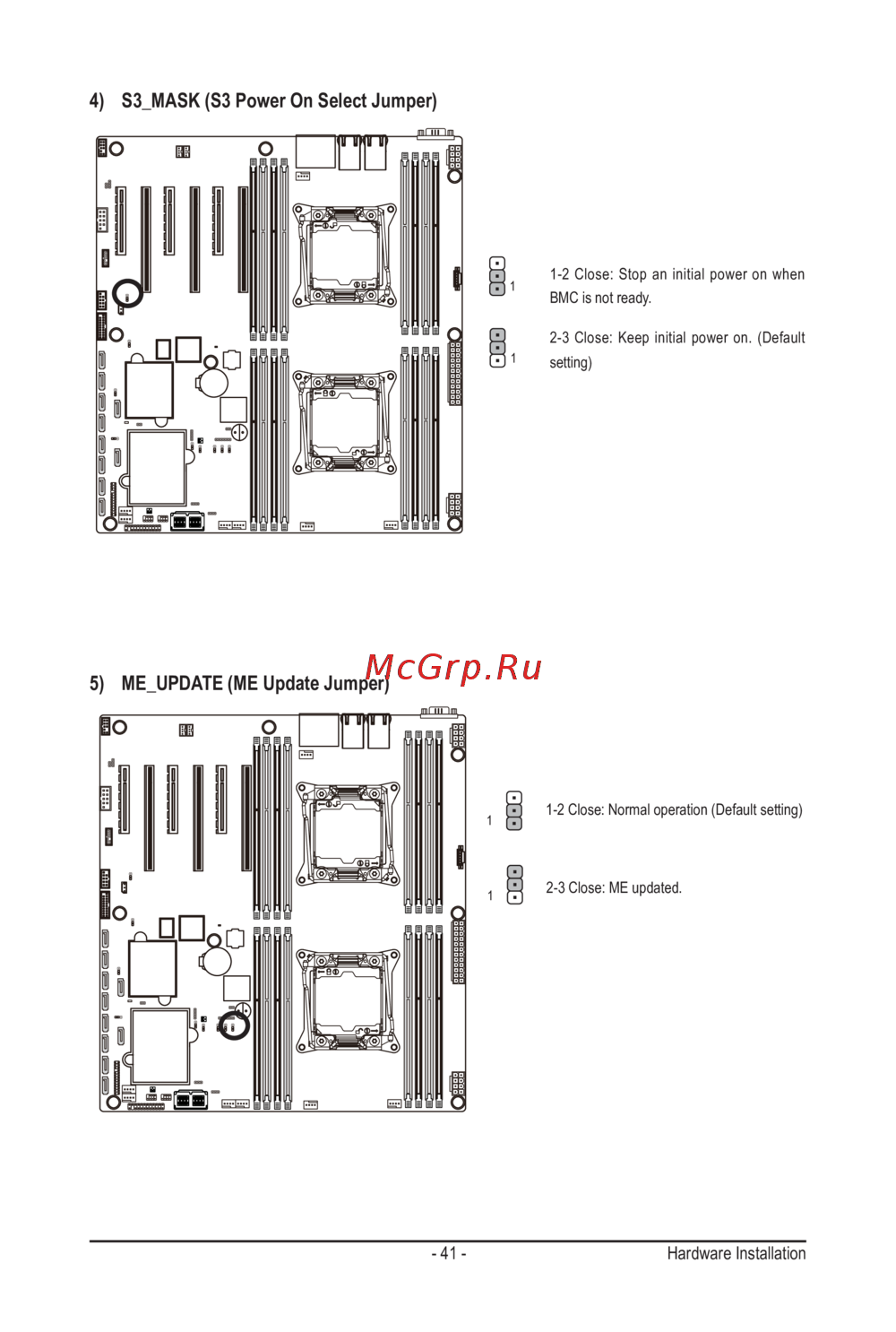

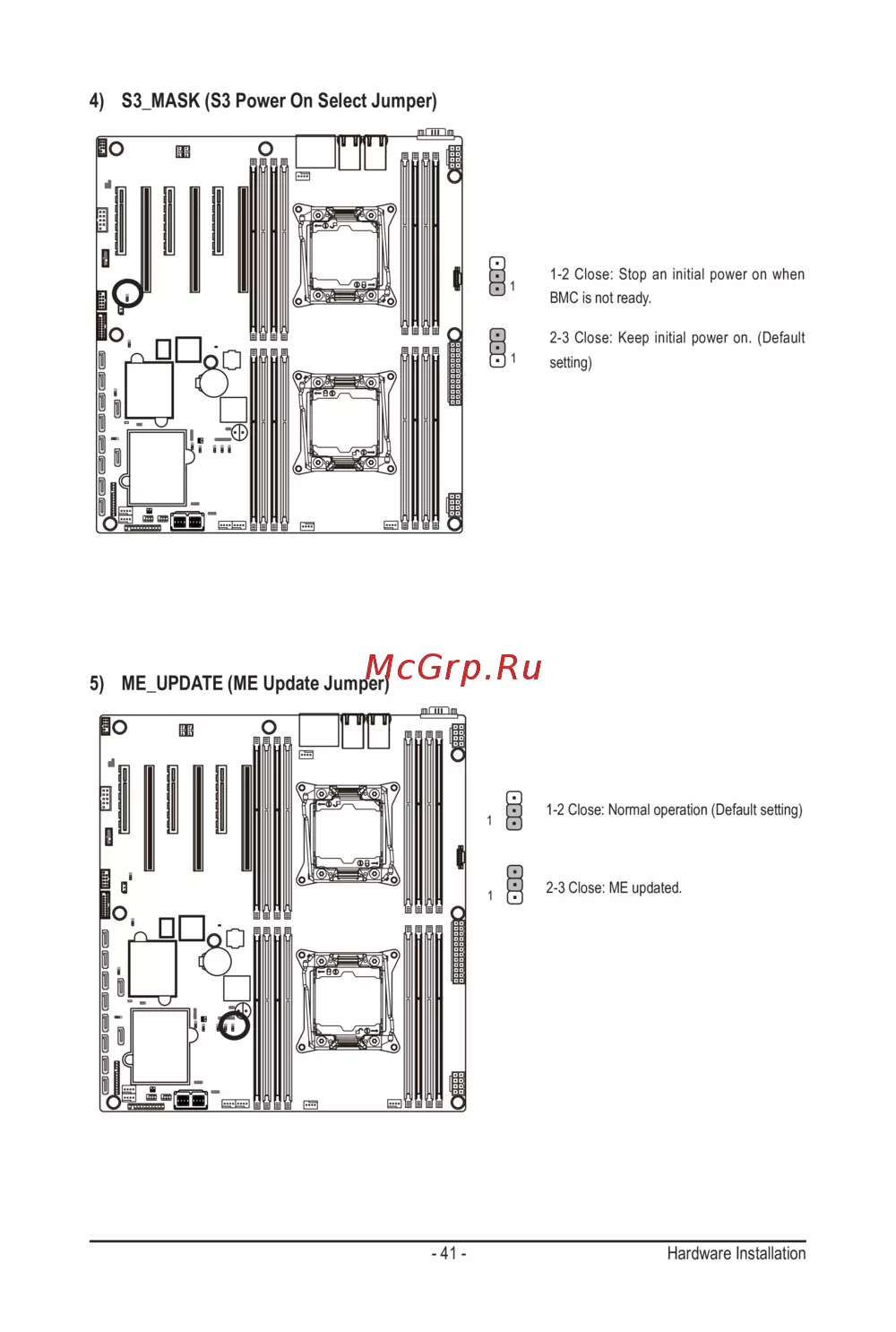

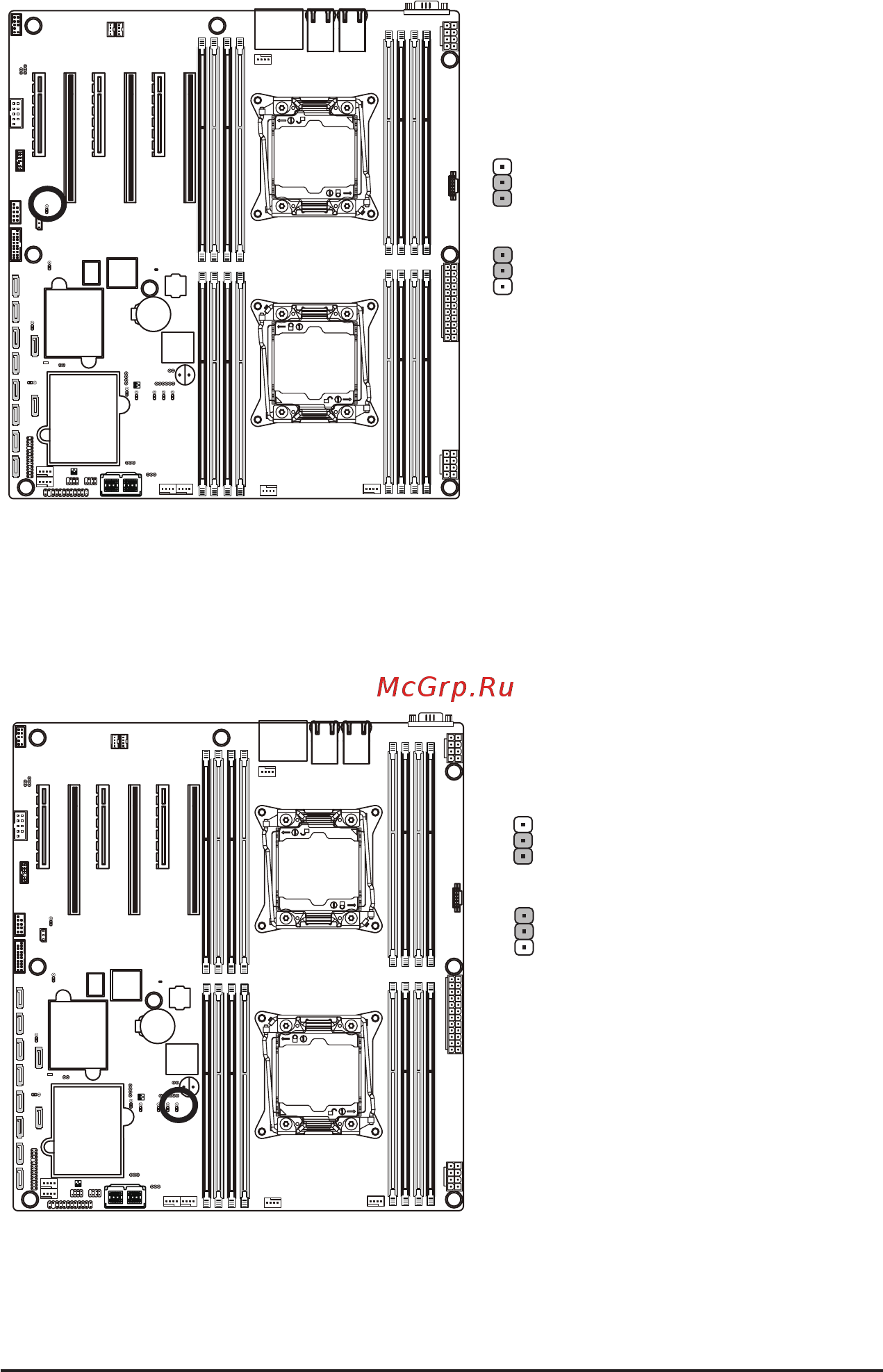

4) S3_MASK (S3 Power On Select Jumper)

2-3 Close: Keep initial power on. (Default

setting)

1-2 Close: Stop an initial power on when

BMC is not ready.

5) ME_UPDATE (ME Update Jumper)

1-2 Close: Normal operation (Default setting)

2-3 Close: ME updated.
