Gigabyte MW70-3S0 (rev. 1.0) [73/135] Logical device settings current

- 73 - BIOS Setup

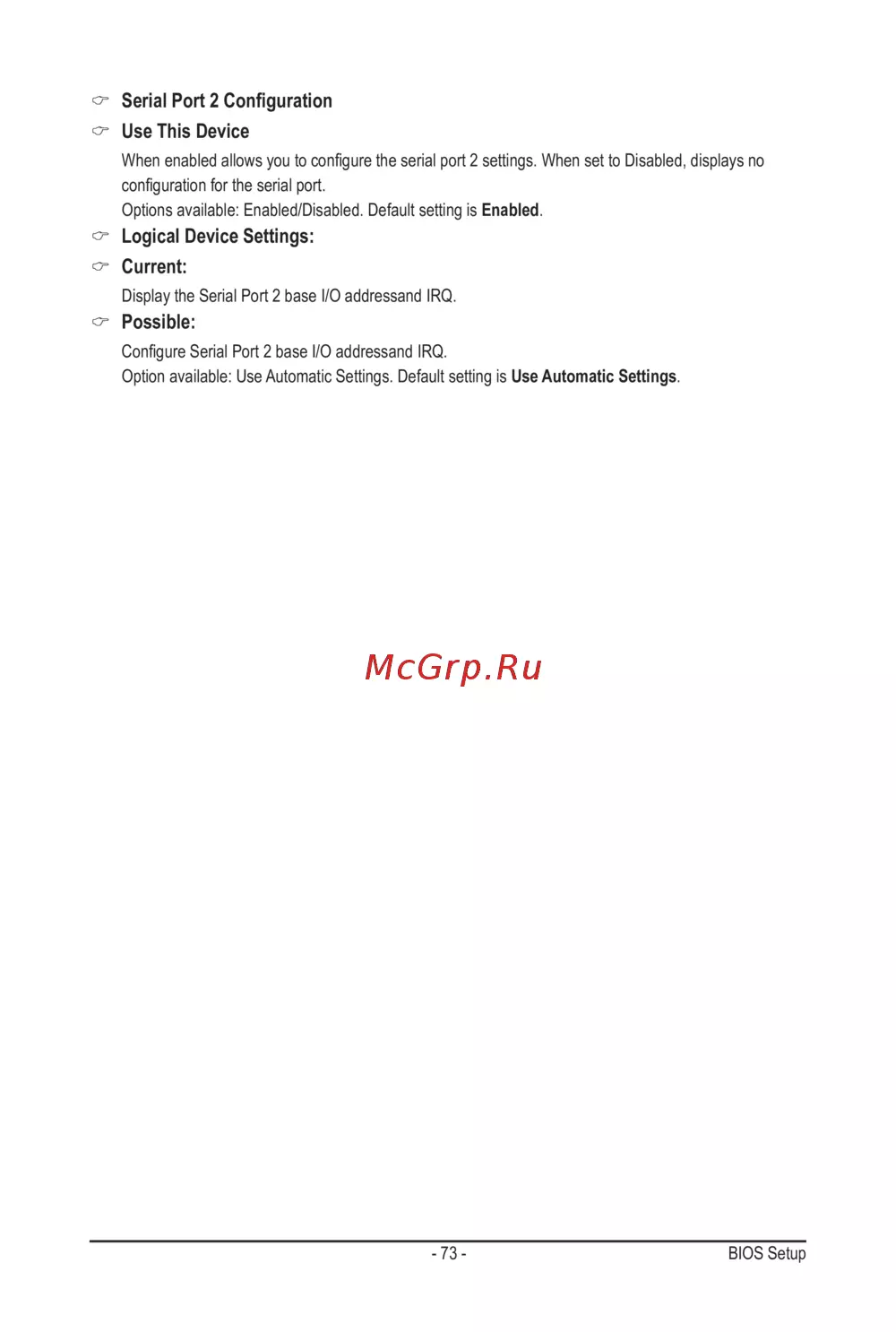

Serial Port 2 Conguration

Use This Device

 Whenenabledallowsyoutoconguretheserialport2settings.WhensettoDisabled,displaysno

 congurationfortheserialport.

Options available: Enabled/Disabled. Default setting is Enabled.

Logical Device Settings:

Current:

Display the Serial Port 2 base I/O addressand IRQ.

Possible:

 CongureSerialPort2baseI/OaddressandIRQ.

Option available: Use Automatic Settings. Default setting is Use Automatic Settings.
