- 59 - BIOS Setup

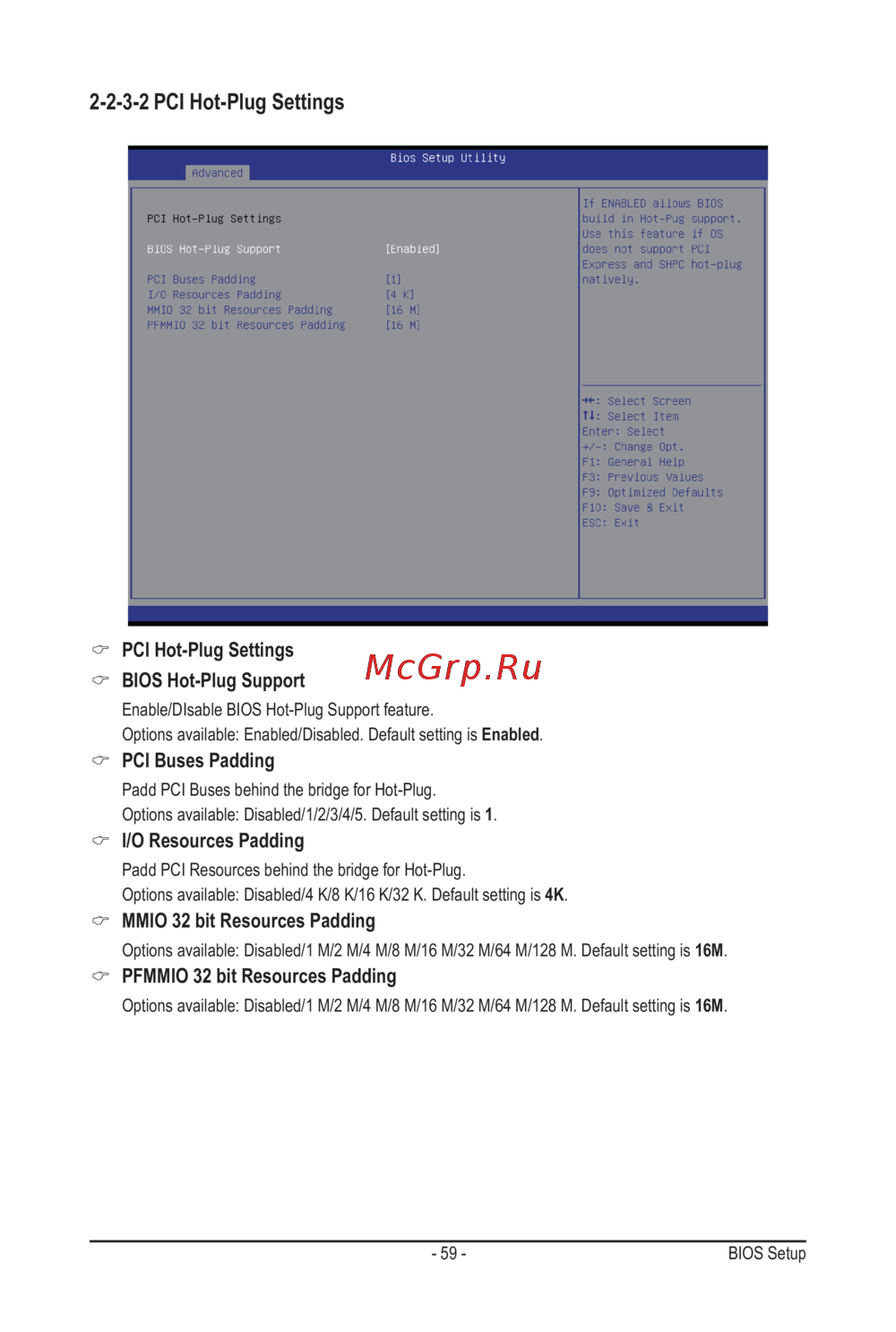

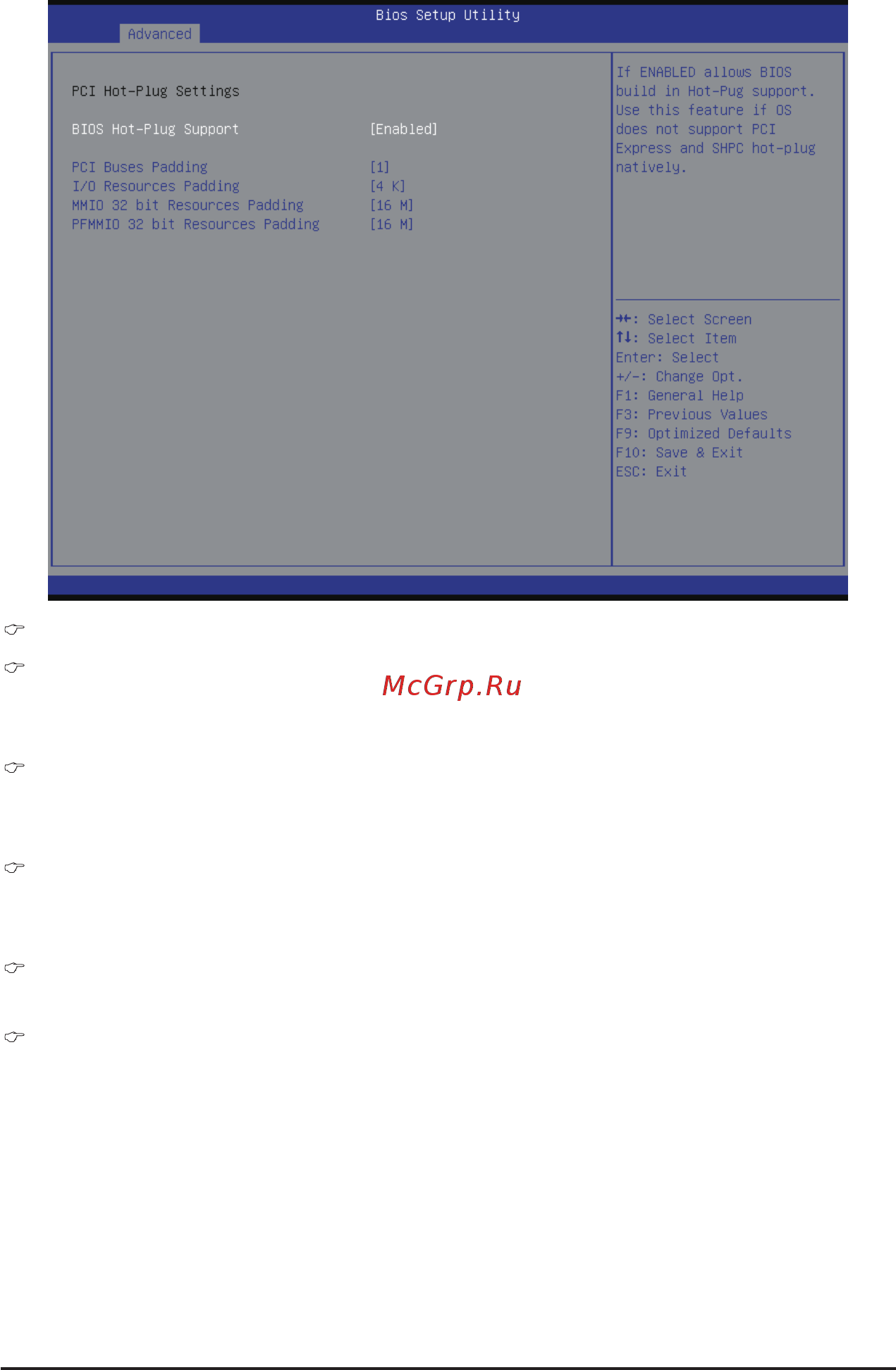

2-2-3-2 PCI Hot-Plug Settings

PCI Hot-Plug Settings

BIOS Hot-Plug Support

Enable/DIsable BIOS Hot-Plug Support feature.

Options available: Enabled/Disabled. Default setting is Enabled.

PCI Buses Padding

Padd PCI Buses behind the bridge for Hot-Plug.

Options available: Disabled/1/2/3/4/5. Default setting is 1.

I/O Resources Padding

Padd PCI Resources behind the bridge for Hot-Plug.

Options available: Disabled/4 K/8 K/16 K/32 K. Default setting is 4K.

MMIO 32 bit Resources Padding

Options available: Disabled/1 M/2 M/4 M/8 M/16 M/32 M/64 M/128 M. Default setting is 16M.

PFMMIO 32 bit Resources Padding

Options available: Disabled/1 M/2 M/4 M/8 M/16 M/32 M/64 M/128 M. Default setting is 16M.
