Gigabyte MW70-3S0 (rev. 1.0) [102/135] 3 7 2 1 sata mode options

BIOS Setup - 102 -

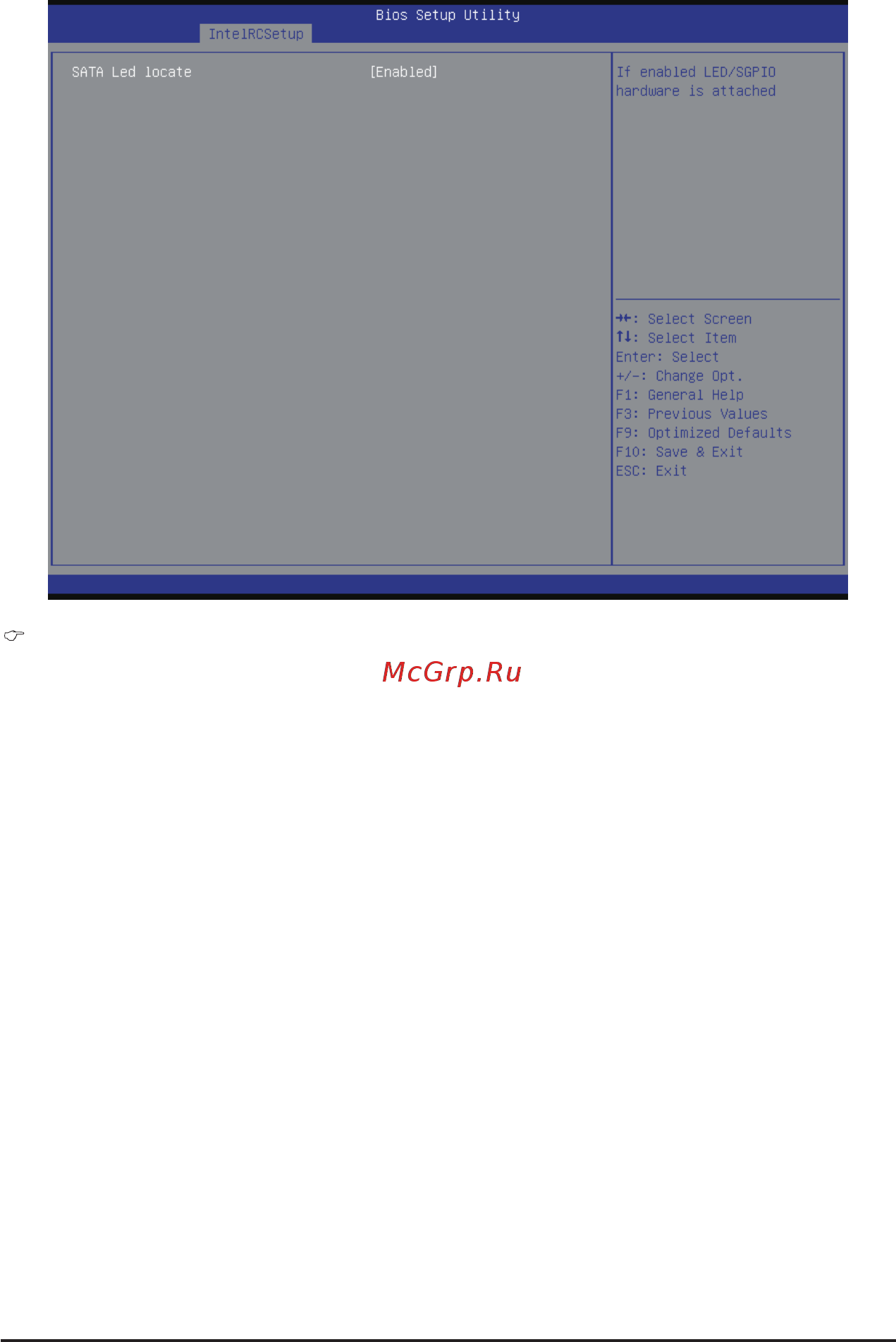

2-3-7-2-1 SATA Mode Options

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
