Gigabyte MW70-3S0 (rev. 1.0) [27/135] Msas_hd_1 mini sas hd connectors
![Gigabyte MW70-3S0 (rev. 1.0) [27/135] Msas_hd_1 mini sas hd connectors](/views2/1680010/page27/bg1b.png)
- 27 - Hardware Installation

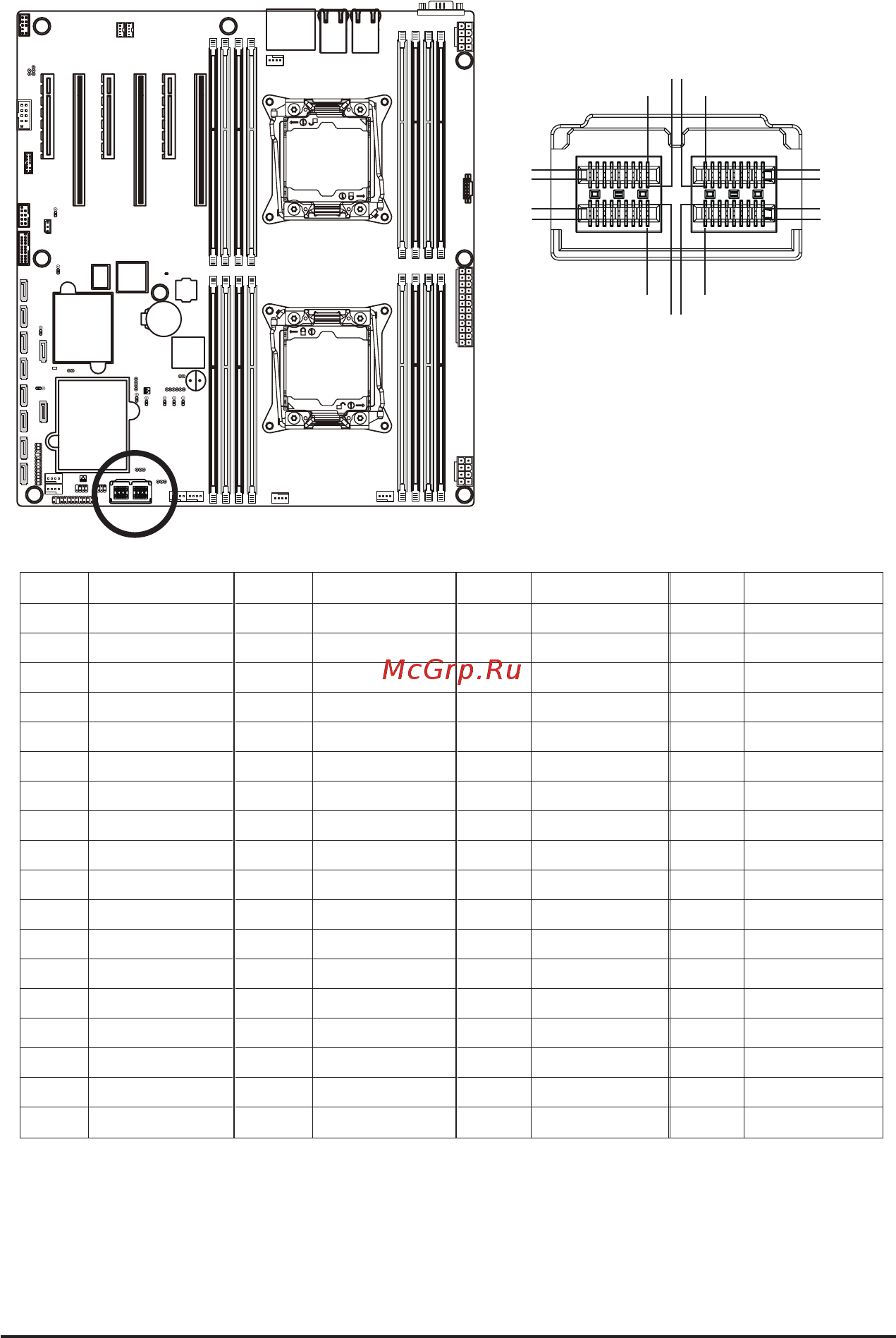

16) MSAS_HD_1 (Mini-SAS HD connectors)
Mini-SAS HD(High Density SFF-8644) is the next-generation SAS high-density and high-speed IO
interface.Mini-SASHDisintheSAS3.0standard,meetsthe12Gb/sSASspecication.
0A9
0B9
0C9
0D9
1A1
1B1
1C1
1D1
PinNo. Denition
0A1 NC
0A2 SGPIO_CLOCK0
0A3 GND
0A4 RXP1
0A5 RXN1
0A6 GND
0A7 RXP3
0A8 RXN3
0A9 GND
0B1 GND
0B2 SGPIO_LOAD0
0B3 GND
0B4 RXP0
0B5 RXN0
0B6 GND
0B7 RXP2
0B8 RXN2
0B9 GND
PinNo. Denition
0C1 GND
0C2 GND
0C3 GND
0C4 TXP1
0C5 TXN1
0C6 GND
0C7 TXP3
0C8 TXN3
0C9 GND
0D1 SGPIO_DATAIN0
0D2 NC
0D3 GND
0D4 TXP0
0D5 TXN0
0D6 GND
0D7 TXP2
0D8 TXN2
0D9 GND
PinNo. Denition
1A1 GND
1A2 SGPIO_CLOCK1
1A3 GND
1A4 RXP5
1A5 RXN5
1A6 GND
1A7 RXP7
1A8 RXN7
1A9 GND
1B1 GND
1B2 SGPIO_LOAD1
1B3 GND
1B4 RXP4
1B5 RXN4
1B6 GND
1B7 RXP6
1B8 RXN6
1B9 GND
PinNo. Denition
1C1 GND
1C2 GND
1C3 GND
1C4 TXP5
1C5 TXN5
1C6 GND
1C7 TXP7
1C8 TXN7
1C9 GND
1D1 SGPIO_DATAIN1
1D2 GND
1D3 GND
1D4 TXP4
1D5 TXN4
1D6 GND
1D7 TXP6
1D8 TXN6
1D9 GND
0D1
0C1
0B1
0A11A9
0B9
1C9
1D9
