Gigabyte MW70-3S0 (rev. 1.0) [22/135] 6 internal connectors

Hardware Installation - 22 -

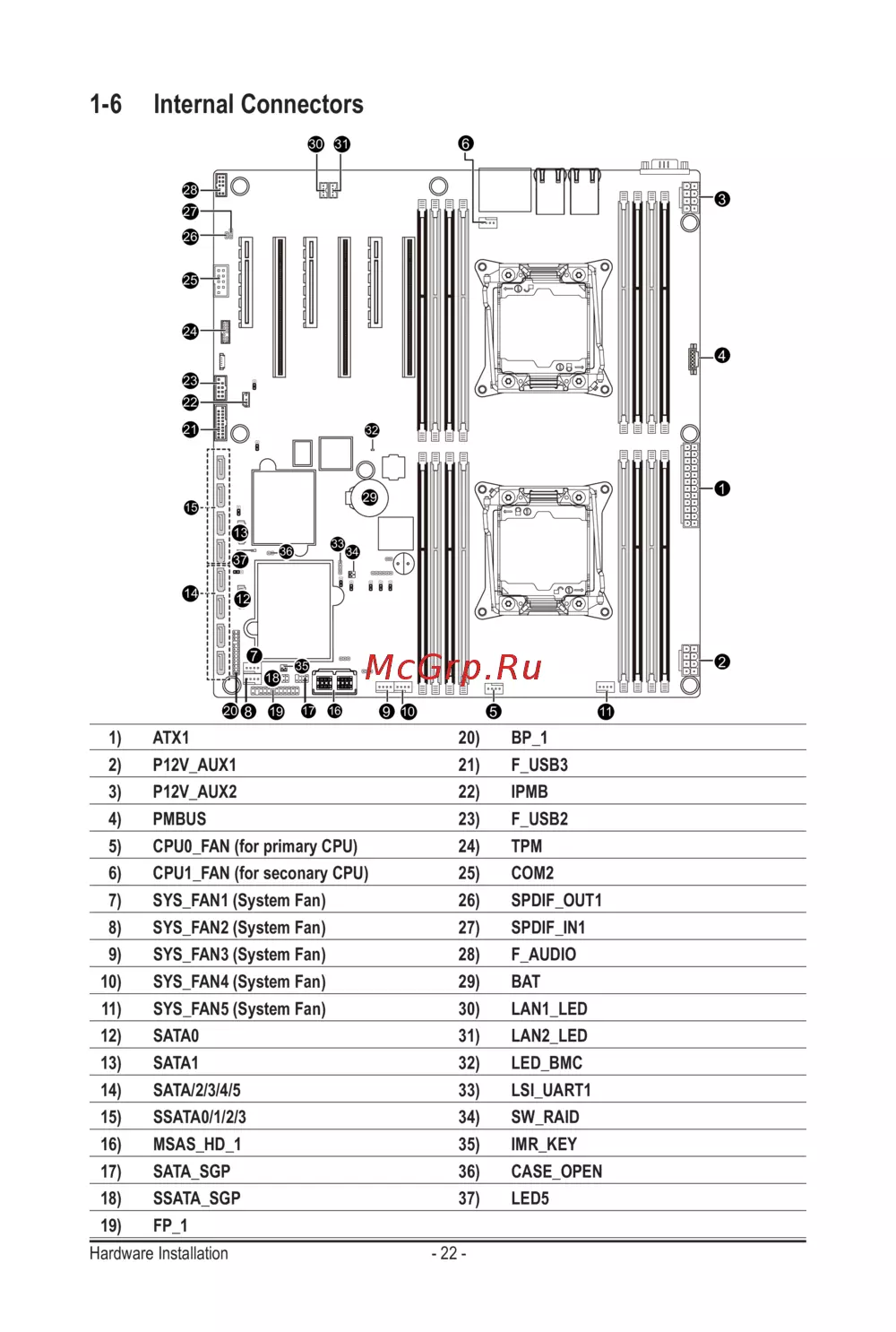

1-6 Internal Connectors

1) ATX1

2) P12V_AUX1

3) P12V_AUX2

4) PMBUS

5) CPU0_FAN (for primary CPU)

6) CPU1_FAN (for seconary CPU)

7) SYS_FAN1 (System Fan)

8) SYS_FAN2 (System Fan)

9) SYS_FAN3 (System Fan)

10) SYS_FAN4 (System Fan)

11) SYS_FAN5 (System Fan)

12) SATA0

13) SATA1

14) SATA/2/3/4/5

15) SSATA0/1/2/3

16) MSAS_HD_1

17) SATA_SGP

18) SSATA_SGP

19) FP_1

20) BP_1

21) F_USB3

22) IPMB

23) F_USB2

24) TPM

25) COM2

26) SPDIF_OUT1

27) SPDIF_IN1

28) F_AUDIO

29) BAT

30) LAN1_LED

31) LAN2_LED

32) LED_BMC

33) LSI_UART1

34) SW_RAID

35) IMR_KEY

36) CASE_OPEN

37) LED5

8 9

1110

30 31
