- 75 - BIOS Setup

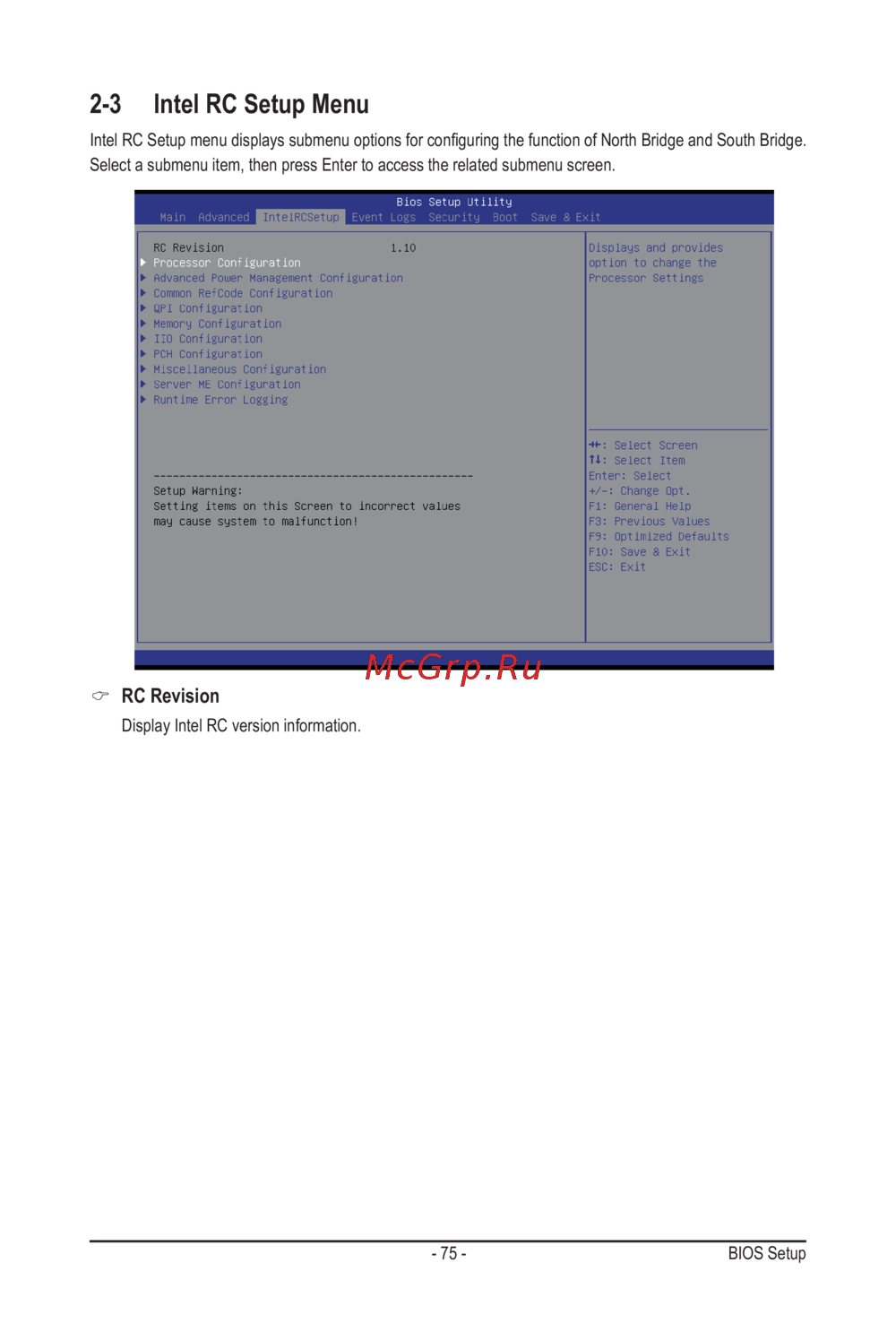

2-3 Intel RC Setup Menu

IntelRCSetupmenudisplayssubmenuoptionsforconguringthefunctionofNorthBridgeandSouthBridge.

Select a submenu item, then press Enter to access the related submenu screen.

RC Revision

Display Intel RC version information.
