Gigabyte MW70-3S0 (rev. 1.0) [93/135] 3 5 4 memory ras configuration

- 93 - BIOS Setup

2-3-5-4 Memory RAS Conguration

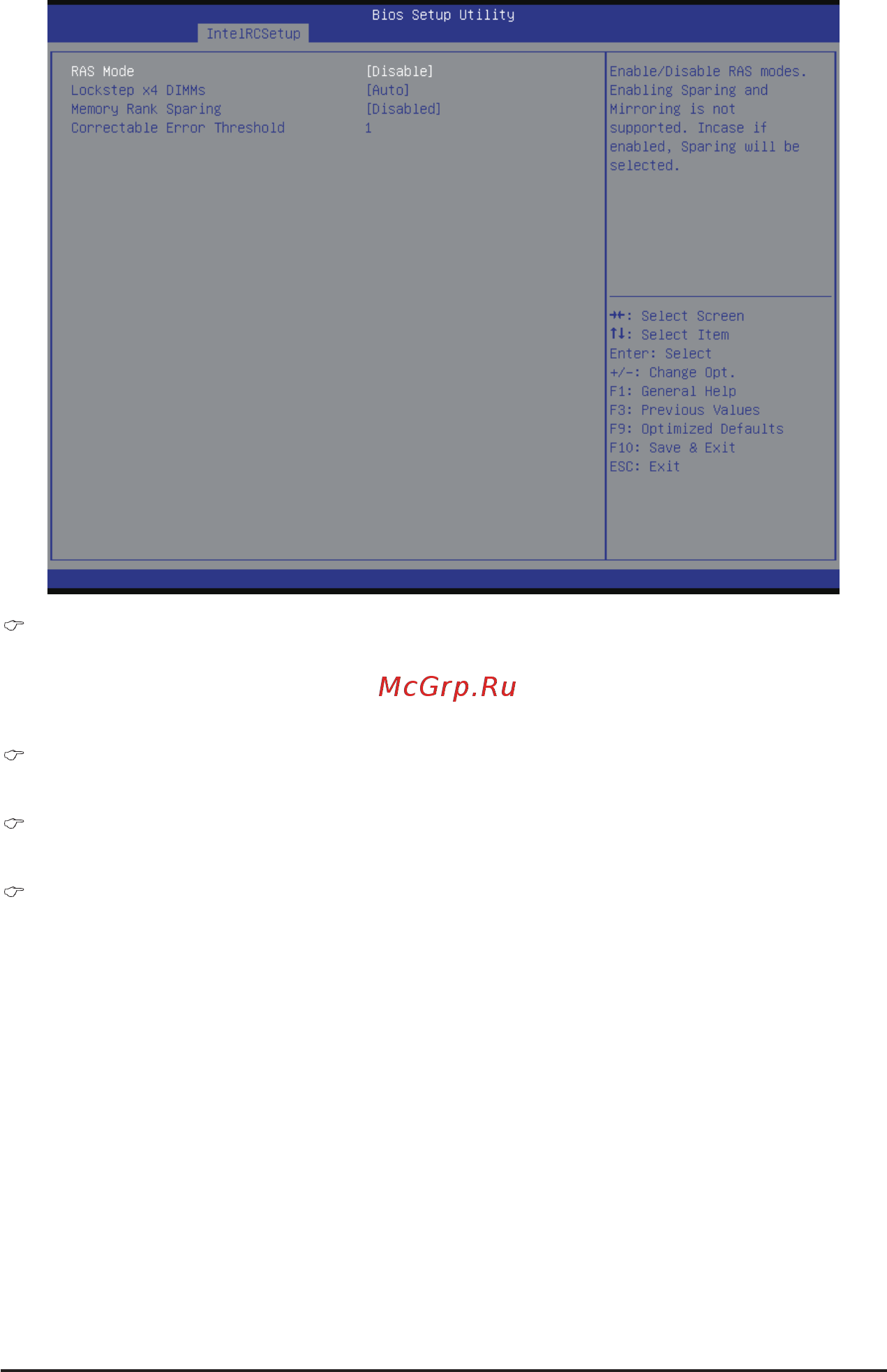

RAS Mode

Enable/Disable RAS modes. Enabling Sparing and Mirroring is not supported. When this item is set to

enabled, Sparing will be selected.

Options available: Disable/Mirror/Lockstep Mode. Default setting is Disabled.

Lockstep x4 DIMMs

Options available: Auto/Disabled/Enabled. Default setting is Auto.

Memory Rank Sparing

Options available: Disabled/Enabled. Default setting is Disabled.

Correctable Error Threshold

Press <+> / <-> keys to increase or decrease the desired values.
