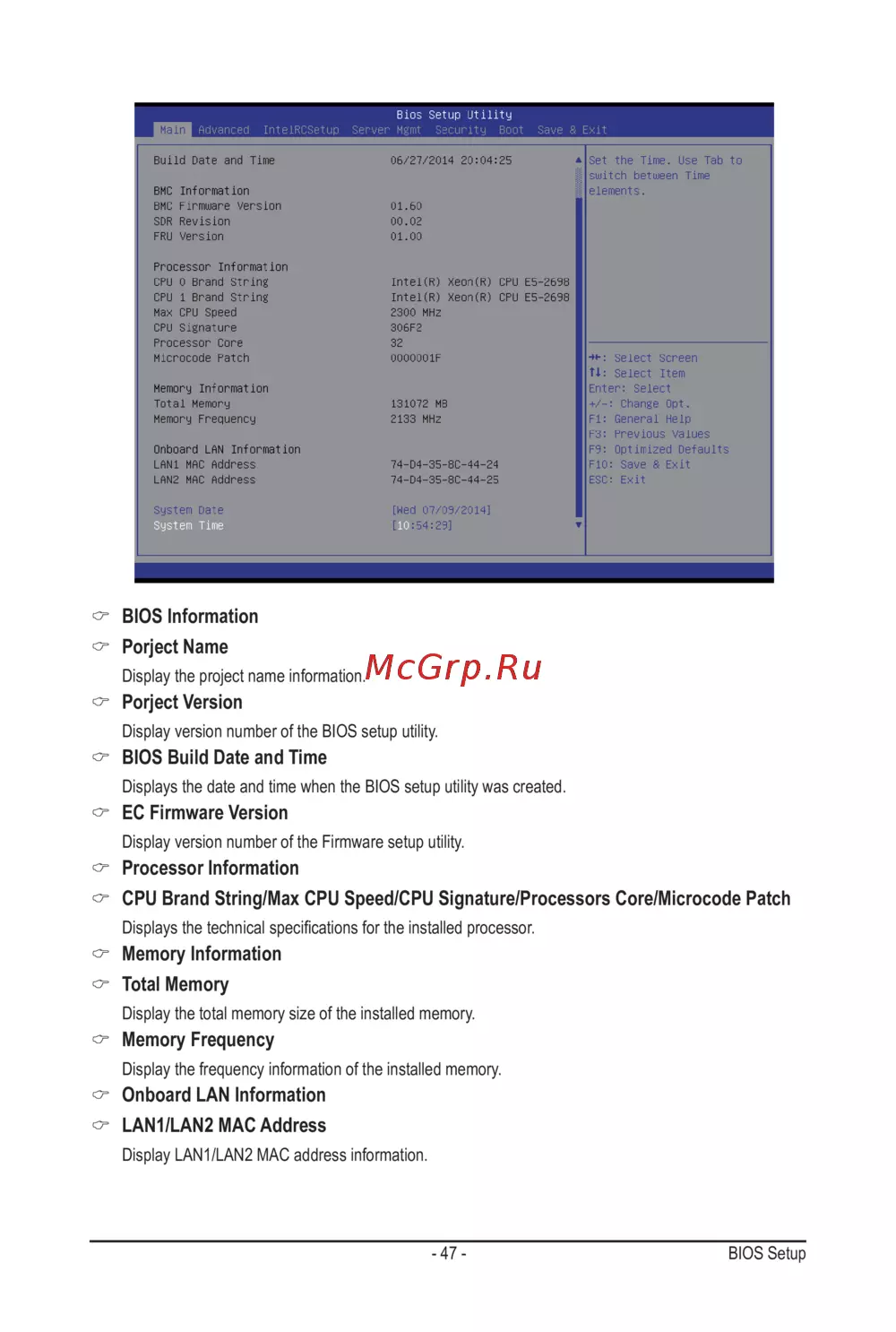

- 47 - BIOS Setup

BIOS Information

Porject Name

Display the project name information.

Porject Version

Display version number of the BIOS setup utility.

BIOS Build Date and Time

Displays the date and time when the BIOS setup utility was created.

EC Firmware Version

Display version number of the Firmware setup utility.

Processor Information

CPU Brand String/Max CPU Speed/CPU Signature/Processors Core/Microcode Patch

Displaysthetechnicalspecicationsfortheinstalledprocessor.

Memory Information

Total Memory

Display the total memory size of the installed memory.

Memory Frequency

Display the frequency information of the installed memory.

Onboard LAN Information

LAN1/LAN2 MAC Address

Display LAN1/LAN2 MAC address information.
