Gigabyte MW70-3S0 (rev. 1.0) [110/135] Azalia

BIOS Setup - 110 -

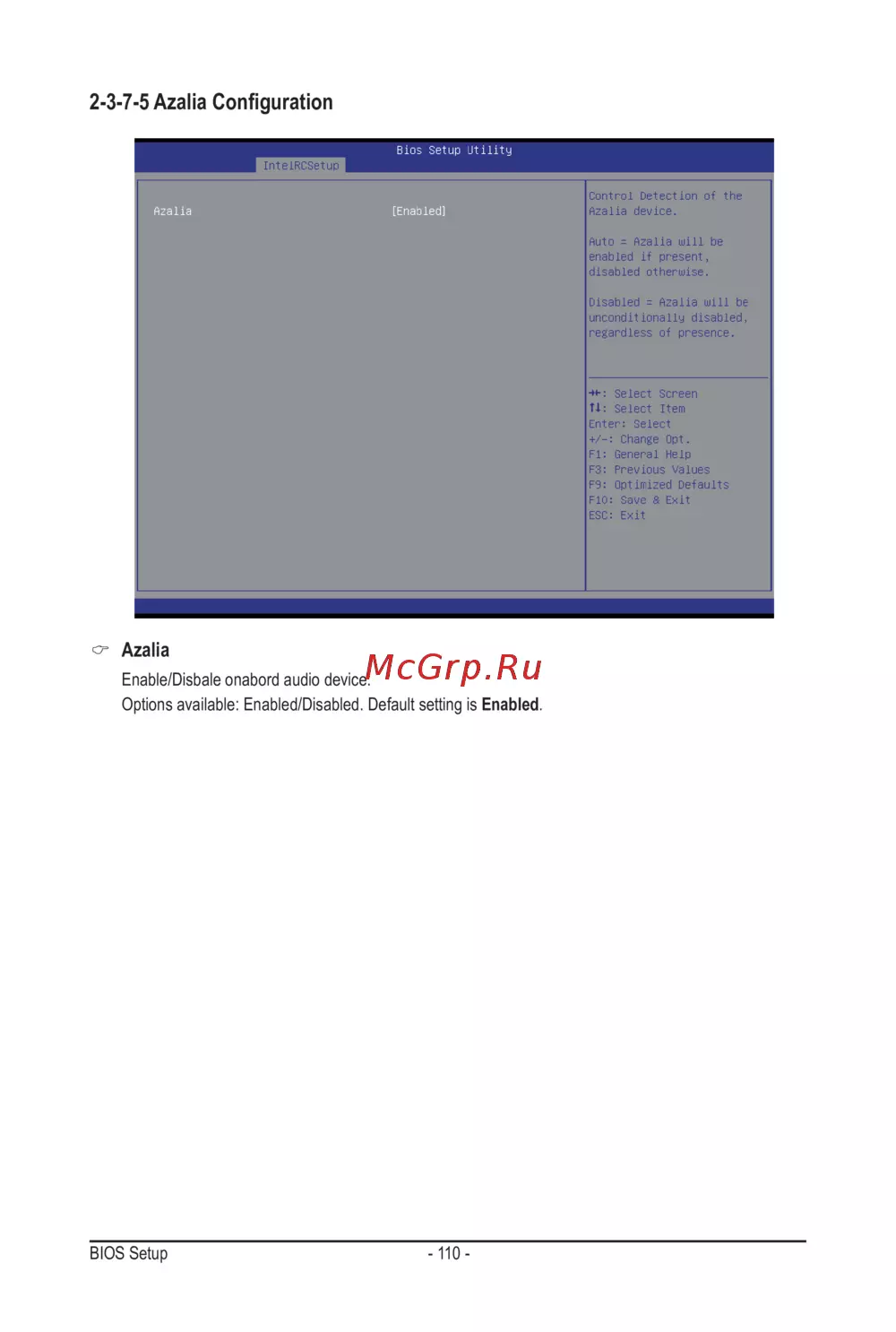

2-3-7-5 Azalia Conguration

Azalia

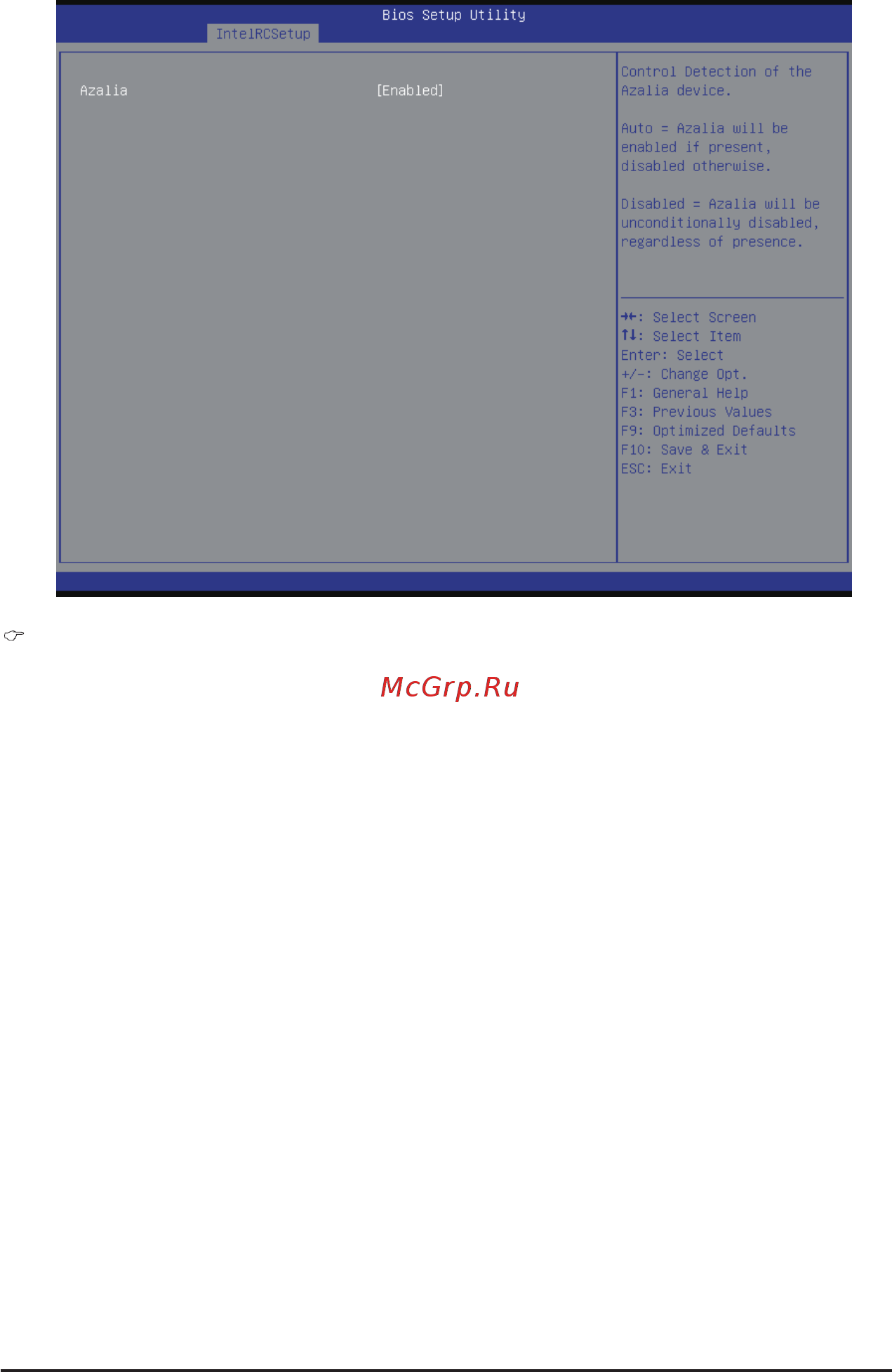

Enable/Disbale onabord audio device.

Options available: Enabled/Disabled. Default setting is Enabled.
