Gigabyte MW70-3S0 (rev. 1.0) [30/135] Bp_1 hdd back plane board hearders

Hardware Installation - 30 -

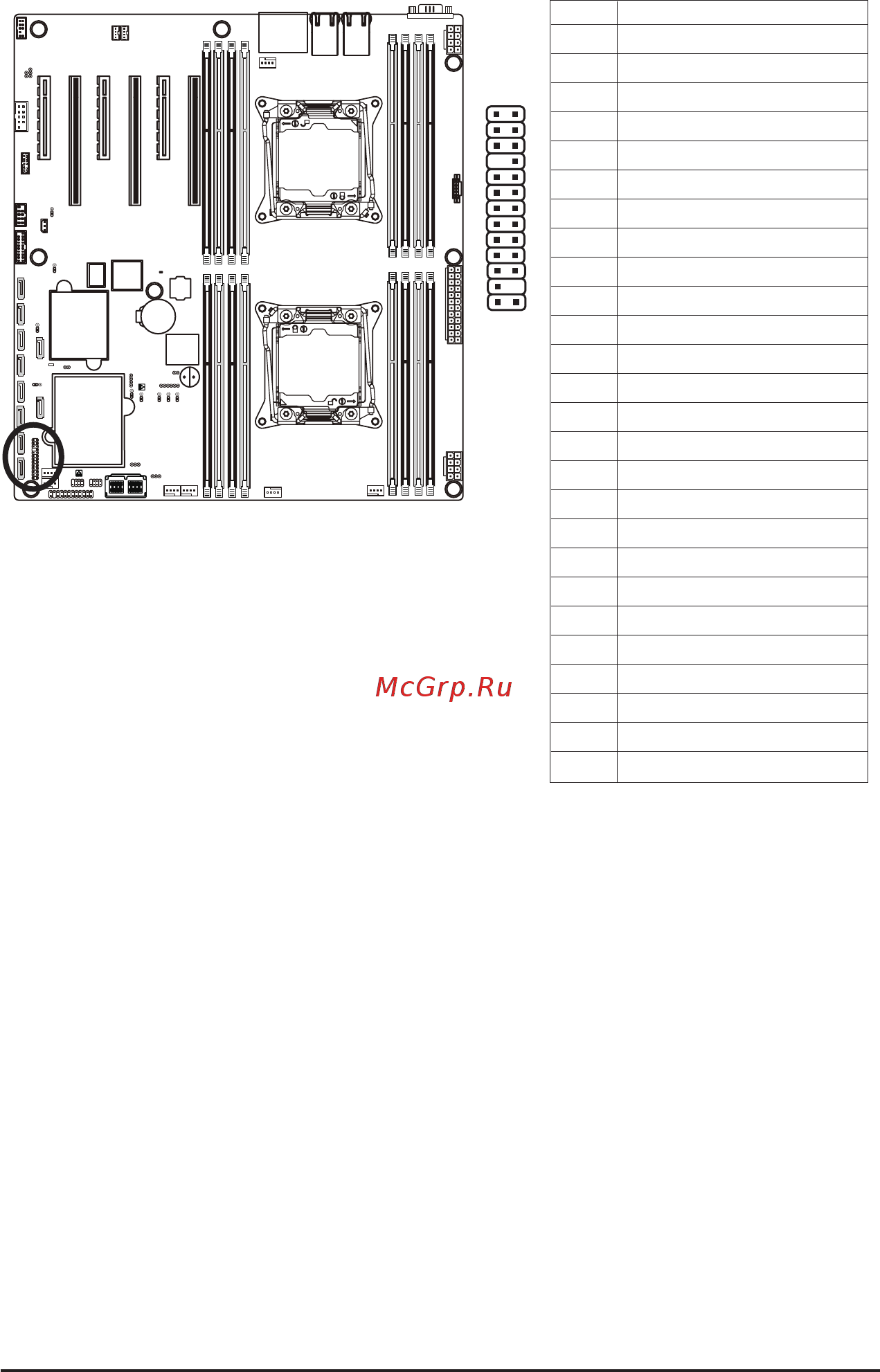

20) BP_1 (HDD Back Plane Board Hearders)

1 2

25 26

PinNo. Denition

1 BP_SGP_CLK

2 NC

3 BP_SGP_GLD

4 FAN_GATE_N

5 BP_SGP_DOUT

6 GND

7 KEY

8 Reset

9 GND

10 BP_LED_A_N

11 BP_LED_G_N

12 GND

13 BP_SGP_DIN

14 NC

15 GND

16 SMB_BP_DATA

17 GND

18 SMB_BP_CLK

19 P_3V3_AUX

20 BMC_ACK

21 P_3V3_AUX

22 BMC_REQ

23 GND

24 KEY

25 BP_PRESENSE

26 GND
